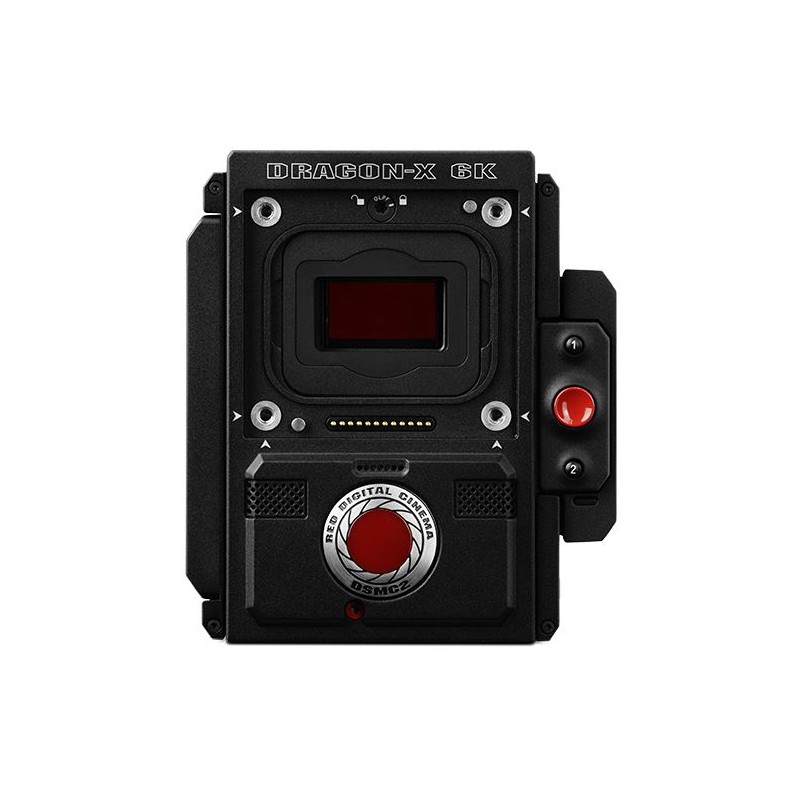

RED DSMC2 BRAIN w/ DRAGON-X 6K S35

RED cameras offer unparalleled resolution and image quality, breathing life into your footage with their pristine and natural visuals. Featuring cutting-edge MONSTRO and HELIUM sensors, they elevate the beauty of film with resolutions up to 17 times greater than HD and over 4 times more than 4K. The GEMINI sensor stands out as RED's most sensitive yet, excelling in low-light conditions and shadow detail.

The DRAGON-X sensor, equipped with IPP2 technology, embodies the industry standard, delivering stunning 6K cinematic imagery in a Super 35 format. Complementing these sensors is the DSMC2 BRAIN, boasting impressive data write speeds of 300 MB/s and the ability to record simultaneously in REDCODE RAW and Apple ProRes or Avid DNxHR/HD.

Beyond its formidable technical specifications, the DSMC2 system offers seamless integration with a range of peripherals, including cable-free options, a built-in media bay, and wireless control. Its compatibility with an expanding array of modules and accessories ensures versatility in any shooting scenario. Moreover, with interchangeable OLPFs and lens mounts, the DSMC2 puts full creative control in your hands.

It's important to note that the DSMC2 BRAIN does not feature a DC IN power port on its own; however, a port expander or power module is necessary to power the camera effectively. RED recommends essential components like an expander, battery, lens mount, display, and media for constructing a functional camera setup.

Additionally, each DSMC2 BRAIN comes with a standard OLPF, with the option to purchase a 2-pack for specific shooting environments like Skin Tone-Highlight and Low Light scenarios.

Included in the package are:

• DSMC2 BRAIN with selected sensor
• DSMC VV Al PL Mount 2.0 (MONSTRO Only)
• DSMC Front Body Cap (HELIUM, GEMINI, & DRAGON-X Only)
• DSMC2 VV Standard OLPF (MONSTRO Only)
• DSMC2 S35 Standard OLPF (HELIUM, GEMINI, DRAGON-X Only)
• DSMC AC Power Adaptor
• 2-Year Standard Warranty

Specifications:

Sensor Type: DRAGON-X 19.4 Megapixel CMOS

Effective Pixels: 6144 × 3160

Sensor Size: 30.7 mm x 15.8 mm (Diagonal: 34.5 mm)

Dynamic Range: 16.5+ stops

Max Frame Rates:

75 fps at 6K Full Format (6144 x 3160), 100 fps at 6K 2.4:1 (6144 x 2592)

96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)

120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)

150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)

240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

Max Data Rates:

Up to 300 MB/s using RED MINI-MAG® (480GB, 512GB, 960GB & 1TB)

Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

Playback Frame Rates (Project Timebase): 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps, all resolutions

REDCODE Settings:

3:1 REDCODE at 6K Full Format (6144 x 3160) and 24 fps

Range from 2:1 up to 22:11

7:1 REDCODE at 6K Full Format (6144 x 3160) and 60 fps

2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps

6:1 REDCODE at 4K Full Format (4096 x 2160) and 120 fps

REDCODE RAW:

6K Full Format (6144 x 3160), 2:1, 2.4:1, 16:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x

Acquisition Formats:

Various formats including 5K, 4K, 3K, and 2K Full Format

Apple ProRes:

Various ProRes formats supported up to 4K

Avid Codecs:

DNxHR and DNxHD formats supported

Construction: Aluminum Alloy

Weight: 3.35 lbs (BRAIN with Integrated Media Bay)

DC IN Power Input: 11.5 V DC to 17 V DC (requires an expander with DC-IN)

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: –20°C to 50°C (–4°F to 122°F)

Relative Humidity: 0% to 85% non-condensing

Color Management: Supports various 3D LUTs and user programmable shaper 1D LUTs

Audio: Integrated dual channel digital stereo microphones, optional additional channels available

Remote Control: Integrated R.C.P. WiFi antenna, Ethernet, RS232, and GPI Trigger supported

Monitor Outputs: 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module, various resolutions supported

Monitor Options: Various monitor options compatible with DSMC2 system

REDCINE-X PRO: Various delivery formats supported

Delivery Formats: Various delivery formats supported

Video Editing Software Compatibility: Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

Note: Specifications are subject to change. Refer to the relevant operation guides for detailed information on acquisition formats and REDCODE compression settings. Third-party non-linear editing (NLE) applications may have limited compatibility with R3D files.
