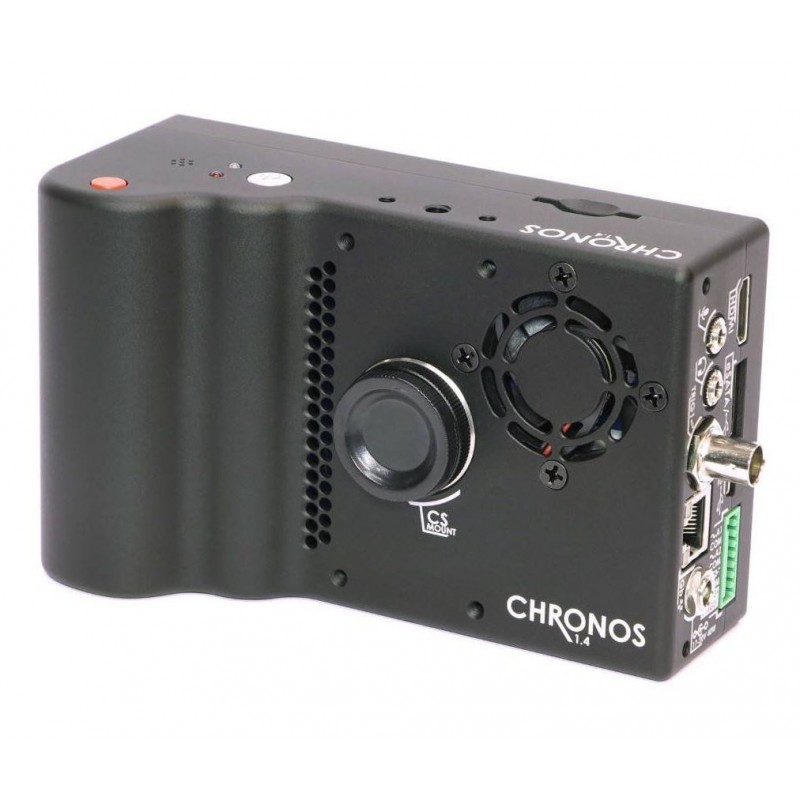

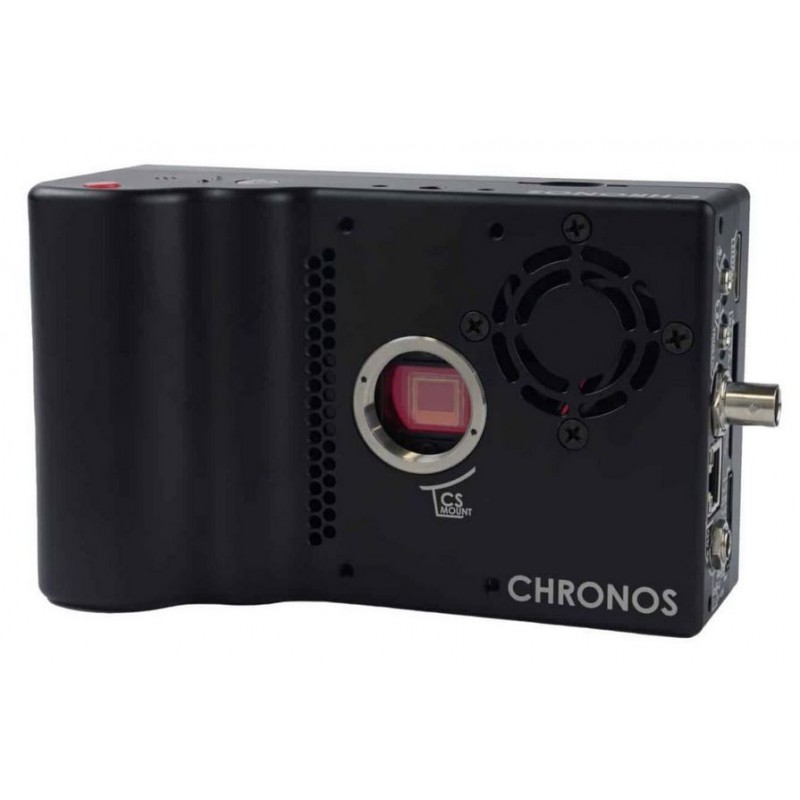

Kron Technologies Chronos 1.4 32GB Colour Sensor (SKU CR14-1.1-32C-1)

Kron Technologies Chronos 1.4 32GB Colour Sensor (SKU CR14-1.1-32C-1)

Main Features
High Resolution: Captures video at 1280×1024 resolution with up to 1,069 frames per second at maximum resolution.

High Frame Rate: Uses a 2/3″ image sensor capable of recording up to 40,413 FPS at reduced resolutions.

All-in-One Design: Fully standalone operation with a built-in 5-inch touchscreen and battery, allowing portable, untethered use.

Internal Storage: Available with 8GB, 16GB, or 32GB RAM, enabling recording durations of approximately 4, 8, or 16 seconds respectively at maximum resolution. Footage can be saved via an SD card slot.

Recording Methods: Supports multiple modes including Normal, Segmented, Gated Burst, and Live Slow Motion for flexible capture in dynamic scenarios.

Lens Compatibility: Supports Nikon F, Canon EF, and C mounts, which can be swapped in the field.

Colour and Monochrome Options: Offers ISO sensitivity ranges of 320–5120 (colour) and 740–11840 (monochrome), making it suitable for varying lighting conditions.

Trigger Options: Equipped with I/O ports for synchronization and remote triggering via cable, sound, or web-based triggers.

Focus Assistance: Includes focus peaking for edge highlighting and zebra lines to help adjust exposure.

API Integration: Comes with an open-source, REST-based API for custom software integration and control.

Package Contents

• Chronos 1.4 camera body
• CS-C adapter ring
• C mount dust cap
• 2mm Allen wrench
• 32GB SanDisk SD card
• EN-EL4a battery
• 19V 40W AC adapter
• Region-specific AC power cord
• User manual

Specifications

Imaging: 1280×1024 at 1069 FPS
Memory Options: 8GB, 16GB, or 32GB
Recording Time: 4 seconds (8GB), 8 seconds (16GB), 16 seconds (32GB) at full resolution
Lens Mount: CS/C mount included (optional mounts available)
Back Focus: Adjustable in the field
IR Filter: 650nm, removable, size 24 × 16 × 1.1 mm
Display: 5-inch 800×480 capacitive touchscreen with 1000-nit brightness for daylight visibility
Body Construction: Anodized CNC-machined aluminum
Cooling System: Active cooling with variable-speed fan (fan-off option available)
Dimensions: 155 × 96 × 67.3 mm (without lens)
Weight: 1.06 kg (without lens)

Video Formats
H.264: MP4 files up to 60 Mbps
CinemaDNG RAW: Standard Adobe RAW format
TIFF: RAW TIFF files with timestamps
Storage Options: SD card, USB, SSD, or network drives (SMB/NFS)

Image Sensor Details
Resolution: Up to 1280×1024
Speed: 1.4 gigapixels per second
Sensor Size: 8.45 × 6.76 mm (2/3″ format, 1.3 MP, 3.9x crop factor)
Pixel Size: 6.6 µm
Sensitivity: ISO 320–5120 (colour), ISO 740–11840 (monochrome)
Shutter: Electronic global shutter from 1/FPS down to 1 microsecond
Dynamic Range: 9.4 stops (56.7 dB)
Bit Depth: 12-bit

Battery
Type: EN-EL4a
Runtime: Approximately 1.5 hours of recording
Charging Time: About 2 hours to reach 80% using in-camera charger

Inputs and Outputs
Power Input: 17–20V, 40W (barrel jack, positive tip)
Network: Gigabit Ethernet
Trigger Ports: Two inputs and frame strobe outputs via BNC and auxiliary connector, adjustable threshold from 0 to 6.6V, electrically isolated input
Video Output: HDMI at 720p or 1080p at 60 FPS (video only)
USB: Type A (host) and micro-B (device)
SATA: eSATA 3Gbps for 2.5” SSD with 5V power

Trigger Modes
End Trigger: Records until a defined delay after activation
Toggle: Starts and stops recording with a button press
Exposure Trigger: External signal controls frame rate synchronization
Shutter Gating: External signal controls both exposure and frame rate
Frame Sync Output: Provides signal indicating frame rate and exposure

Trigger Ports
BNC: Female connector
AUX: 8-pin terminal block with isolated trigger input

Software and Control
Control Interface: Accessible via web page or REST interface using USB or Ethernet
Streaming: Supports live and playback streaming via RTSP and compatible players
API: Open-source HTTP REST interface

Recording Modes
Normal Mode: Continuous recording into a buffer until triggered, then review and save
Segmented Mode: Memory divided into segments for multiple recordings
Gated Burst: Records frames only while trigger is active
Live Slow Motion: Records short clips and loops them in slow motion

Normal Speed Recording
Continuous Mode: Records standard video up to 60 FPS directly to MP4 files on external storage

Assistive Features
Focus Aid: Highlights sharp edges for easier focusing
Zebra Patterns: Indicates overexposed areas
Viewfinder Zoom: Enlarges image for precise focus
Overlay: Displays frame and timing information on video

Environmental Conditions
Operating Temperature: From -20°C to +40°C (-4°F to +104°F)
