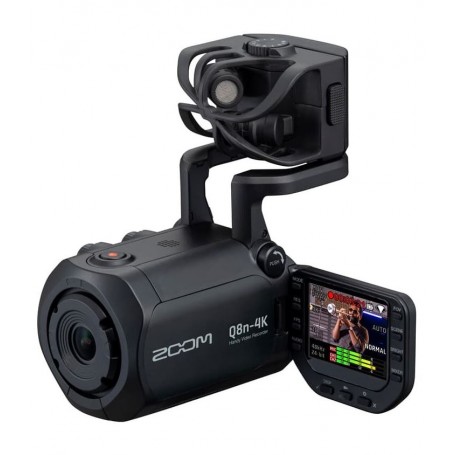

Zoom Q8n-4K Handy Video Recorder

The Zoom Q8n-4K Handy Video Recorder is a versatile tool designed for content creators, indie filmmakers, and musicians who prioritize portability without compromising on quality. With its 4K video capabilities, 4-track audio recording, flip-out color LCD for selfie-style movies, and optional app-based remote control, it offers an array of features to meet diverse production needs.

Enhanced Features:

Compared to its predecessor, the Q8n-4K model boasts several upgrades in both design and functionality:

• UHD 4K video resolution at 30 fps (compared to 2K on the Q8)
• Wider f/2.8 aperture and 150° wide-angle lens (f/2.0 / 160° on the Q8)
• Rear screen that flips out for selfie-style recording
• Redesigned user interface for improved ease of use
• Support for microSDXC cards up to 512GB (compared to 128GB maximum on the Q8)
• App-based remote control capability via iOS/Android devices (requires Zoom BTA-1 Bluetooth adapter)

4K Recording Flexibility:

While 4K recording is a standout feature, the Q8n-4K also offers the flexibility to record at lower resolutions for smaller file sizes. With support for microSDXC cards up to 512GB, storage concerns are minimized.

Wide-Angle Lens and Lighting Presets:

The 150° lens and five field of view settings enable versatile shooting, from capturing dynamic stage performances to sweeping outdoor landscapes. Adjustable brightness and lighting presets (Indoor, Outdoor, Nighttime, Concert, and Auto) enhance video quality in various environments.

High-Quality Audio Recording:

The Q8n-4K delivers professional-grade audio recording, supporting WAV format up to 24-bit, 96 kHz resolution. Dual XLR mic/line inputs with phantom power accommodate external mics or mixing console outputs. The XYQ-8n capsule provides true stereo imaging, while additional Zoom mic capsules are available for specialized recording needs.

Monitoring and Connectivity:

A headphone jack allows real-time audio monitoring, ensuring clean sound capture. The recorder can also function as a USB device, serving as a webcam or audio interface. Micro-HDMI output facilitates video monitoring on external displays.

Powering and Mounting Options:

The Q8n-4K offers multiple powering methods, including a rechargeable Li-ion battery, USB power, or an optional AC adapter. With a 1/4"-20 thread, it can be easily mounted on tripods or gimbals for stable recording.

Overall, the Zoom Q8n-4K Handy Video Recorder delivers professional-grade performance in a compact, user-friendly package, making it an ideal choice for on-the-go content creation.

Included:

• Zoom Q8n-4K Handy Video Recorder
• XYQ-8n Stereo X/Y Microphone Capsule
• Foam Windscreen
• Zoom BT-03 Rechargeable Battery for Q8
• USB Type-C to USB Type-A Cable
• Lens Cover
• Lens Hood

Specifications:

Camera:

Sensor Type: 1/2.3"-Type CMOS Sensor

Sensor Resolution: Effective: 16 Megapixel

Optics:

Maximum Aperture: f/2.8

Fixed Focus: Yes

Angle of View: 150°

Zoom: None

Built-In ND Filters: None

Recording:

System: NTSC/PAL

Media/Memory Card Slot: Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

Video Format:

3840 x 2160 at 24/25/30 fps (H.264/AVC, MPEG-4)

1920 x 1080 at 24/25/30/50/60 fps (MOV via H.264/AVC, MPEG-4)

1280 x 720 at 24/25/30/50/60 fps (MOV via H.264/AVC, MPEG-4)

Microphone Recording Angle: 120°

Channels: 4.0-Channel

Audio Format: WAV

Sampling Frequency:

WAV: 96.0 kHz

WAV: 48.0 kHz

WAV: 44.1 kHz

Display:

Display Type: Non-Articulating Flip-Out LCD

Size: 2"

Resolution: 320 x 240

Exposure Control:

Self-Timer: 3, 5, 10 Sec

Remote Control: Optional

Features:

Scene Modes: Preset: Yes

Built-In Mic: Yes

Built-In Speaker: Yes

Built-In Light/Flash:

Light - No

Flash - No

Accessory Shoe: None

Tripod Mount: 1/4" - 20

Input/Output Connectors:

Video I/O: 1 x Micro-HDMI Output

Audio I/O:

2 x 3-Pin XLR Mic/Line (+48 V Phantom Power) Input

1 x 3.5 mm TRS Stereo Headphone/Line Output

Power I/O:

1 x USB Type-C Input

1 x USB Type-C Data/Video Output (Shared with Power Input)

1 x USB Type-A Control Input

Wireless: Bluetooth Control *Adapter Required

General:

Battery: Rechargeable Lithium-Ion Battery Pack, 3.7-4.2 VDC, 1600 mAh

Max Runtime: 2.5 Hours per Charge

Charging Method:

AC Adapter

USB

Charging Time: 4.5 Hours

Power Adapter: 5 VDC

Dimensions (W x H x D):

2.7 x 2.6 x 6.3" / 68.0 x 65.0 x 159.0 mm Mic Arm Lowered

2.7 x 5.3 x 5.3" / 68.0 x 135.0 x 134.0 mm Mic Arm Raised

Weight: 12.9 oz / 367 g (Body with Battery)
