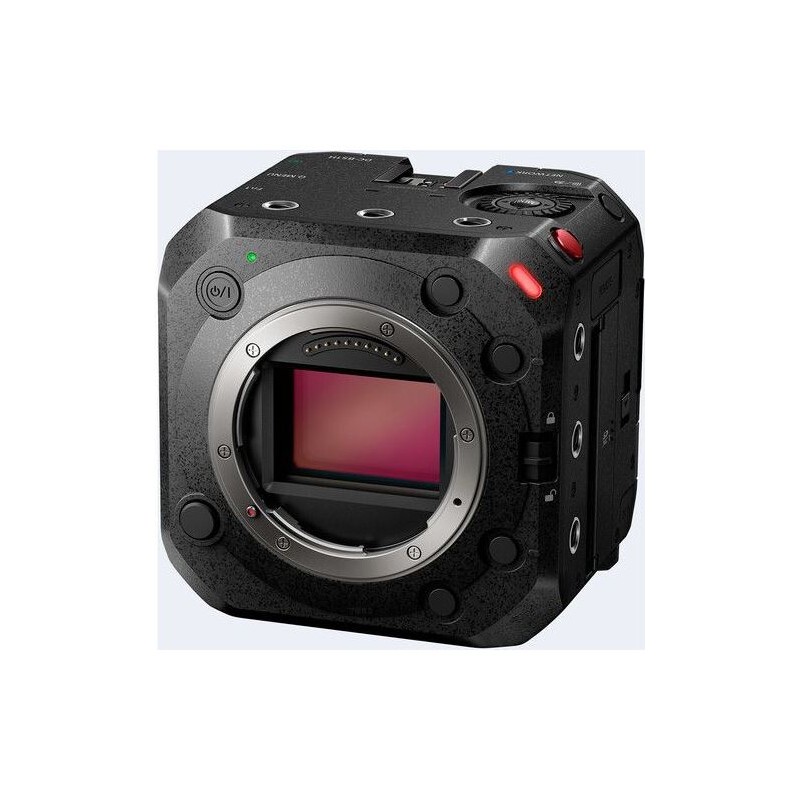

Panasonic BS1HE BoxCamera FF L-mount

The Panasonic Lumix BS1H Full-Frame Box-Style Live & Cinema Camera is a compact and versatile modular digital cinema camera suitable for cine drones, remote setups, and multi-camera broadcast work. Despite its small form-factor, it houses a full-frame 24.2MP sensor with a Leica L lens mount, offering a wide dynamic range of 14+ stops for seamless adaptation to extreme lighting conditions when recording in V-Log. SKU DC-BS1HE

3712.69 $
Tax included

3018.45 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Panasonic Lumix BS1H Full-Frame Box-Style Live & Cinema Camera is a compact and versatile modular digital cinema camera suitable for cine drones, remote setups, and multi-camera broadcast work. Despite its small form-factor, it houses a full-frame 24.2MP sensor with a Leica L lens mount, offering a wide dynamic range of 14+ stops for seamless adaptation to extreme lighting conditions when recording in V-Log.

This camera supports resolutions up to 5.9K, including C4K (4096 x 2160) and UHD4K, while incorporating VariCam Look workflows. Featuring dual-native ISO through its Venus Engine, anamorphic support, and advanced autofocus, it delivers professional-grade imagery with vivid colors thanks to HLG (Hybrid Log-Gamma) color support, facilitating smooth color grading.

With multiple recording options, including ALL-Intra and LongGOP formats in H.264 and H.265/HEVC codecs, the BS1H ensures high data rate files capture. It enables unlimited recording time and records 10-bit 4:2:2 video onto dual SD card slots. HDMI 2.0 output allows up to 4K resolution output, while SDI output supports up to 1080p resolution. Simultaneous HDMI and SDI output capabilities facilitate monitoring and recording simultaneously.

The camera's versatility extends to multi-camera setups, boasting timecode and genlock BNC ports for easy synchronization with other cameras. Its RJ45 Gigabit LAN port enables synchronization with networked BS1H cameras, firmware updates, and direct IP streaming. Wi-Fi and Bluetooth functionalities allow convenient monitoring, configuration, and control via the LUMIX Sync app.

Equipped with a USB 3.1 Gen 1 Type-C input for control via the LUMIX Tether app, the BS1H enables still image capture and control of up to 12 cameras simultaneously. Audio features include high-grade 48 kHz/24-bit LPCM format, an integrated stereo microphone, and versatile input/output options. Its compact design, internal fan for cooling, and robust construction make it suitable for use on gimbals or drones. Additionally, it offers multiple mounting options and power sources for enhanced flexibility in various shooting environments.

Sensor and Processing Engine

24.2 MP sensor with low-pass filter

Dual native ISO 100-51200

10-bit C4K/4K 59.94/50 video (35mm)

V-Log with 14+ stops of dynamic range

Supports various resolutions and aspect ratios

Recording and Output

Internal recording at 4:2:2 10-Bit/8-bit to dual UHS II SD card slots

External output via HDMI for Blackmagic RAW or ProRes RAW

Simultaneous HDMI and SDI output capabilities

Supports recording, output, and streaming via LAN or Wi-Fi

Ethernet Compatible

Remote control of up to 12 cameras

Power via PoE+

Direct streaming using RTP/TRSP protocols

Supports Genlock and Timecode

Synchronization for live sports or postproduction

Bluetooth and Wi-Fi

Convenient connectivity for monitoring and control

Additional Functions

Various indicators and markers for enhanced shooting experience

Face/Eye recognition for focus tracking

Low Light AF for low-light conditions down to -6EV



Specifications

Imaging

Lens Mount: Leica L

Interchangeable Lens Mount: None

Lens Communication: Yes

Sensor Resolution: Effective: 24.2 Megapixel

Sensor Type: 35.6 x 23.8 mm (Full-Frame) CMOS

Sensor Windowing:

6K (5952 x 3968) in 3:2

5K (5888 x 3312) in 16:9

5K (5376 x 3584) in 3:2

4K (4096 x 2160) in 17:9

4K (3840 x 2160) in 16:9

1080p (1920 x 1080) in 16:9

Image Stabilization: Sensor-Shift

Built-In ND Filter: None

ISO Sensitivity:

Native: 100 to 51,200

Expanded: 80 to 204,800

Shutter Type: Rolling Shutter

Shutter Speed: 1/16000 to 1/2 sec

Advertised Dynamic Range: 14 Stops

White Balance: 2500 to 10,000K

Internal Recording

Recording Modes: H.265/H.265 Long GOP/MOV 4:2:2 10-Bit

Resolution and Frame Rates:

DCI 4K: Up to 60 fps

1080p: Up to 180 fps

Gamma Curve: Panasonic V-Gamut, Panasonic V-Log

Audio Recording: MOV: 24-Bit 48 kHz/96 kHz LPCM Audio, MP4: 24-Bit 48 kHz/96 kHz LPCM Audio

Still Image Support: None

External Recording

Video Output:

4:2:2 10-Bit via HDMI

4:2:2 8-Bit via HDMI

4:2:2 10-Bit via SDI/BNC

4:2:2 8-Bit via SDI/BNC

Raw Output: HDMI In Full Frame Mode: 12-Bit, HDMI In Super35 Mode: 12-Bit

IP Streaming: RTP, RTSP: Up to 3840 x 2160 at 59.94p (4.0 to 50.00 Mb/s)

Interface

Media/Memory Card Slot: Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]

Video Connectors: 1 x BNC (3G-SDI) Output, 1 x HDMI (HDMI 2.0) Output

Audio Connectors: 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output

Built-In Microphone Type: Stereo

Other I/O:

1 x USB Type-C Camera Interface

1 x BNC Timecode Data Input/Output

1 x BNC Genlock Data Input/Output

1 x RJ45 LAN Control, Monitor, Video Input/Output

1 x 2.5 mm LANC Control Input

Wireless Interfaces: 2.4 GHz Wi-Fi 4 (802.11n), Bluetooth Video Output, Control

EVF

Optional, Not Included

Power

Battery Type: Panasonic AG-VBR Series

Power Connectors: 1 x Weipu SF610/S2 (12 VDC) Input

PoE Support: PoE+ 802.3at

Environmental

Operating Temperature: 14 to 104°F / -10 to 40°C

Operating Humidity: 10 to 80%
