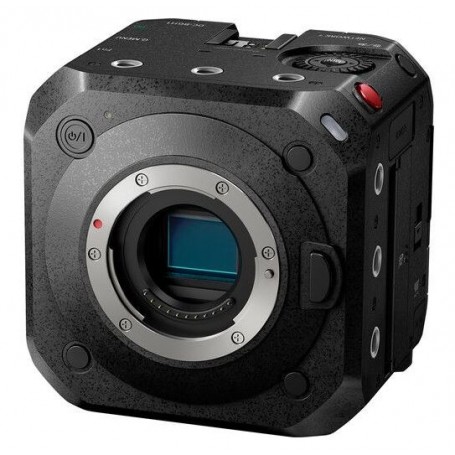

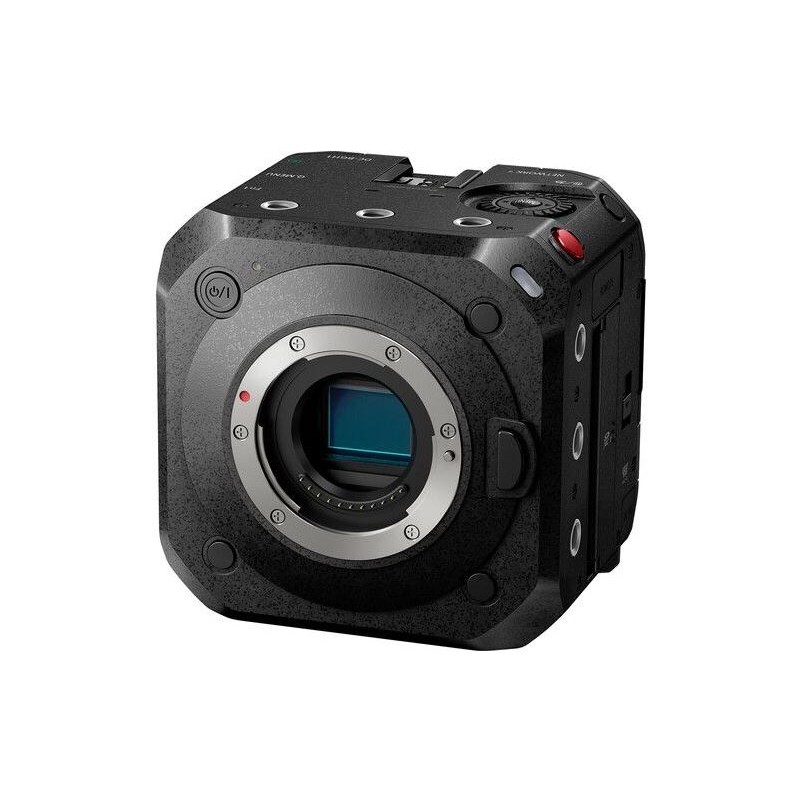

Panasonic DC-BGH1E Box Camera

Introducing the Panasonic LUMIX BGH1 Cinema 4K Box Camera, a revolutionary addition to the LUMIX camera range, designed for versatility and mobility. This modular, box-style digital cinema camera boasts a compact form factor, making it perfect for various applications such as gimbal and drone work, live streaming, vlogging, and cinema production. Equipped with a 10.2MP M4/3 sensor, MFT lens mount, and a remarkable 13-stop dynamic range, it ensures exceptional performance even in challenging lighting conditions.

Capture stunning video with resolutions up to 4K60 and leverage advanced VariCam Look workflows like V-Log L and Cinelike. Benefit from features like dual-native ISO, anamorphic support, and advanced autofocus, empowering you to unleash your creativity in any production environment. With comprehensive recording options including ALL-Intra Long GOP, MOV, and MP4 formats, and support for dual SD card slots, the BGH1 offers flexible recording solutions for professionals.

For seamless integration into multicamera setups, the BGH1 features timecode and genlock BNC ports, facilitating easy synchronization during post-production. Utilize the RJ45 Gigabit LAN port for networked camera control and IP streaming. Take advantage of Wi-Fi, Bluetooth, and USB Type-C input for convenient camera control and management using compatible devices and apps.

Despite its compact size, the BGH1 packs a punch with its robust build and thoughtful design. An internal fan ensures optimal temperature control during extended shoots, while the aluminum and magnesium housing provides durability and heat dissipation. With versatile mounting options, programmable function buttons, tally lights, and multiple power options including PoE+, the BGH1 offers unparalleled flexibility for your creative endeavors.

Key Features:

M4/3 10.2MP MOS sensor

Anamorphic video support

MFT lens mount

13 stops of dynamic range

Dual native ISO

Lightweight at 1.2 lb

HDMI 2.0 and 3G-SDI video outputs

Unlimited recording time

USB 2.1 Gen 1 Type-C input for control with LUMIX Tether app

Gigabit Ethernet via RJ45 for remote control and PoE+ power support

Direct IP streaming with a future firmware update

Wi-Fi and Bluetooth support for smartphone or tablet control

Integrated stereo microphone, 3.5mm mic input, and 3.5mm headphone output

Genlock BNC input/output

Timecode BNC input/output

Dual SD card slots

Included 12 VDC power adapter

Integrated VBR battery mount

Cable lock for secure cable management

Included in the package:

• Panasonic LUMIX BGH1 Cinema 4K Box Camera
• Power Adapter
• Cable Lock

Specifications:

Image Sensor Size: 19 x 13 mm (4/3")

Sensor Type: MOS

Sensor Resolution: Actual: 10.2 MP

Color Filter: Bayer

Shutter Type: Mechanical Shutter

ISO: 160 to 51,200 (Native), 80 to 204,800 (Expanded)

Advertised Dynamic Range: 13 Stops

Signal-to-Noise Ratio: 9.7 dB

Camera:

Lens Mount: Micro Four Thirds

Lens Communication: Yes

Interchangeable Lens Mount: Yes

Built-In ND Filter: None

Built-In Microphone Type: Stereo

Recording Media: 2 x SD Card Slots

Variable Frame Rates: DCI 4K: 1 to 60 fps, 1080p: 1 to 240 fps

Internal Recording:

Recording Modes: Various including AVC-Intra/AVC-LongG/H.264 Long GOP/H.265/MOV in 4:2:0 10-Bit and 8-Bit, MP4 in 4:2:0 10-Bit and 8-Bit

Gamma Curve: Panasonic V-Gamut, Panasonic V-Log

Audio Recording: MOV: 24-Bit 48 kHz LPCM Audio, MOV: 24-Bit 96 kHz LPCM Audio, MP4: 24-Bit 48 kHz LPCM Audio, MP4: 24-Bit 96 kHz LPCM Audio

External Recording:

Video Output: 4:2:2 10-Bit via SDI/BNC: 1920 x 1080p at 60 fps, 4:2:2 10-Bit via HDMI: 4096 x 2160p at 60 fps

Interfaces:

Video Connectors: 1 x BNC (3G-SDI) Output, 1 x HDMI (HDMI 2.0) Output

Audio Connectors: 1 x 1/8" / 3.5 mm Stereo Mic Level Input, 1 x 1/8" / 3.5 mm Stereo Headphone Output

Other I/O: 1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input, 1 x BNC Timecode Data Input/Output, 1 x BNC Genlock Data Input/Output, 1 x RJ45 LAN Control, Monitor, Video Input/Output, 1 x 2.5 mm LANC Control Input

Wireless Interfaces: 2.4 GHz Wi-Fi, Bluetooth Video Output, Control

EVF:

Optional, Not Included

Power:

Battery Type: Panasonic AG-VBR Series

Power Connectors: 1 x Weipu SF610/S2 (12 VDC) Input

PoE Support: PoE+ 802.3at

General:

Tripod Mounting Thread: 1/4"-20 Female (Bottom)

Material of Construction: Aluminum

Dimensions: 3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)

Weight: 1.2 lb / 545 g
