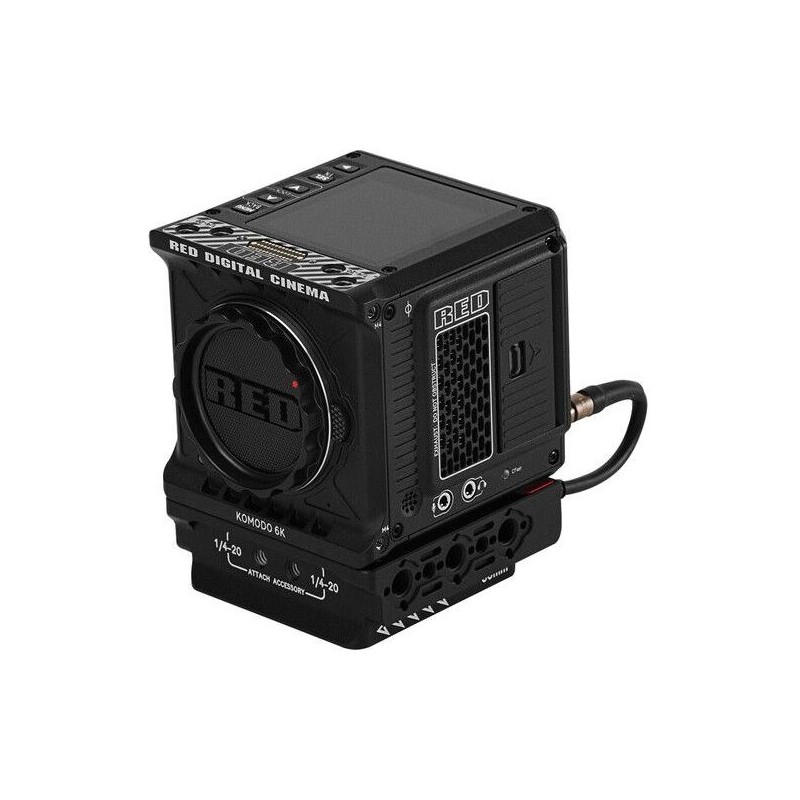

RED KOMODO 6K Production Pack

Introducing the KOMODO 6K Digital Cinema Camera from RED, a groundbreaking fusion of legendary image quality and compact design. Weighing a mere 2.1 lb and measuring approximately 4 x 4 x 4 inches, this innovative camera harnesses the power of the Canon RF lens mount and the KOMODO 19.9MP Super35 CMOS sensor equipped with Global Shutter technology. This sensor delivers stunning images with over 16 stops of dynamic range while eliminating the dreaded rolling shutter effect.

The KOMODO's design marks a new era for RED, offering an all-in-one solution in an incredibly compact package. With its CFast 2.0 card slot, capable of handling data rates up to 280 MB/s, and a convenient 2.9" touchscreen, you can easily capture and monitor your footage. Alternatively, utilize the RED Control system via iOS or Android devices through integrated 2.4/5 GHz Wi-Fi, or opt for wired control via the USB Type-C port with optional adapters.

The adoption of the Canon RF lens mount not only contributes to the KOMODO's compact form but also ensures compatibility with a wide array of lenses through optional adapters. With native support for mechanical RF and EF lenses, and the ability to accommodate electronic EF-mount lenses with additional adapters, including autofocus functionality, versatility is at your fingertips.

For the first time, RED introduces Phase-Detect Autofocus (PDAF) capability with compatible lenses, offering swift and precise focus acquisition. This feature, combined with the intuitive touchscreen interface, provides seamless control over your footage, even in fast-paced shooting scenarios.

In terms of image quality, the KOMODO shines with the ability to record up to 6K at 40 fps in REDCODE RAW, offering unparalleled flexibility in post-production. With simplified compression options, including HQ, MQ, and LQ modes, users can tailor their workflow to prioritize either data rate or image quality. Additionally, native recording in Apple ProRes formats provides a convenient alternative for faster turnaround times.

As a complete cinema camera solution, the KOMODO boasts an array of ports and connections, including integrated stereo microphones, audio input, genlock/timecode support, and a 12G-SDI port for high-quality monitoring. Dual Canon BP-9xx battery slots ensure extended shooting sessions, while the compact form factor makes it ideal for handheld or gimbal-mounted setups.

The base model of the KOMODO 6K includes the camera itself, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Key Features:

6K Super35 Sensor with Global Shutter

Compact and Lightweight Design

CFast Recording with High Data Rates

REDCODE RAW and Apple ProRes Recording

Canon RF Lens Mount with Adapter Compatibility

Phase-Detect Autofocus (PDAF) Capability

Integrated Touchscreen Display

Comprehensive Connectivity Options

Dual Canon BP-9xx Battery Slots

Included Accessories: Power Adapter and Canon RF-to-EF Mechanical Adapter

Included in the package are:

• RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)
• RED DIGITAL CINEMA KOMODO AC Power Adapter (45W)
• RF-to-EF Mechanical Lens Mount Adapter
• RED DIGITAL CINEMA KOMODO Outrigger Handle
• RED DIGITAL CINEMA KOMODO Expander Module
• RED DIGITAL CINEMA 512GB RED PRO CFast 2.0 Memory Card
• RED DIGITAL CINEMA CFAST 2.0 Card Reader
• RED DIGITAL CINEMA EXT-to-Timecode Cable (3')
• RED DIGITAL CINEMA D-Tap-to-Power Cable (6')
• Canon Drop-In Filter Mount Adapter EF-EOS R with Variable ND Filter
• Canon Drop-In Variable ND Filter A (1.5-9 Stop)
• Canon Drop-In Clear Filter A
• Wing Grip

Specifications:

Camera:

Image Sensor Size: Super35 (27.03 x 14.26 mm)

Sensor Type: CMOS

Sensor Resolution: 6144 x 3240 (19.9 MP)

Color Filter: Bayer

Shutter Type: Global Shutter

Dynamic Range: 16 Stops

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Built-In ND Filter: None

Built-In Microphone Type: Stereo

Recording Media: 1 x CFast 2.0 Card Slot

Internal Recording:

Raw Recording: REDCODE RAW

Recording Modes: ProRes 422/ProRes 422HQ

Audio Recording: 2-Channel 24-Bit 48 kHz

External Recording:

Video Output: 4:2:2 10-Bit via SDI/BNC

Interfaces:

Video Connectors: 1 x BNC (12G-SDI) Monitor Output

Audio Connectors: 1 x 1/8" / 3.5 mm Stereo Mic Level Input

Other I/O: 1 x 9-Pin GPI, Genlock, RS-232, Timecode

Wireless Interfaces: 2.4 GHz, 5 GHz Wi-Fi Video Output, Control

Display:

Display Type: Fixed Touchscreen LCD

Size: 2.9"

Resolution: 1440 x 1440

Power:

Battery Type: Canon BP-9 Series

Power Connectors: 1 x 2-Pin LEMO (7 to 17 VDC) Input

Power Consumption: 45 W

General:

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Material of Construction: Aluminum

Dimensions: 4 x 4" / 10.2 x 10.2 cm

Weight: 2.1 lb / 1 kg
