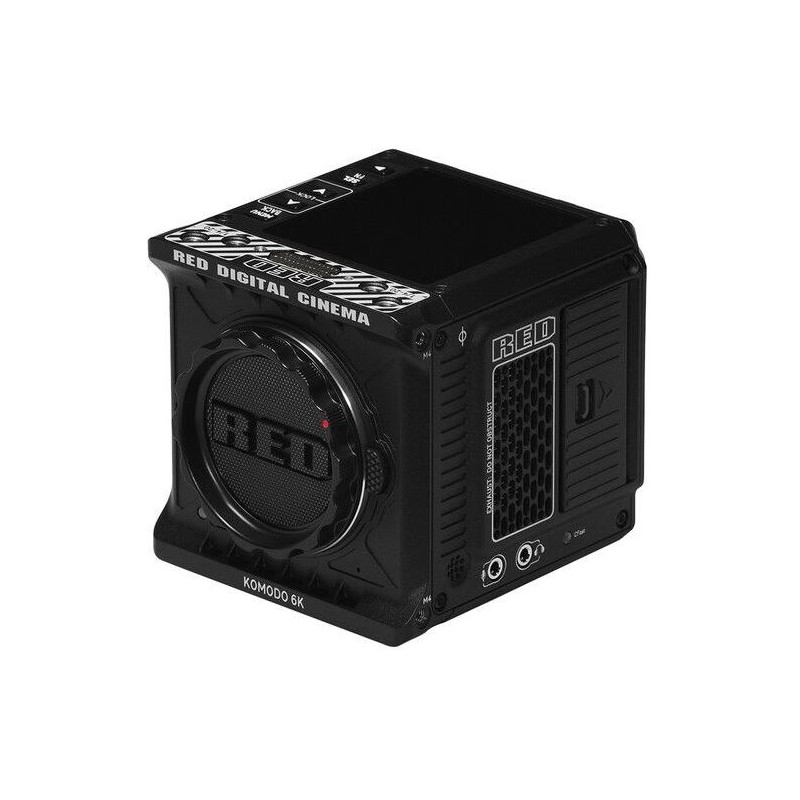

RED KOMODO 6K

RED introduces the KOMODO 6K Digital Cinema Camera, showcasing their renowned image quality and color science in an ultra-compact, all-in-one design weighing just 952g and measuring approximately 4 x 4 x 4 inches. Key to this achievement is the Canon RF lens mount and the KOMODO's 19.9MP Super35 CMOS sensor with Global Shutter technology, delivering images with over 16 stops of dynamic range and eliminating rolling shutter artifacts. Record up to 6K at 40 fps, 5K at 48 fps, 4K at 60 fps, and 2K at 120 fps in REDCODE RAW for unparalleled flexibility in post-production.

This revolutionary design simplifies workflow with a CFast 2.0 card slot for high-speed data rates up to 280 MB/s. A top-mounted 2.9" 1440 x 1440 touchscreen enables easy configuration and monitoring, complemented by wireless control via integrated 2.4/5 GHz Wi-Fi or wired control through the USB Type-C port.

Utilizing the Canon RF lens mount ensures compactness while offering compatibility with a wide range of lenses through optional adapters, including mechanical and electronic EF-mount lenses with autofocus support. Pioneering Phase-Detect Autofocus (PDAF) enhances speed and accuracy, particularly with adapted Canon EF-mount lenses.

The KOMODO excels in image quality, capturing up to 6K at 40 fps in 16-bit REDCODE RAW. Choose between HQ, MQ, and LQ compression options to tailor data rate and image quality. Additionally, record in Apple ProRes formats for faster turnaround times.

As a comprehensive solution, the KOMODO features integrated stereo microphones, various ports, and connections including a 12G-SDI port for high-quality monitoring. Dual Canon BP-9xx series battery slots ensure uninterrupted recording in the field.

The RED KOMODO 6K offers a complete cinema camera solution in an incredibly compact form without compromising image quality. The base model includes the KOMODO 6K, a 45W AC power adapter, Mini World Travel Adapter Kit, and a Canon RF-to-EF mechanical adapter.

Features:

6K Super35 Sensor: 19.9MP CMOS sensor with over 16 stops dynamic range and 6144 x 3160 resolution.

Global Shutter: Produces crisp images while reducing motion artifacts.

Compact Form, Versatile Power: Weighing just over 2 lb, powered by lightweight Canon BP-9 batteries or AC supply.

CFast Recording: Supports data rates up to 280 MB/s.

REDCODE RAW: Versatile format for efficient post-production.

Apple ProRes Formats: For faster workflow.

Color Management: Supports 3D LUTs and RED color science.

Touchscreen Display: Integrated 2.9" touchscreen LCD for easy control and monitoring.

Package Contents:

• RED DIGITAL CINEMA KOMODO 6K Digital Cinema Camera (Canon RF)
• RED DIGITAL CINEMA KOMODO AC Power Adapter (45W)
• Mini World Travel Adapter Kit
• RED Logo Sticker
• KOMODO Information Card (including registration and support info)
• Box with plastic/foam (standard minimalist markings)
• Canon Mount Adapter EF-EOS R

Specifications:

Image Sensor Size: 27.03 x 14.26 mm (Super35)

Sensor Type: CMOS

Sensor Resolution: Actual: 6144 x 3240 (19.9 MP)

Color Filter: Bayer

Shutter Type: Global Shutter

Advertised Dynamic Range: 16 Stops

Camera:

Lens Mount: Canon RF

Lens Communication: Yes, with Autofocus Support

Built-In ND Filter: None

Built-In Microphone Type: Stereo

Recording Media: 1 x CFast 2.0 Card Slot

Internal Recording:

Raw Recording: REDCODE RAW

6144 x 3240 at 40 fps

5120 x 2700 at 48 fps

4096 x 2160 at 60 fps

2048 x 1080 at 120 fps

Recording Modes: ProRes 422/ProRes 422HQ

4096 x 2160p up to 60 fps

ProRes 422:

2048 x 1080p up to 120 fps

Audio Recording: 2-Channel 24-Bit 48 kHz

Still Image Support: Not Specified by Manufacturer

External Recording:

Video Output: 4:2:2 10-Bit via SDI/BNC

4096 x 2160p at various frame rates

3840 x 2160p at various frame rates

2048 x 1080p at various frame rates

1920 x 1080p at various frame rates

Interfaces:

Video Connectors: 1 x BNC (12G-SDI) Monitor Output

Audio Connectors: 1 x 1/8" / 3.5 mm Stereo Mic Level Input

Other I/O: 1 x 9-Pin GPI, Genlock, RS-232, Timecode

Wireless Interfaces: 2.4 GHz, 5 GHz Wi-Fi Video Output, Control

Display:

Display Type: Fixed Touchscreen LCD

Size: 2.9"

Resolution: 1440 x 1440

EVF:

EVF: Optional, Not Included

Power:

Battery Type: Canon BP-9 Series

Power Connectors: 1 x 2-Pin LEMO (7 to 17 VDC) Input

Power Consumption: 45 W

General:

Tripod Mounting Thread: 1/4"-20 Female (Bottom), 3/8"-16 Female (Bottom)

Material of Construction: Aluminum

Dimensions: 11.25 x 7 x 5.5" / 28.57 x 17.8 x 14 cm

Weight: 2.1 lb / 1 kg
