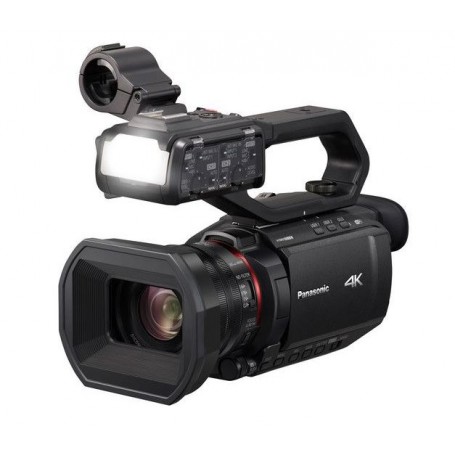

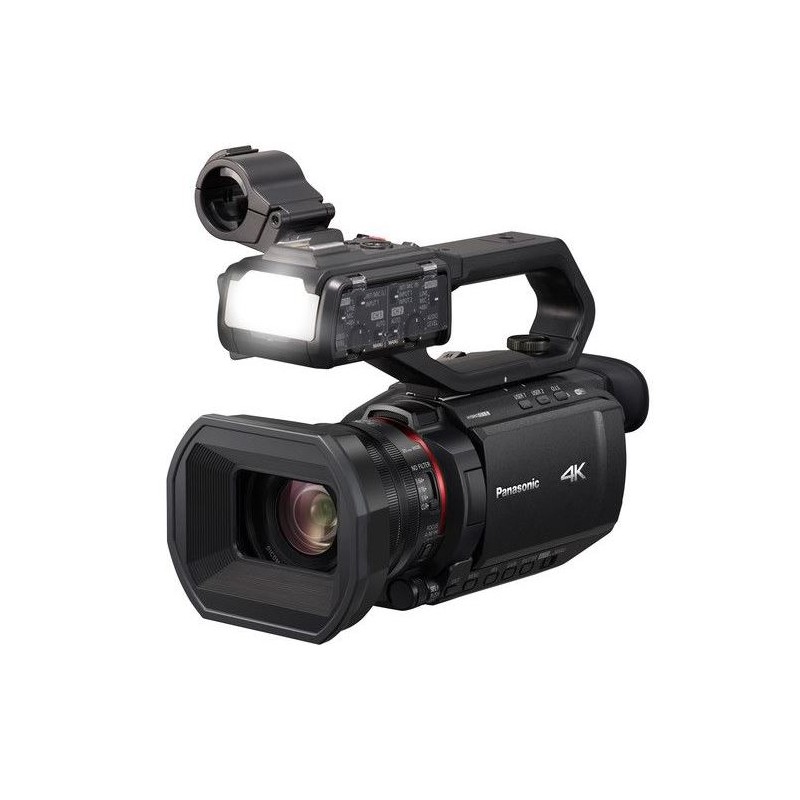

Panasonic HC-X2000 Camcorder

If you're delving into behind-the-scenes (BTS) videography in HD and considering an upgrade to 4K, the Panasonic HC-X2000 UHD 4K Pro Camcorder offers a seamless transition or a direct leap into 4K shooting. Designed compact and lightweight, it's ideal for directors or on-set BTS crews. The X2000 captures and records UHD 4K footage at broadcast-compatible frame rates, seamlessly integrating into your existing broadcast workflow.

Equipped with a 1/2.5" 8.29M MOS sensor, the X2000 ensures constant shooting at 4K resolution. The Venus processing engine scales the 4K image for Full HD delivery, providing versatility in output options. With both 3G-SDI and HDMI outputs, connectivity is robust. Audio recording in up to 24-bit PCM is facilitated by the built-in microphone.

The built-in Leica Dicomar lens boasts a 24x zoom, starting from a wide 25mm angle, expandable up to 48x with digital iZoom. Face Detection AF feature enables automatic focus adjustment, while manual control rings and a control dial offer precise control. The 5-axis optical image stabilization keeps shots steady, crucial for dynamic shooting environments. The 3.5" fold-out LCD with touchscreen functionality ensures intuitive operation.

Recording options include .mp4, .mov, and AVCHD codecs with HEVC compression, enhancing efficiency. Dual SD card slots support relay and simultaneous recording. Live streaming over 2.4 GHz Wi-Fi via RTP/RTSP/RTMP/RTMPS streams is supported.

The included VW-HU1 removable top handle unit adds versatility. It provides two 3-pin XLR inputs switchable between mic, line, and +48V phantom power, each with individual volume control. A built-in LED light offers soft, diffused illumination with dimming capabilities. A microphone holder and shoe mount on the handle accommodate additional accessories.

Key Features:

Capture up to UHD 4K video with 3G-SDI or HDMI output.

Live stream via Wi-Fi using RTSP/RTMP/RTMPS streams.

Utilize 5-axis optical image stabilization (O.I.S.) in 4K recording mode.

Dual manual lens rings for precise control.

Built-in selectable ND physical filters.

Records in MP4, MOV, or AVCHD Progressive formats.

Removable top handle with two 3-pin XLR audio inputs and phantom power switch. Manual adjustments via side dials for on-the-fly control.

Package Includes:

• Panasonic HC-X2000 UHD 4K 3G-SDI/HDMI Pro Camcorder with 24x Zoom
• Panasonic 7.28V 43Wh Lithium-Ion Battery
• Detachable Handle Unit

Specifications

Image Sensor:

1-Chip 1/2.5" MOS Sensor

Effective Sensor Resolution: 8.29 MP

Minimum Illumination: 1.5 Lux at 1/30 Shutter Speed

White Balance Range: 2000 to 15,000K

Lens:

Focal Length: 4.1 to 98.9mm

35mm Equivalent Focal Length: 25 to 600mm

Optical Zoom Ratio: 24x

Max Digital Zoom: 48x

Maximum Aperture: f/1.8 to 4

Optical Design: 14 Elements in 11 Groups

Filter Size: 62 mm

Control Rings: Focus, Zoom, Iris

Image Stabilization: Optical

Focus Control: Autofocus, Manual Focus

Camera:

Shutter Speed: 1/1 to 1/30 sec

Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type: Stereo

Recording Media:

2 x SDXC Card Slots

Recording:

Recording Modes:

AVCHD/MOV/MP4 4:2:0 10-Bit: 3840 x 2160p up to 50/60 fps, 1920 x 1080p up to 50/60/120 fps

AVCHD/MOV/MP4 4:2:2 10-Bit: 3840 x 2160p at 25/30 fps, 1920 x 1080p at 25/30/50/60 fps

Audio Recording:

MOV: 2-Channel 24-Bit LPCM Audio

MP4: 2-Channel 24-Bit AAC Audio

AVCHD: 2-Channel 24-Bit AC-3 Audio

IP Streaming:

RTMP, RTP, RTSP, H.264: 1920 x 1080

RTMP, RTP, RTSP, H.264: 1280 x 720

RTMP, RTP, RTSP, H.264: 640 x 360

RTMP, RTP, RTSP, H.264: 320 x 180

Interfaces:

Video Connectors: 1 x BNC (3G-SDI) Output, 1 x HDMI Output

Audio Connectors: 1 x 1/8" / 3.5 mm Stereo Headphone Output, 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input

Other I/O: 1 x USB Micro-B Input, 1 x 2.5 mm Output

Wireless Interfaces: 2.4 GHz Wi-Fi

Display:

Display Type: LCD

Screen Size: 3.5"

Touchscreen: Yes

Screen Resolution: 1,560,000 Dots

Power:

Battery Type: Panasonic AG-VBR Series

Power Connectors: 1 x Proprietary (11.4 to 12.6 VDC) Input

Power Consumption: 7.9 W

General:

Accessory Mount: 1 x Cold Shoe Mount

Tripod Mount: 1/4"-20 Female

Built-In Light: Yes

Dimensions: 10.12 x 6.26 x 5.08" / 25.7 x 15.9 x 12.9 cm

Weight: 3.31 lb / 1.5 kg
