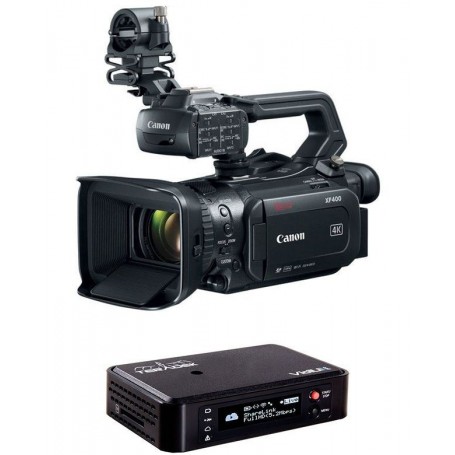

Canon XF400 Streaming bundle with Teradek VidiU Pro

The Canon XF400 HD Camcorder is a compact, ergonomic camera designed for professional use. It features UHD 4K capture, a 1" CMOS sensor, Dual-Pixel CMOS AF, and two XLR audio inputs. With an integrated 15x HD optical zoom, up to 30x Advanced Zoom, and a nine-bladed iris, it ensures natural highlights and stable shots with its five-axis optical image stabilization. Pro-style HD features include Dual-Pixel Autofocus (DPAF), dual DIGIC DV 6 image processors, and support for Wide DR Gamma.

Key Features:

8.29MP, 1" CMOS sensor

Integrated 15x optical zoom lens

Advanced Zoom up to 30x

UHD 4K 60 fps, HD 120 fps onboard recording

Dual XLR inputs, four channels of audio

Dual-pixel CMOS autofocus feature

Two DIGIC DV 6 processors

Two SD memory card slots

HDMI 2.0 output

Teradek VidiU Pro:

Teradek's VidiU Pro delivers high-definition live streaming video with the reliability expected in traditional HD broadcast. It supports popular streaming platforms like Ustream, Livestream, Twitch, and YouTube Live, as well as manual RTMP addresses to services like Wowza Streaming Server. VidiU Pro is compatible with virtually every streaming platform and accepts any HDMI camera source.

Key Features:

Broadcast quality HD live streaming video

Configurable via Bluetooth using a tablet or smartphone

Two-hour internal Lithium-ion rechargeable battery life

Record streams to an SD card via built-in SD port

Supports Teradek's ShareLink cloud services for maximum bandwidth

Package Includes:

• 1x Canon XF400 Camcorder
• 1x Handle Unit
• 1x Lens hood with lens barrier
• 1x Battery pack BP-828
• 1x Power adapter CA-946
• 1x Mic holder
• 1x Wireless Controller WL-D89
• 1x Teradek VidiU Pro
• AC Power Supply
• Hot Shoe Adapter with Thumbscrew
• Ethernet Cable
• Full-to-Mini HDMI Cable
• Quick Start Guide

Specification

Image Sensor:

Type: 1.0-inch CMOS

Filter: RGB Primary Colour Filter

Total Pixels: 13.4 MP

Effective Pixels per Sensor: 8.29 MP

Subject Illumination Range: Approximately 0.1 lx to 100,000 lx

Minimum Illumination (PAL/50.00Hz Mode):

Approx. 1.4 lx, P Mode (shutter speed 1/25 sec.) (50.00P; with auto slow shutter On)

Low Light Mode: Approx. 0.1 lx (shutter speed 1/2 sec.)

Lens:

Zoom Ratio: 15x Optical

Focal Length: Approximately 25.5 to 382.5 mm

Minimum Focus Distance: 10 mm at wide end, 60 cm across entire zooming range

ND Filter: 3 densities (turret switched, motor-driven)

Zoom Control: Via Zoom Rocker Switch, Lens Control Ring, or Remote Control

Zoom Speed: Selectable (Variable or constant speed; Fast, Normal, or Slow speed)

Focus Control: Manual via Lens Ring, Dual Pixel CMOS AF, Face Only, Face Priority

Iris Control: Manual via Iris Control Dial, Auto

Aperture Range: f/2.8 - f/11 (AV Priority and Manual Modes)

Filter Diameter: 58mm

Lens Elements/Groups: 14 groups of 18 elements (double aspherical lenses and single Hi-UD lenses)

Aperture Blades: 9 Blades

Image Stabilization System: Optical system (lens shift) + electronic stabilization (Dynamic, Powered IS, Standard)

Digital Zoom/Teleconverter: Yes. 300x Digital Zoom, 2x Digital Teleconverter

Image Processor:

Type: Dual DIGIC DV6

Dynamic Range: 12 stops (800%) in Wide DR mode

Sampling Accuracy: YCC 4:2:0

Bit Depth: 8 bit

Looks Settings: Standard, Wide DR, Monochrome

Recording:

Video Storage Media: SD/SDHC/SDXC card (Class U3 recommended for recording at 150MBPS)

Recording Time (64GB Card, Approx.):

150 Mbps: 55 Minutes

35 Mbps: 240 Minutes

Recording File System: FAT32/exFAT

Internal Recording:

MP4: 3840x2160 (150 Mbps) / 1920x1080 (35/17 Mbps) / 1280x720 (8/4 Mbps)

External Recording Output:

SDI: XF405 Only

HDMI: XF405 and XF400

Recording Frame Rate (PAL Model): 50.00P/25.00P

Slow/Fast Motion: Yes

Interval Record: No

Frame Record: No

Pre Record (Cache Record): Yes. 3 Seconds

Scan Reverse: No

Still Quality: Dependent on video resolution

Photo Storage Media: SD Card

Audio:

Recording: MPEG-4 AAC-LC (16-bit 2CH) / LPCM (16-bit 4CH)

Control: Manual or Auto

Reference Tone: 1KHz, -12dB / -18dB / -20dB / Off

Microphone Level Meter: Yes

Panel:

Type: LCD Capacitive touch panel

Size: 3.5-inch (8.9 cm)

Dots: Approximately 1.56 million dots

Adjustable: Yes

Waveform Monitor: No

Focus Assist: Yes. Focus Guide Function in MF

Peaking: Yes. Selectable Peaking Colour: Red / Blue / Yellow

Zebra: Yes. 70%, 100%

Markers: Yes. Horizontal (grey) / Horizontal (white) / Grid (grey) / Grid (white)

CVF:

Size: 0.24-inch

Dots: Approximately 1.56 million dots

Adjustable: Yes

Viewing Angle: 100%

Correction Lens: +2.0 to -5 diopter

Inputs/Outputs:

Audio In: XLR 3-pin jacks (x2), balanced on Handle Unit. 3.5mm Stereo jack (unbalanced) on camera body

Headphone Output: Yes. 3.5mm

HDMI: Yes

USB: Yes. Mini-B and Hi-Speed USB supported

SD-SDI Output: Yes. BNC Connector

Time Code: No. Timecode out via HDMI is possible

Genlock: No

LAN: Yes. Ethernet connector (RJ45) (supports 1000 BASE-T)

DC Input: Yes. 3.4mm Jack

Remote Control Terminal: Yes. 2.5mm mini jack

Exposure:

Exposure Metering:

Centre-weighted average metering: In the AUTO, P, Av, Tv, Portrait, Sports, Low Light, and IR modes

Segment evaluative metering: Snow, Beach, Sunset, Spotlight, Night modes

No metering: Fireworks; Fixed exposure [1/60 sec. (PAL: 1/50 sec.)], M (manual exposure)

Exposure Compensation: Highlight AE, Exposure lock, Auto backlight compensation

Auto Exposure Mode: P, Tv, Av, SCN (Portrait, Sports, Snow, Beach, Sunset, Night, Low Light, Spotlight, Fireworks)

Auto Gain Control Setting: Yes

Auto Gain Control Limit: In manual exposure (P, Av, and Tv modes): 0-29 dB (in 1 dB increments)

Gain Setting: M (Manual) shooting

White Balance:

Settings: Auto, Manual

Preset: Daylight: 5,600 K, Tungsten: 3,200, Default value for set 1, set 2: 5,600 K

Colour Temperature Setting Ranges: From 2,000 K to 15,000 K

Shutter Speed:

Control Modes: Manual, Tv, Auto, P Mode

Shutter Speed (PAL): 1/2 - 1/2000 sec

Infrared:

Infrared Shooting Mode: Yes

Built-in IR Lamp: Yes, in Handle Unit

Miscellaneous:

Tally Lamp: Yes

Colour Bars: EBU / SAMPTE (PAL); SMPTE / ARIB (NTSC)

Accessory Shoe: Cold Shoe

Custom Button Assignment: Yes. 5 assignable buttons.

Custom Dial: Yes.

Wireless LAN Standards: IEEE802.11b/g/n/a (2.4 GHz/5 GHz)

Supported Wi-Fi Functions: Browser Remote, FTP file transfer

Supported Browser for Remote Operation: Internet Explorer 8 or later, Safari (iOS 9 or 10), Safari (MacOS), Android standard browser Android 4.4 - 6.0

Remote Operation Control Features: Aperture, Focus, White balance, Shutter speed, Gain, Exposure compensation, Shooting mode, Zooming, Live View

Live View Image Resolution: Camera setting mode: 680 x 383; Simplified setting mode: 284 x 160

Time Code:

Countup System: Rec Run / Free Run

Start Value Setting: 00:00:00:00 - 23:59:59:29 (PAL 23:59:59:24)

Drop Frame: DF / NDF

Accessories:

Supplied: Lens hood with barrier, Mic holder unit (w/ screw), Handle unit, Wireless Controller (WL-D89), Lithium battery (CR2025), AC adapter (CA-946), Battery Pack BP-828, AC Cable, Lens Cap

Battery:

Power Consumption: 8.4W (MP4, 3840 x 2160, 50.00P Panel in use)

Battery Pack: Canon Battery Pack BP-828 (supplied), BP-820 (Optional)

Continuous Recording Time: BP-828: 125 mins (MP4, 3840 x 2160, 50.00P Panel in use)

Miscellaneous:

Dimensions: Approx. 150 x 216 x 267 mm (approx. 5.9 x 8.5 x 10.5 in.) [Including lens hood, BP-828, mic holder unit, and handle unit]

Weight (Camera Only): XF405: 1150g(2.5 lb) XF400: 1145g (2.5lb)

Weight (Fully Equipped): XF405:1670g (3.7lb) XF400: 1665g (3.7lb) Camera, Lens Hood, Handle Unit, BP-828 battery, 1 SD card

Operating Temperature Range: Approx. 0 to 40 °C, 85 % (relative humidity); Approx. -5 to 45 °C, 60 % (relative humidity)
