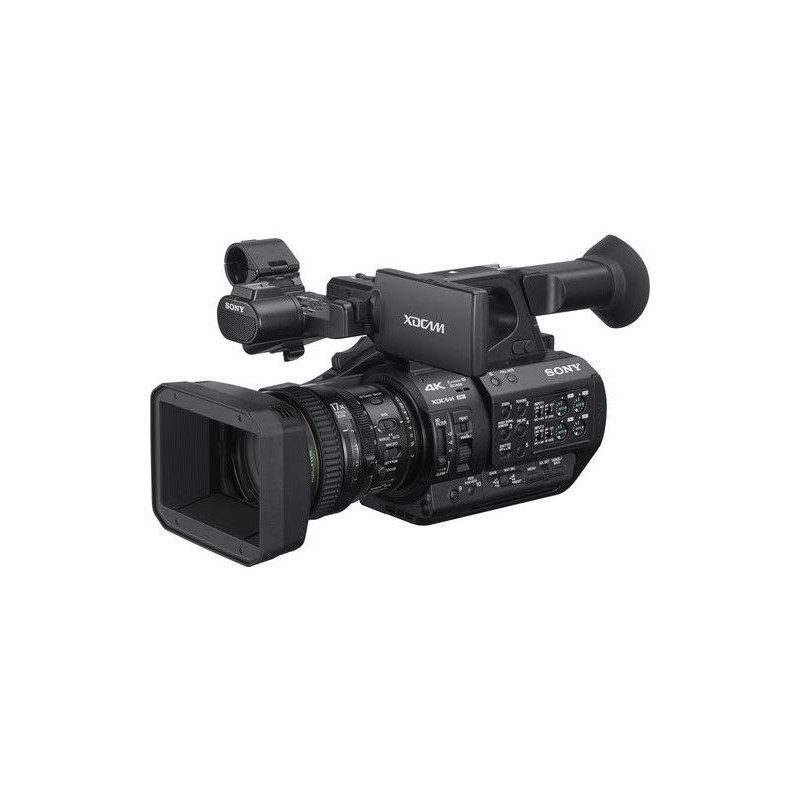

Sony PXW-Z280 4K Camcorder

Sony's PXW-Z280 4K 3-CMOS 1/2" Sensor XDCAM Camcorder carries on the esteemed legacy of the XDCAM series, offering exceptional performance and versatility. With its trio of 1/2" Exmor R sensors, the camera achieves remarkable low-light sensitivity, delivering stunning 4K footage at up to 60p. Equipped with a 17x optical zoom lens and an electronic variable ND filter, it ensures unparalleled image control in diverse shooting conditions.

Featuring support for modern codecs like XAVC, as well as legacy codecs such as MPEG HD and DVCAM, the PXW-Z280 allows seamless integration into various production workflows. It boasts advanced features like S-Log 3 for enhanced dynamic range and HLG (Hybrid Log Gamma) for effortless HDR and SDR compatibility, minimizing the need for extensive post-processing.

The PXW-Z280 enables simultaneous recording in 4K and HD, or direct output of 4K 60p via its built-in 12G-SDI output. With built-in 2.4 and 5 GHz Wi-Fi, it offers convenient wireless connectivity for remote operation and file transfer.

Package includes:

1x Sony PXW-Z280 4K CMOS Sensor Camcorder

1x Lens Hood

1x EVF Eyecup

1x Battery Pack BP-U30

1x AC Adapter/Charger BC-U1A

1x Power Code

1x USB Cable

1x Shoulder Strap

Specifications:

Imaging:

Sensor Resolution: Effective 8.29 Megapixels

Sensor Type: 3-Chip 1/2"-Type CMOS Sensor

Image Stabilization: Optical in Integrated Lens

Built-In ND Filter: Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters and a 2 to 7 Stop Electronic ND Filter

Capture Type:

Video Only

Exposure Control:

Shutter Type: Electronic Rolling Shutter

Shutter Speed: 1/8000 to 1/24 Second

Gain: -3 to 42 dB

Shutter Angle: 5.6 to 360°

Sensitivity: f/12 at 2000 lux 89.9% Reflectance (1080p59.94 in Standard Mode or 4K59.94 in High Sensitivity Mode)

Minimum Illumination: 0.0013 Lux

White Balance: 1500 to 50,000K

Lens:

Focal Length: 5.6 to 95.2mm (35mm Equivalent Focal Length: 30.3 to 515mm)

Optical Zoom Ratio: 17x

Maximum Aperture: f/1.9

Minimum Aperture: f/16

Minimum Focus Distance: Wide: 2.0" / 5.1 cm, Telephoto: 31.5" / 80.0 cm

Filter Size: 77 mm

Control Rings: Focus, Zoom, Iris

Focus Control: Autofocus, Manual Focus, Video Capture

Internal Recording Modes:

XAVC-I:

3840 x 2160 at 23.98/25/29.97/50/59.94 fps [600 Mb/s]

1920 x 1080p at 23.98/25/29.97/50/59.94 fps [222 Mb/s]

1920 x 1080i at 50/59.94 fps [222 Mb/s]

1280 x 720 at 50/59.94 fps [222 Mb/s]

XAVC-L:

3840 x 2160 from 1 to 59.94 fps [150 Mb/s]

1920 x 1080p from 1 to 59.94 fps [50 Mb/s]

1920 x 1080i at 50/59.94 fps [50 Mb/s]

1280 x 720 from 1 to 59.94 fps [50 Mb/s]

MPEG HD422 4:2:2:

1920 x 1080p from 1 to 29.97 fps [35 to 50 Mb/s]

1920 x 1080i at 50/59.94 fps [35 to 50 Mb/s]

1280 x 720 from 1 to 59.94 fps [35 to 50 Mb/s]

MPEG HD420 4:2:0:

1920 x 1080p from 1 to 29.97 fps [35 Mb/s]

1920 x 1080i at 50/59.94 fps [35 Mb/s]

1440 x 1080i at 50/59.94 fps [35 Mb/s]

1280 x 720 from 1 to 59.94 fps [35 Mb/s]

DV 4:2:0 8-Bit:

720 x 576i at 50 fps [25 Mb/s]

720 x 576p at 25 fps [25 Mb/s]

720 x 480i at 59.94 fps [25 Mb/s]

720 x 480p at 29.97 fps [25 Mb/s]

Fast-/Slow-Motion Support: Yes

Built-In Microphone Type: Stereo

Audio Recording: XAVC: 4-Channel 24-Bit 48 kHz LPCM Audio

Interface:

Media/Memory Card Slot: Dual Slot: SxS

Video I/O: 1 x BNC (Component) Output, 1 x BNC (12G-SDI) Output, 1 x HDMI Output

Audio I/O: 2 x XLR 3-Pin Microphone Input, 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output

Other I/O: 1 x BNC (Timecode) Input, 1 x BNC (Timecode) Output, 1 x BNC (Genlock) Input, 1 x 2.5 mm Sub-Mini (LANC) Control, 1 x Micro-USB Data, 1 x USB-A, 1 x USB-C, 1 x RJ45 (LAN) Data

Wireless: 2.4 / 5 GHz Wi-Fi 5 (802.11ac), NFC

Global Positioning (GPS, GLONASS, etc.): GPS

Monitor:

Size: 3.5"

Resolution: 2,360,000 Dot

Display Type: Articulating LCD

Viewfinder:

Type: Built-In Electronic (OLED)

Size: 0.5"

Resolution: 2,360,000 Dot

Focus:

Focus Type: Auto and Manual Focus

Focus Mode: Automatic, Manual Focus

Environmental:

Operating Temperature: 32 to 104°F / 0 to 40°C

Storage Temperature: -4 to 140°F / -20 to 60°C

General:

Battery Type: Sony BP-U Series

Accessory Mount: 1 x Intelligent Hot Shoe

Dimensions (W x H x D): 7 x 8 x 16.8" / 178.4 x 202 x 426.3 mm (With Protrusions)

Weight: 6.61 lb / 3 kg
