Kinefinity TERRA 4K Pro Package+Shoulder pack

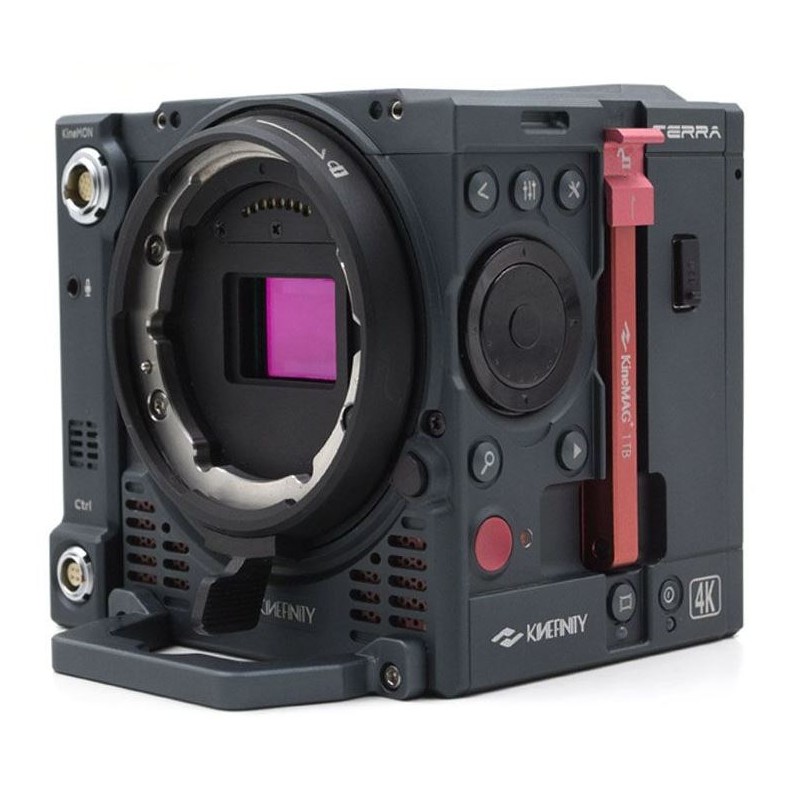

Introducing TERRA, the compact yet high-performance cinema camera that's as easy to use as a DSLR. Available in three models based on different CMOS imaging sensors: TERRA 4K/5K/6K. All models support shooting up to 100fps @4K Wide, 200fps @ 2K Wide, and recording in Apple ProRes422HQ or lossless compressed RAW on standard 2.5″ SSD. SKU Kine-TERRA-4K-PRO-KM-SHDR

$9,536.20
Tax included

7753.01 $ net price (non-EU countries)

100% secure payments

Description

Introducing TERRA, the compact yet high-performance cinema camera that's as easy to use as a DSLR. Available in three models based on different CMOS imaging sensors: TERRA 4K/5K/6K. All models support shooting up to 100fps @4K Wide, 200fps @ 2K Wide, and recording in Apple ProRes422HQ or lossless compressed RAW on standard 2.5″ SSD.

Super Lightweight: Ideal for One-person Operation

The TERRA camera body weighs only 990g and boasts a size that's only half or third of other MINI cinema cameras. Its compact form factor, akin to DSLRs, makes it compatible with most gimbals and reduces the need for heavy accessories, allowing for effortless handheld operation and one-person shoots. Equipped with the new SideGrip and a 5" fullHD KineMON, the TERRA is primed for shooting.

Powerful CMOS Sensor: Wide Color Gamut and Latitude

The TERRA 4K features a cutting-edge CMOS image sensor with Dual Native ISO: 3200/800 at 14 stops. It excels at capturing low-noise, wide-latitude images in various lighting conditions, including low-light environments. The high-speed, low-noise 4K CMOS image sensor offers a sub-S35 image format (with a crop factor over FF as 1.85). With a native frame rate of up to 100fps, the TERRA 4K can record 4K wide up to 100fps, 3K wide up to 150fps, and 2K wide up to 240fps, with minimal rolling effect thanks to its high native frame rate.



Package Includes:

  • 1 x TERRA Camera Body
  • 1 x KineMON 5" FullHD monitor
  • 1 x SideGrip: Full Function Battery Grip
  • 1 x GripBAT 45Wh for SideGrip
  • 1 x KineMAG 500GB
  • 1 x Kine AC Adapter
  • 1 x Kine D-TAP Power Cord
  • 1 x KineBACK Module
  • 1 x KineKIT-TERRA
  • 1 x TERRA Solid Case
  • 1 x WIFI Control Option
  • 1 x Movcam Shoulder Pad
  • 1 x Movcam right-side wooden handgrip
  • 1 x Movcam TERRA Trigger Cable, coiled
  • 1 x Movcam Rosette Extension Arm
  • 1 x Movcam Rosette Offset Adapter
  • 1 x Movcam KineMON Mount (tailored for KineMON)



Resolution, Frame Rate, and Codecs

sub S35 4096x1720 100FPS ProRes or KRW

4K 4096x2160 75FPS ProRes or KRW

4K HD Wide 3840x1600 100FPS ProRes or KRW

4K HD 3840x2160 75FPS ProRes or KRW

3.7K 4:3 Anamorphic 3700x2800 50FPS ProRes or KRW

2K Wide (Oversample) 2048x860 100FPS ProRes

2K (Oversample) 2048x1080 75FPS ProRes

2K HD Wide (Oversample) 1920x800 100FPS ProRes

2K HD (Oversample) 1920x1080 75FPS ProRes

sub M43 3072x1200 150FPS ProRes or KRW

3K 3072x1620 120FPS ProRes or KRW

3K HD Wide 2880x1200 150FPS ProRes or KRW

3K HD 2880x1620 120FPS ProRes or KRW

sub S16 2048x860 240FPS ProRes or KRW

2K 2048x1080 196FPS ProRes or KRW

2K HD Wide 1920x800 240FPS ProRes or KRW

2K HD 1920x1080 196FPS ProRes or KRW



Technical Specifications

Camera Type: Sub-S35mm Film-Style Digital Cinema Camera

Imaging Sensor: 4K sub-S35mm Format CMOS (Crop factor over FF: 1.85)

Shutter: Rolling Shutter (Very weak rolling effect)

Lens Mount: Native KineMOUNT (PL/EF/SONY E/Nikon F via solid mounting adapters)

Record Formats:

Compressed Lossless KineRAW (.krw) - 12 bits

ProRes422HQ/422/422LT/Proxy (.mov) - 10 bits

Dynamic Range: 14 stops

ISO/EI: Dual Native/Base ISO (Max 20480)

Shutter Angle: 0.7°~358°

Monitoring: KineMON Port x1, HD Port x1, SDI x2* (Applicable on KineBACK)

Record Media: 2.5" SSD with 7mm Height

Audio Capture: In-camera MIC; 3.5mm MIC-in; KineAudio* with 48V Phantom Power XLR (Applicable on KineBACK)

Sync Function: Tally, AutoSlate, Beeper, Trigger, SMPTE LTC*, 3D/Multi-cam Sync* (Applicable on KineBACK)

LUT: Preset: Neutral/Flat, Support Custom 3D LUT

Power: Power In (DC IN 11~19V/SideGrip/V-Mount*), Consumption: 21W (Applicable on KineBACK)

Body Color: Titanium Grey

Weight: 2.1 lb / 990 g (Only Body)

Size: 4.5x4.3x3.7" / 115x110x95 mm (W/o projections, WxHxL)

Operating Temp: 0°C to +40°C
