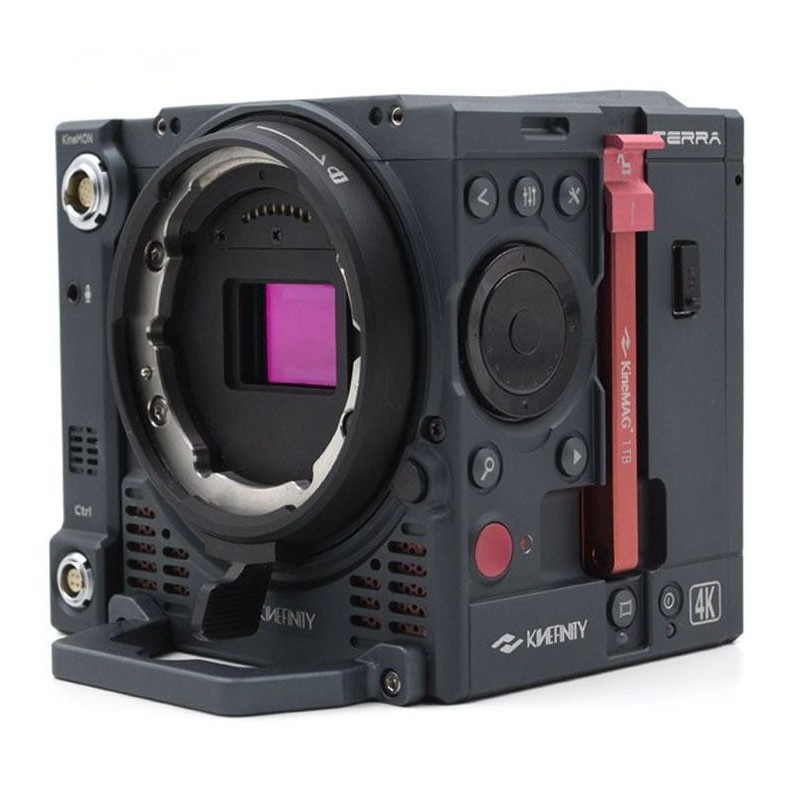

Kinefinity TERRA 4K Pro Package

Introducing TERRA, the compact yet powerful cinema camera designed for effortless operation akin to DSLRs. Available in three models - TERRA 4K/5K/6K - each equipped with a distinct CMOS imaging sensor. Offering remarkable performance, all TERRA models can achieve up to 100fps @4K Wide and 200fps @ 2K Wide, while providing the option to record in Apple ProRes422HQ or lossless compressed RAW onto standard 2.5″ SSDs.

Super Lightweight: Perfect for Solo Shoots

Weighing in at a mere 990g, the TERRA camera body is exceptionally lightweight, making it suitable for solo operation. Its compact size, half or third the size of other MINI cinema cameras, ensures compatibility with most gimbals and reduces accessory requirements, enabling effortless handheld shooting. Enhanced with the new SideGrip and a 5″ fullHD KineMON, the TERRA is primed for any shooting scenario.

Powerful CMOS Sensor: Exceptional Color Gamut and Latitude

The TERRA 4K boasts a cutting-edge CMOS image sensor featuring Dual Native ISO: 3200/800, delivering exceptional performance with 14 stops of dynamic range. Whether in regular scenes or low-light environments, the TERRA 4K captures low-noise, wide-latitude images effortlessly. Its high-speed and low-noise 4K CMOS image sensor, with a sub-S35 image format (crop factor over FF as 1.85), enables native frame rates of up to 100fps. This allows the TERRA 4K to record 4K wide at up to 100fps, 3K wide at up to 150fps, and 2K wide at up to 240fps. Furthermore, its minimal rolling effect, attributed to the high native frame rate, ensures smooth footage even at regular fps.

Package Includes:

• 1 x TERRA Camera Body
• 1 x KineMON 5" FullHD Monitor
• 1 x SideGrip: Full Function Battery Grip
• 1 x GripBAT 45Wh for SideGrip
• 1 x KineMAG 500GB
• 1 x Kine AC Adapter
• 1 x Kine D-TAP Power Cord
• 1 x KineBACK Module
• 1 x KineKIT-TERRA
• 1 x TERRA Solid Case
• 1 x WIFI Control Option

RESOLUTION, FRAME RATE, AND CODECS

S35 6K HD 5760x3240 30 FPS ProRes or KRW

6K HD Wide 5760x2400 40 FPS ProRes or KRW

4K HD (Oversample) 3840x2160 30 FPS ProRes

4K HD Wide (Oversample) 3840x1600 40 FPS ProRes

4K HD (HiSpeed) 3840x2160 74 FPS ProRes or KRW

4K HD Wide (HiSpeed) 3840x1600 100 FPS ProRes or KRW

Golden 3K 2880x1620 30 FPS ProRes or KRW

Golden 3K Wide 2880x1200 40 FPS ProRes or KRW

Golden 2K HD (Oversample) 1920x1080 30 FPS ProRes

Golden 2K HD Wide (Oversample) 1920x800 40 FPS ProRes

M4/3 4.3K 4:3 Anamorphic 4320x3240 30 FPS ProRes or KRW

4K 4:3 Anamorphic 4096x3072 30 FPS ProRes or KRW

4K 4096x2160 44 FPS ProRes or KRW

4K Wide 4096x1716 56 FPS ProRes or KRW

4K HD 3840x2160 44 FPS ProRes or KRW

4K HD Wide 3840x1600 60 FPS ProRes or KRW

3K HD (HiSpeed) 2880x1620 115 FPS ProRes or KRW

3K HD Wide (HiSpeed) 2880x1200 150 FPS ProRes or KRW

Golden 2.2K Ana 2176x1620 30 FPS ProRes or KRW

Golden 2K Ana 2048x1536 30 FPS ProRes or KRW

Golden 2K 2048x1080 44 FPS ProRes or KRW

Golden 2K Wide 2048x860 54 FPS ProRes or KRW

Golden 2K HD 1920x1080 44 FPS ProRes or KRW

Golden 2K HD Wide 1920x800 60 FPS ProRes or KRW

S16 3K 3072x1620 59 FPS ProRes or KRW

3K Wide 3072x1280 75 FPS ProRes or KRW

3K HD 2880x1620 59 FPS ProRes or KRW

3K HD Wide 2880x1200 75 FPS ProRes or KRW

2K (HiSpeed) 2048x1080 170 FPS ProRes or KRW

2K Wide (HiSpeed) 2048x800 200 FPS ProRes or KRW

2K HD (HiSpeed) 1920x1080 170 FPS ProRes or KRW

2K HD Wide (HiSpeed) 1920x800 225 FPS ProRes or KRW

16mm 2K 2048x1080 ProRes or KRW

2K Wide 2048x860 110 FPS ProRes or KRW

2K HD 1920x1080 88 FPS ProRes or KRW

2K HD Wide 1920x800 118 FPS ProRes or KRW

TECHNICAL SPECIFICATION

Camera Type: S35 Film-Style Digital Cinema Camera

Imaging Sensor: 6K S35 Format CMOS; Crop factor over FF: 1.6

Shutter: Rolling Shutter

Lens Mount: Native KineMOUNT as an omni mount for PL/EF/SONY E/Nikon F by solid mounting adapters (PL, PL e-ND; EF, EF e-ND, EF Enhancer; SONY E; Nikon F, F Enhancer)

Record Formats:

Codec Type: Compressed Lossless KineRAW (.krw), ProRes422HQ/422/422LT/Proxy (.mov)

Codec Format: 12 bits for KineRAW, 10 bits for ProRes

Record Res:

6K: 5760x3240

4K: 3840x2160

Golden 3K: 2880x1620

4:3 Anamorphic 4.3K: 4320x3240

Max FPS:

6K: 30 fps

4K Wide: 100 fps

3K Wide: 150 fps

2K HD Wide: 225 fps

Dynamic Range: 16 stops/14 stops for Golden 3K/regular 6K

ISO/EI: Base: 1600/800; Max: 20480 for Golden 3K/regular 6K

Shutter Angle: 0.7°~358°

Monitoring: KineMON Port x1, HD Port x1, SDI x2* (*Applicable on KineBACK)

Record Media: 2.5" SSD with 7mm Height

Audio Capture: In-camera MIC; 3.5mm MIC-in; KineAudio* with 48V Phantom Power XLR (*Applicable on KineBACK)

Sync Function: Tally, AutoSlate, Beeper, Trigger, SMPTE LTC
