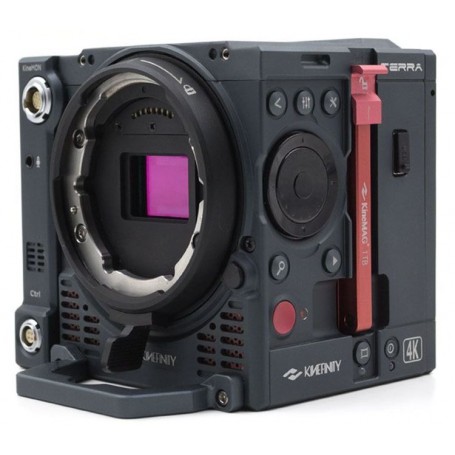

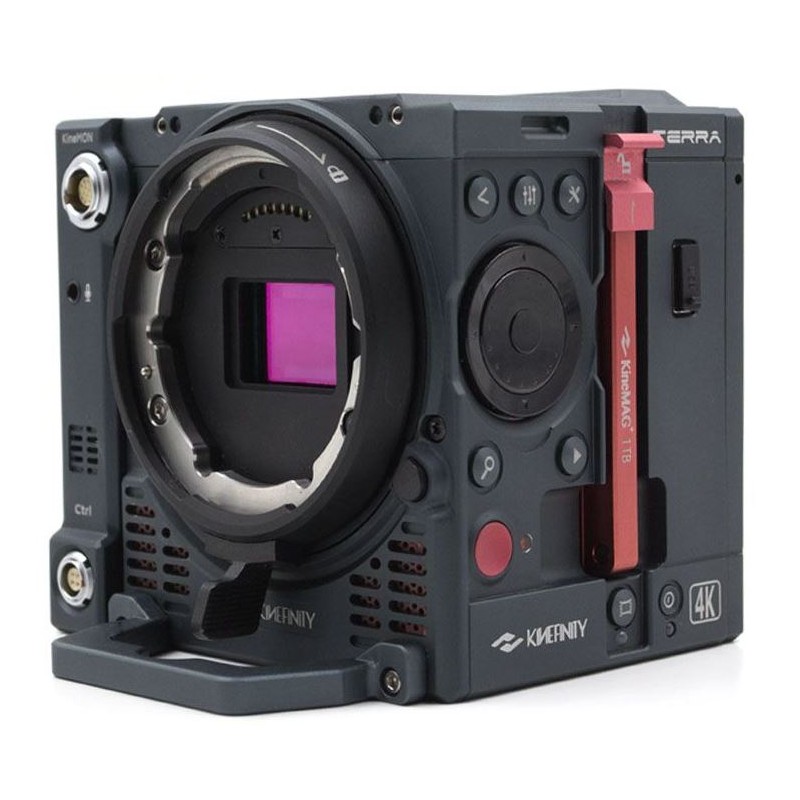

Kinefinity TERRA 4K Basic Package

The TERRA camera series introduces unparalleled performance in a compact, user-friendly DSLR-like form factor. Available in three models – TERRA 4K, TERRA 5K, and TERRA 6K – each equipped with a different CMOS imaging sensor, these cameras boast impressive capabilities, including recording at up to 100fps in 4K Wide and 200fps in 2K Wide, with the flexibility to record in Apple ProRes422HQ or lossless compressed RAW formats onto standard 2.5" SSDs.

Powerful CMOS Sensor: Wide Color Gamut and Latitude

The TERRA 4K features an innovative CMOS image sensor with Dual Native ISO settings of 3200/800 and a dynamic range of 14 stops. This sensor excels in capturing low-noise, high-latitude images in various lighting conditions, including low-light environments. With its high-speed, low-noise 4K CMOS sensor, boasting a sub-S35 image format (crop factor over FF as 1.85), the TERRA 4K achieves a native frame rate of up to 100fps. This enables the camera to record in 4K wide at speeds of up to 100fps, 3K wide at up to 150fps, and 2K wide at up to 240fps. Moreover, its rolling shutter effect is minimal, even at regular frame rates.

TERRA Lens Mounts

The TERRA camera series features the universal KineMOUNT as its native mount, compatible with various lens adapters for versatile lens options:

• PL Mounting Adapter II: For cinema PL lenses.
• PL Mounting Adapter II with e-ND: For cinema PL lenses with built-in electronic ND filters.
• EF Mounting Adapter II: For EF lenses.
• EF Mounting Adapter II with KineEnhancer: For full-frame shooting with full-frame EF lenses.
• EF Mounting Adapter II with e-ND: For EF lenses with built-in electronic ND filters.
• SONY FE/E Mounting Adapter: For SONY FE/E lenses.
• Nikon F Mounting Adapter II: For Nikon lenses.
• Nikon F Mounting Adapter II with KineEnhancer: For full-frame shooting with full-frame Nikon F lenses.

TERRA Models

The TERRA camera series includes three models – TERRA 4K, TERRA 5K, and TERRA 6K – distinguished by different CMOS sensors and body colors: deep grey, titanium grey, and black.

The TERRA 4K, the newest addition to the TERRA lineup, features a high-speed, low-noise 4K CMOS image sensor with a sub-S35 image format (crop factor over FF as 1.85). With a native frame rate of up to 100fps, the TERRA 4K can record in 4K wide at up to 100fps, 3K wide at up to 150fps, and 2K wide at up to 240fps. Additionally, its advanced CMOS process technology results in a sensor with reduced noise levels, half that of the TERRA 6K, and a base ISO of up to 1600.

Package Includes:

• 1 x TERRA Camera Body
• 1 x KineMON 5" FullHD monitor
• 1 x SideGrip: Full Function Battery Grip
• 1 x GripBAT 45Wh for SideGrip
• 1 x KineMAG 500GB
• 1 x Kine AC Adapter
• 1 x Kine D-TAP Power Cord

RESOLUTION, FRAME RATE AND CODECS

sub S35 4K Wide 4096x1720 100FPS ProRes or KRW

4K 4096x2160 75FPS ProRes or KRW

4K HD Wide 3840x1600 100FPS ProRes or KRW

4K HD 3840x2160 75FPS ProRes or KRW

3.7K 4:3 Anamorphic 3700x2800 50FPS ProRes or KRW

sub M43 3K Wide 3072x1200 150FPS ProRes or KRW

3K 3072x1620 120FPS ProRes or KRW

3K HD Wide 2880x1200 150FPS ProRes or KRW

3K HD 2880x1620 120FPS ProRes or KRW

sub S16 2K Wide 2048x860 240FPS ProRes or KRW

2K 2048x1080 196FPS ProRes or KRW

2K HD Wide 1920x800 240FPS ProRes or KRW

2K HD 1920x1080 196FPS ProRes or KRW

TECHNICAL SPECIFICATION

Camera Type: sub-S35mm Film-Style Digital Cinema Camera

Imaging Sensor: 4K sub-S35mm Format CMOS, Crop factor over FF: 1.85

Shutter: Rolling Shutter (Very weak rolling effect)

Lens Mount: Native KineMOUNT as omni mount to be PL/EF/SONY E/Nikon F by solid mounting adapters (PL, PL e-ND, EF, EF e-ND, EF Enhancer, SONY E, Nikon F, F Enhancer)

Record Formats:

Codec Type: Compressed Lossless KineRAW (.krw), ProRes422HQ/422/422LT/Proxy (.mov)

Bit Depth: 12 bits (KineRAW), 10 bits (ProRes)

Record Res:

4K: 4096x2160

3K: 3072x1620

2K: 2048x1080

3.7K 4:3 Anamorphic: 3700x2800

Max FPS:

100@4K Wide

150@3K Wide

240@2K Wide

Dynamic Range: 14 stops

ISO/EI:

Dual Native/Base ISO: 3200 (from 1280), 800 (below 1280)

Max: 20480

Shutter Angle: 0.7°~358°

Monitoring: KineMON Port x1, HD Port x1, SDI x2* (*Applicable on KineBACK)

Record Media: 2.5" SSD with 7mm Height

Audio Capture: In-camera MIC, 3.5mm MIC-in, KineAudio* with 48V Phantom Power XLR (*Applicable on KineBACK)

Sync Function: Tally, AutoSlate, Beeper, Trigger, SMPTE LTC*, 3D/Multi-cam Sync* (*Applicable on KineBACK)

LUT: Preset: Neutral/Flat, Support Custom 3D LUT

Power: Power In: DC IN 11~19V/SideGrip/V-Mount* (21W) (*Applicable on KineBACK)

Body Color: Titanium Grey

Weight: 2.1 lb / 990 g (*Only Body)

Size: 4.5x4.3x3.7" / 115x110x95 mm (*W/o projections, WxHxL)

Operating Temp: 0°C to +40°C
