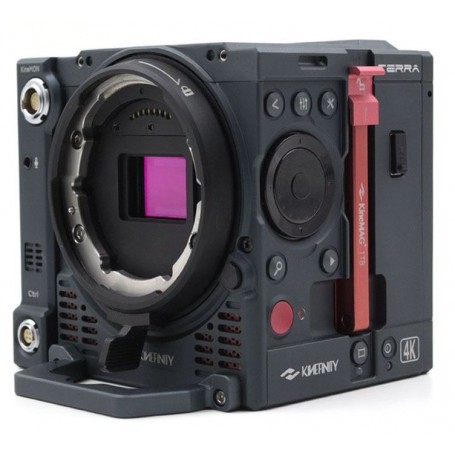

Kinefinity TERRA 4K Body

TERRA stands as the epitome of compact cinema cameras, blending high performance with DSLR-like usability. Available in three models based on different CMOS imaging sensors – TERRA 4K/5K/6K – each variant offers remarkable capabilities. All TERRA models support shooting at up to 100fps in 4K Wide and 200fps in 2K Wide, while also providing the option to record in Apple ProRes422HQ or lossless compressed RAW onto standard 2.5" SSDs.

Powerful CMOS Sensor: Wide Color Gamut and Latitude

The TERRA 4K boasts an innovative CMOS image sensor equipped with Dual Native ISO settings of 3200/800 and a dynamic range of 14 stops. This sensor excels in capturing low-noise, high-latitude imagery, even in challenging lighting conditions. With its high-speed, low-noise 4K CMOS sensor featuring a sub-S35 image format (crop factor over FF as 1.85), the TERRA 4K achieves exceptional results. Its native frame rate of up to 100fps enables recording in 4K wide at 100fps, 3K wide at 150fps, and 2K wide at 240fps. Additionally, its low rolling effect, attributed to the high native frame rate, ensures smooth footage even at regular frame rates.

TERRA Lens Mounts

The TERRA camera features a universal KineMOUNT as its native mount, compatible with various lens types via adapters. This flexibility allows users to seamlessly switch between different lenses and mounts, maximizing creative possibilities. Attaching adapters to the KineMOUNT is quick and hassle-free, eliminating the need for adjusting FFD (flange focal distance).

• PL Mounting Adapter II: For cinema PL lenses
• PL Mounting Adapter II with e-ND: For cinema PL lenses with built-in electronic ND
• EF Mounting Adapter II: For EF lenses
• EF Mounting Adapter II with KineEnhancer: Enables equivalent full-frame shooting with full-frame EF lenses
• EF Mounting Adapter II with e-ND: For EF lenses with built-in electronic ND
• SONY FE/E Mounting Adapter: For SONY FE/E lenses (Note: Current E mounting adapter supports only full manual lenses like Fuji MK18-55, 50-135)
• Nikon F Mounting Adapter II: For Nikon lenses
• Nikon F Mounting Adapter II with KineEnhancer: Enables equivalent full-frame shooting with full-frame Nikon F lenses

Note: EF mounting adapter supports electronic iris control, while Nikon F mounting adapter does not. However, it can support G lens iris control via a technical ring. Individual mounting adapters are accessories and are not included with the camera body.

Package Includes

• 1 x Kinefinity TERRA 4K Body

Resolution, Frame Rate, and Codecs

Image Format Format Resolution Max FPS Codec

Sub S35 4K Wide 4096x1720 100FPS ProRes or KRW

4K - 4096x2160 75FPS ProRes or KRW

4K HD Wide - 3840x1600 100FPS ProRes or KRW

4K HD - 3840x2160 75FPS ProRes or KRW

3.7K 4:3 Anamorphic - 3700x2800 50FPS ProRes or KRW

2K Wide (Oversample) - 2048x860 100FPS ProRes

2K (Oversample) - 2048x1080 75FPS ProRes

2K HD Wide (Oversample) - 1920x800 100FPS ProRes

2K HD (Oversample) - 1920x1080 75FPS ProRes

Sub M43 - - - -

3K Wide - 3072x1200 150FPS ProRes or KRW

3K - 3072x1620 120FPS ProRes or KRW

3K HD Wide - 2880x1200 150FPS ProRes or KRW

3K HD - 2880x1620 120FPS ProRes or KRW

Sub S16 - - - -

2K Wide - 2048x860 240FPS ProRes or KRW

2K - 2048x1080 196FPS ProRes or KRW

2K HD Wide - 1920x800 240FPS ProRes or KRW

2K HD - 1920x1080 196FPS ProRes or KRW

Technical Specification

Camera Type: Sub-S35mm Film-Style Digital Cinema Camera

Imaging Sensor: 4K Sub-S35mm Format CMOS (Crop factor over FF: 1.85)

Shutter: Rolling Shutter (Very weak rolling effect)

Lens Mount: Native KineMOUNT (Omni mount to be PL/EF/SONY E/Nikon F by solid mounting adapters)

PL, PL e-ND, EF, EF e-ND, EF Enhancer, SONY E, Nikon F, F Enhancer

Record Formats:

Codec Type: Compressed Lossless KineRAW (.krw)

Codec Format: ProRes422HQ/422/422LT/Proxy (.mov)

Bit Depth: 12 bits (KineRAW), 10 bits (ProRes)

Record Resolutions:

4K: 4096x2160

3K: 3072x1620

2K: 2048x1080

3.7K 4:3 Anamorphic: 3700x2800

Max FPS:

100@4K Wide

150@3K Wide

240@2K Wide

Dynamic Range: 14 stops

ISO/EI:

Dual Native/Base ISO: 3200 (from 1280), 800 (below 1280)

Max: 20480

Shutter Angle: 0.7°~358°

Monitoring:

KineMON Port x1

HD Port x1

SDI x2* (Applicable on KineBACK)

Record Media: 2.5" SSD with 7mm Height

Audio Capture: In-camera MIC; 3.5mm MIC-in; KineAudio* with 48V Phantom Power XLR (Applicable on KineBACK)

Sync Function: Tally, AutoSlate, Beeper, Trigger, SMPTE LTC*, 3D/Multi-cam Sync* (Applicable on KineBACK)

LUT: Preset: Neutral/Flat, Support Custom 3D LUT

Power:

Power In: DC IN 11~19V/SideGrip/V-Mount* (Applicable on KineBACK)

Consumption: 21W

Body Color: Titanium Grey

Weight: 2.1 lb / 990 g (Only Body)

Size: 4.5x4.3x3.7" / 115x110x95 mm (W/o projections, WxHxL)

Operating Temp: 0°C to +40°C
