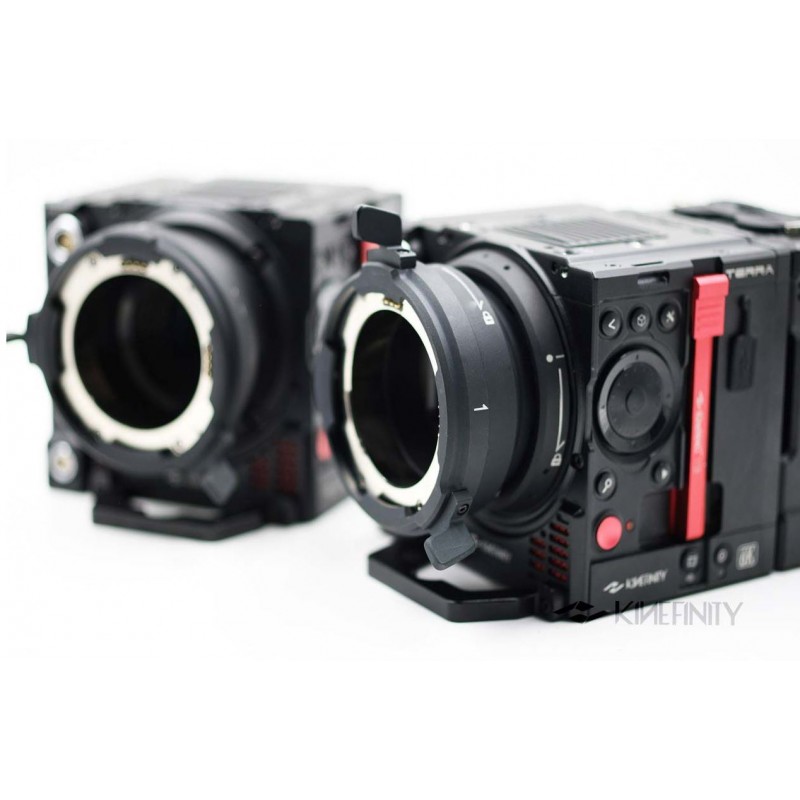

Kinefinity TERRA 6K Pro Package

Introducing TERRA, the cinema camera that combines high performance with DSLR-like usability, all in a compact size. Available in three models - TERRA 4K/5K/6K - each capable of shooting up to 100fps @4K Wide and 200fps @2K Wide, and recording in Apple ProRes422HQ or lossless compressed RAW onto standard 2.5″ SSD. Notably, TERRA 4K boasts Dual Native ISO : 3200/800 for enhanced versatility.

The TERRA Pro package includes an extensive array of accessories and in-camera options, such as the professional KineBACK module, the robust and reliable KineKIT-TERRA, WIFI control option, and the durable TERRA solid case, surpassing the basic package in utility and functionality.

Equipped with a universal KineMOUNT as the native mount, TERRA seamlessly integrates with various lens types using adapters. The lock-type mount design, introduced since 2014, ensures superior stability, particularly beneficial for professional video shoots employing follow-focus gear.

The TERRA Lens Mounts include:

• PL Mounting Adapter II: For cinema PL lenses
• PL Mounting Adapter II with e-ND: For cinema PL lenses with built-in electronic ND
• EF Mounting Adapter II: For EF lenses
• EF Mounting Adapter II with KineEnhancer: For equivalent full-frame shooting with full-frame EF lenses
• EF Mounting Adapter II with e-ND: For EF lenses with built-in electronic ND
• SONY FE/E Mounting Adapter: For SONY FE/E lenses (note: E-mount adapter currently supports only full manual lenses like Fuji MK18-55, 50-135)
• Nikon F Mounting Adapter II: For Nikon lenses
• Nikon F Mounting Adapter II with KineEnhancer: For equivalent full-frame shooting with full-frame Nikon F lenses

Please note that the EF mounting adapter supports electronic iris-control, while the Nikon F mounting adapter does not support electronic iris-control but can manage G lens iris-control using a technical ring. Individual mounting adapters are accessories and are not included with the body upon purchase.

The package includes:

• 1 x TERRA Camera Body
• 1 x KineMON 5" FullHD monitor
• 1 x SideGrip: Full Function Battery Grip
• 1 x GripBAT 45Wh for SideGrip
• 1 x KineMAG 500GB
• 1 x Kine AC Adapter
• 1 x Kine D-TAP Power Cord
• 1 x KineBACK Module
• 1 x KineKIT-TERRA
• 1 x TERRA Solid Case
• 1 x WIFI Control Option

Resolution, Frame Rate, and Codecs

S35 6K HD 5760x3240 30FPS ProRes or KRW

6K HD Wide 5760x2400 40FPS ProRes or KRW

4K HD (Oversample) 3840x2160 30FPS ProRes

4K HD Wide (Oversample) 3840x1600 40FPS ProRes

4K HD (HiSpeed) 3840x2160 74FPS ProRes or KRW

4K HD Wide (HiSpeed) 3840x1600 100FPS ProRes or KRW

Golden 3K 2880x1620 30FPS ProRes or KRW

Golden 3K Wide 2880x1200 40FPS ProRes or KRW

Golden 2K HD (Oversample) 1920x1080 30FPS ProRes

Golden 2K HD Wide (Oversample) 1920x800 40FPS ProRes

M4/3 4.3K 4:3 Anamorphic 4320x3240 30FPS ProRes or KRW

4K 4:3 Anamorphic 4096x3072 30FPS ProRes or KRW

4K 4096x2160 44FPS ProRes or KRW

4K Wide 4096x1716 56FPS ProRes or KRW

4K HD 3840x2160 44FPS ProRes or KRW

4K HD Wide 3840x1600 60FPS ProRes or KRW

3K HD (HiSpeed) 2880x1620 115FPS ProRes or KRW

3K HD Wide (HiSpeed) 2880x1200 150FPS ProRes or KRW

Golden 2.2K Ana 2176x1620 30FPS ProRes or KRW

Golden 2K Ana 2048x1536 30FPS ProRes or KRW

Golden 2K 2048x1080 44FPS ProRes or KRW

Golden 2K Wide 2048x860 54FPS ProRes or KRW

Golden 2K HD 1920x1080 44FPS ProRes or KRW

Golden 2K HD Wide 1920x800 60FPS ProRes or KRW

S16 3K 3072x1620 59FPS ProRes or KRW

3K Wide 3072x1280 75FPS ProRes or KRW

3K HD 2880x1620 59FPS ProRes or KRW

3K HD Wide 2880x1200 75FPS ProRes or KRW

2K (HiSpeed) 2048x1080 170FPS ProRes or KRW

2K Wide (HiSpeed) 2048x800 200FPS ProRes or KRW

2K HD (HiSpeed) 1920x1080 170FPS ProRes or KRW

2K HD Wide (HiSpeed) 1920x800 225FPS ProRes or KRW

16mm 2K 2048x1080 88FPS

2K Wide 2048x860 110FPS ProRes or KRW

2K HD 1920x1080 88FPS ProRes or KRW

2K HD Wide 1920x800 118FPS ProRes or KRW

Technical Specification

Camera Type: S35 Film-Style Digital Cinema Camera

Imaging Sensor: 6K S35 Format CMOS

Crop factor over FF: 1.6

Shutter: Rolling Shutter

Lens Mount: Native KineMOUNT as an omni mount to accommodate PL/EF/SONY E/Nikon F via solid mounting adapters

Mounting Adapter Options: PL, PL e-ND, EF, EF e-ND, EF Enhancer, SONY E, Nikon F, F Enhancer

Record Formats:

Codec Type: Compressed Lossless KineRAW (.krw), ProRes422HQ/422/422LT/Proxy (.mov)

Bit Depth: 12 bits for KineRAW, 10 bits for ProRes

Record Resolutions:

6K: 5760x3240

4K: 3840x2160

Golden 3K: 2880x1620

4:3 Anamorphic: 4320x3240

Maximum FPS:

6K: 30@6K

4K Wide: 100@4K Wide

3K Wide: 150@3K Wide

2K HD Wide: 225@2K HD Wide

Dynamic Range: 16 stops for Golden 3K, 14 stops for regular 6K

ISO/EI:

Base: 1600/800

Max: 20480 for Golden 3K and regular 6K

Shutter Angle: 0.7°~358°

Monitoring: KineMON Port x1, HD Port x1, SDI x2 (Applicable on KineBACK)

Record Media: 2.5" SSD with 7mm Height

Audio Capture: In-camera MIC, 3.5mm MIC-in, KineAudio* with 48V Phantom Power XLR (Applicable on KineBACK)

Sync Function: Tally, AutoSlate, Beeper, Trigger, SMPTE LTC*, 3D/Multi-cam Sync* (Applicable on KineBACK)

LUT: Preset: Neutral/Flat, Support Custom LUT

Power:

Power In: DC IN 11~19V/SideGrip/V-Mount*

Consumption: 21W (*Applicable on KineBACK
