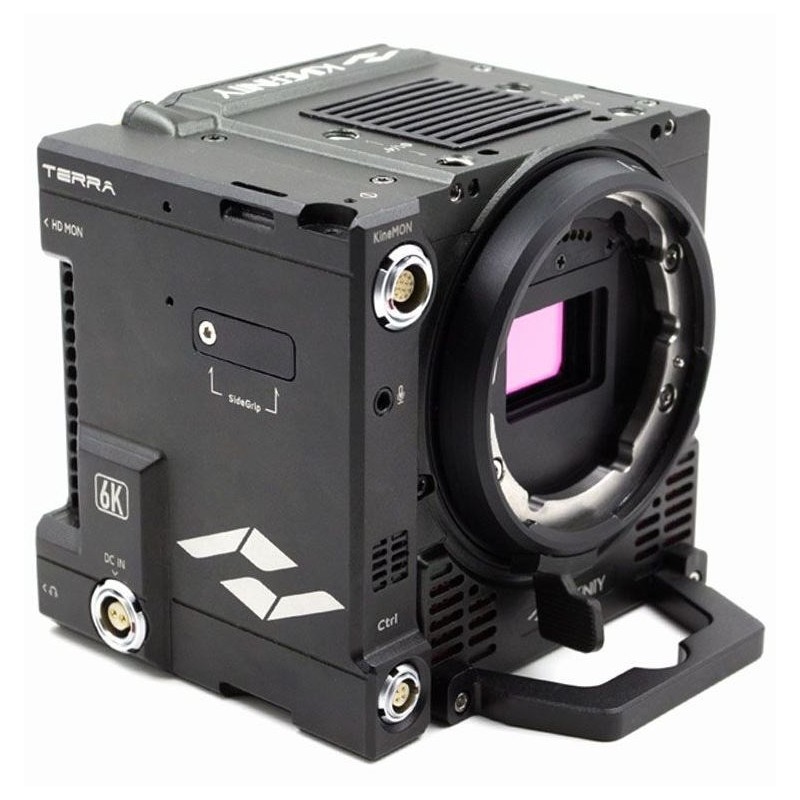

Kinefinity TERRA 6K Body

TERRA, the epitome of compact cinema cameras, boasts high performance while maintaining the ease of use akin to a DSLR. Available in three models—TERRA 4K/5K/6K—it supports impressive frame rates of up to 100fps at 4K Wide and 200fps at 2K Wide, while offering recording options in Apple ProRes422HQ or lossless compressed RAW on standard 2.5″ SSD.

Remarkably Lightweight: Ideal for Solo Operations

Weighing just 990g, TERRA's compact size, half or even a third of other MINI cinema cameras, makes it exceptionally versatile. Its DSLR-like form factor ensures seamless compatibility with most gimbals, reducing accessory requirements and facilitating handheld operation for solo shooters. Equipped with the new SideGrip and a 5″ fullHD KineMON, TERRA is primed for shooting.

Exceptional Imaging Performance with TERRA 6K

TERRA 6K utilizes the same 6K CMOS sensor (rolling shutter) as the KineMAX 6K, ensuring consistent image quality and high frame rates across different resolutions. With a dynamic range of up to 16 stops at golden 3K/2K and 14 stops at regular 6K, TERRA 6K captures stunning visuals. Offering frame rates of 6K@30fps, 4K wide@100fps (HiSpeed mode), and 2K wide@225fps (HiSpeed mode), it excels in versatility.

Efficient Post-Production Workflow: ProRes or RAW

TERRA simplifies post-production with the ability to record in ProRes 422HQ at resolutions of 4K, 5K, or 6K, ensuring a rapid workflow without compromising on quality. It stands out as the sole camera capable of recording ProRes 422HQ at 5K or 6K. Additionally, users have the option to record clips in lossless compressed RAW (KineRAW .krw), compatible with SCRATCH since v8.4, or transcode into CinemaDNG and ProRes4444 using KineStation software provided by Kinefinity.

Package Contents:

• 1 x Kinefinity TERRA 6K Body

RESOLUTION, FRAME RATE, AND CODECS

S35 6K HD 5760x3240 30FPS ProRes or KRW

S35 6K HD Wide 5760x2400 40FPS ProRes or KRW

S35 4K HD (Oversample) 3840x2160 30FPS ProRes

S35 4K HD Wide (Oversample) 3840x1600 40FPS ProRes

S35 4K HD (HiSpeed) 3840x2160 74FPS ProRes or KRW

S35 4K HD Wide (HiSpeed) 3840x1600 100FPS ProRes or KRW

S35 Golden 3K 2880x1620 30FPS ProRes or KRW

S35 Golden 3K Wide 2880x1200 40FPS ProRes or KRW

S35 Golden 2K HD (Oversample) 1920x1080 30FPS ProRes

S35 Golden 2K HD Wide (Oversample) 1920x800 40FPS ProRes

M4/3 4.3K 4:3 Anamorphic 4320x3240 30FPS ProRes or KRW

M4/3 4K 4:3 Anamorphic 4096x3072 30FPS ProRes or KRW

M4/3 4K 4096x2160 44FPS ProRes or KRW

M4/3 4K Wide 4096x1716 56FPS ProRes or KRW

S35 4K HD 3840x2160 44FPS ProRes or KRW

S35 4K HD Wide 3840x1600 60FPS ProRes or KRW

S35 3K HD (HiSpeed) 2880x1620 115FPS ProRes or KRW

S35 3K HD Wide (HiSpeed) 2880x1200 150FPS ProRes or KRW

S35 Golden 2.2K Ana 2176x1620 30FPS ProRes or KRW

S35 Golden 2K Ana 2048x1536 30FPS ProRes or KRW

S35 Golden 2K 2048x1080 44FPS ProRes or KRW

S35 Golden 2K Wide 2048x860 54FPS ProRes or KRW

S35 Golden 2K HD 1920x1080 44FPS ProRes or KRW

S35 Golden 2K HD Wide 1920x800 60FPS ProRes or KRW

S16 3K 3072x1620 59FPS ProRes or KRW

S16 3K Wide 3072x1280 75FPS ProRes or KRW

S35 3K HD 2880x1620 59FPS ProRes or KRW

S35 3K HD Wide 2880x1200 75FPS ProRes or KRW

S35 2K (HiSpeed) 2048x1080 170FPS ProRes or KRW

S35 2K Wide (HiSpeed) 2048x800 200FPS ProRes or KRW

S35 2K HD (HiSpeed) 1920x1080 170FPS ProRes or KRW

S35 2K HD Wide (HiSpeed) 1920x800 225FPS ProRes or KRW

16mm 2K 2048x1080 88FPS ProRes or KRW

16mm 2K Wide 2048x860 110FPS ProRes or KRW

16mm 2K HD 1920x1080 88FPS ProRes or KRW

16mm 2K HD Wide 1920x800 118FPS ProRes or KRW

TECHNICAL SPECIFICATION

Camera Type: S35 Film-Style Digital Cinema Camera

Imaging Sensor: 6K S35 Format CMOS (Crop factor over FF: 1.6)

Shutter: Rolling Shutter

Lens Mount: Native KineMOUNT with omni mount compatibility for PL/EF/SONY E/Nikon F via solid mounting adapters (PL, PL e-ND, EF, EF e-ND, EF Enhancer, SONY E, Nikon F, F Enhancer)

Record Formats:

Codec Type: Compressed Lossless KineRAW (.krw) (12bits)

Codec Format: ProRes422HQ/422/422LT/Proxy (.mov) (10bits)

Record Resolutions: 6K (5760x3240), 4K (3840x2160), Golden 3K (2880x1620), 4K 4:3 Anamorphic (4320x3240, 4:3)

Maximum FPS: 30@6K, 100@4K Wide, 150@3K Wide, 225@2K HD Wide

Dynamic Range: 16 stops/14 stops (Golden 3K/regular 6K)

ISO/EI: Base: 1600/800, Max: 20480 (Golden 3K/regular 6K)

Shutter Angle: 0.7°~358°

Monitoring: KineMON
