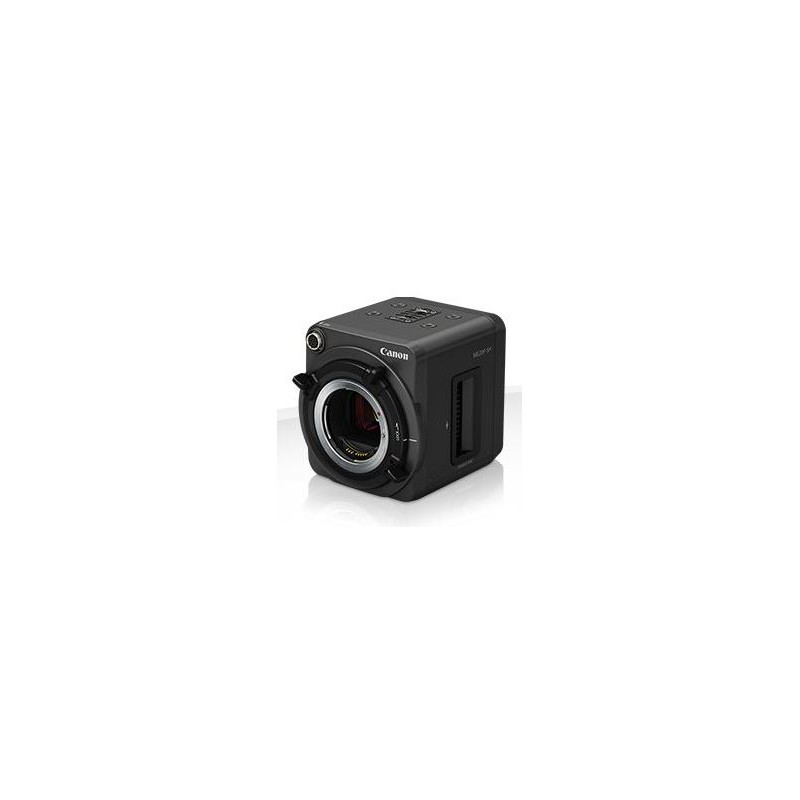

Canon Multi Purpose ME20F-SH Camcorder

Boasting an impressive four million ISO rating, the Canon ME20F-SH Camera excels in capturing video at resolutions of up to 1920 x 1080p 60, supporting both NTSC and PAL broadcast frame rates. Its full-frame 35mm-sized sensor, containing around 2.26 million pixels, features pixels approximately 7.5 times larger than those found in typical Canon Full-frame DSLR cameras, contributing to its remarkable ISO performance.

Powered by a Canon DIGIC DV 4 image processor, this camera offers a dynamic range of 12 stops, accompanied by Wide DR and Canon Log gamma profiles to preserve both highlight and shadow details. Despite its compact size, the camera includes 2 x HD/3G-SDI outputs and a single HDMI output, along with Genlock-in for seamless integration into multi-camera setups. Furthermore, its Cinema EF Lens mount ensures a secure attachment for versatile shooting scenarios.

Compact yet versatile, this camera fits snugly into smaller spaces and can be adapted for various applications using optional accessories. With sensor photosites measuring 19 micrometers, significantly larger than those of standard Canon 35mm DSLR sensors, it delivers exceptional performance in low-light conditions.

Offering HD capture capabilities at various frame rates including 59.94P, 59.94i, 50.00P, 50.00i, 29.97P, 25.00P, and 23.98P, this camera is geared towards professional workflows with features like HD/3G-SDI connectors, genlock input, and On-Screen Display (OSD) available on HDMI and the primary SDI output.

Equipped with a built-in filter stack containing clear, ND 1/8, ND 1/64, and IR cut filters, users have flexibility in managing light conditions. Additionally, built-in features like One-shot AF and Push Auto Iris simplify focusing and exposure adjustments, respectively, ensuring optimal image quality even in dynamic lighting environments.

The locking cinema EF mount not only supports EF mount lenses but also provides enhanced stability compared to standard EF mounts. Moreover, the camera's 12-pin lens terminal facilitates connectivity with EF mount CINE-SERVO lenses or 2/3" broadcast lenses using compatible third-party adapters.

Camera Specifications:

Image Sensor:

Type: 35mm Full Size CMOS Sensor

Filter: RGB Primary Colour Filter (Bayer array)

Effective Pixels per Sensor: Approx. 2.26MP (2000 x 1128)

Minimum Illumination: 0.0005 lux or less (Gain 75dB, f/1.2, 29.97P, 50 IRE)

Horizontal Resolution: Depends on the lens used.

Lens:

Lens Mount: Canon EF mount with Cinema Lock

ND Filter: Yes, 2 density (1/8, 3 stops or 1/64, 6 stops) Manually selected electronic control

Focus Control: Manual Focus using lens or via RC-V100 Remote Control; One Shot AF via assignable button

Iris Control: Manual; 1/2 stop increments. Push Auto Iris via assignable button. Auto (combined function combining Iris, Gain, Shutter, and ND filter operation)

Aperture Range: Depending on selected lens

Filter Diameter: Depending on selected lens

Image Stabilization System: Depending on selected lens

Digital Tele Converter: Yes: X2/X4 teleconverter

Image Processor:

Type: DIGIC DV 4

Sampling Accuracy: YbCbCr 422 via 3G/HD-SDI; RGB 444, YCbCr 444, YCbCr 422 via HDMI

Bit Depth: 10 bit (8 bit effective)

Recording:

Video Storage Media: External Recording Device

Recording File Format: Depending on External Device

Recording Frame Rate:

3G/HD-SDI Output: 1920x1080, 1280x720

HDMI Output: 1920x1080, 1280x720, 640x480

Slow/Fast Motion: No

Interval Record: No

Frame Record: No

Pre Record (Cache Record): No

Scan Reverse: No

Custom Picture Options: Nine Custom Picture options: Canon Log, Wide DR, EOS Standard, CP1 - CP6. User customizable settings: Black, Black Gamma, Knee, Sharpness, Noise Reduction, White Balance. Adjustable for Chroma Key performance¹

HD->SD Conversion: No

System:

Inputs/Outputs:

Automatic Exposure Settings: Shutter Priority, Aperture Priority, Auto Gain Control (AGC)¹

Audio In: 3.5mm stereo mini jack, plug-in power mic supported

Headphone Output: No

Video Monitor Output: Yes, 3G/HD-SDI (BNC) OSD output compatible, HDMI.

HDMI: Yes. Output only,

USB: No

3G/HD-SDI Output: Yes, X2; Output 1 OSD compatible, Output 2 Clean output only.

Time Code: No

Genlock: Yes, input only, BNC

Component Out: No

AV Terminal: No

DC Input: Yes. 4-Pin XLR, 2-Pin connection. Input voltage 11 - 17V

Lens Terminal: Yes, 12-pin connector¹

Remote Control Terminal: Yes, x2: Remote A: 2.5mm mini jack/Remote B: Circular 8-pin. Both utilize Canon Unique Protocol.

Memory Card Connector: Yes, microSD card (for firmware update only, no recording capability)

Colour Bars: Yes, SMPTE, EBU, and ARIB depending on system frequency

Misc:

Tally Lamp: No

Custom Key: No

User Assigned Functions: Yes, 4 buttons. Assignable items include One-Shot AF, Push Auto Iris, ABB, AE Shift +, AE Shift -, Bar, Set WB, Tele-converter, Infrared, External Rec, Custom Picture, Camera Mode A/M. These items work with the RC-V100 remote controller.

Custom Dial: No

Accessories:

Supplied: 2-pin Power Connector

Optional: RC-V100 remote Control Unit, Tripod Adapter RB-1, RS-422 8-pin remote cables RR-10 (10m)/ RR-100 (100m) AC-E19 Compact Power Adapter

Power:

Input:

Operating Voltage: DC: 11 - 17V via 4-pin XLR or 2pin connector

Power Consumption: Approx 12W (Body Only)

Miscellaneous:

Dimensions: 102mm x 116mm x 113mm (W x H x D) 4.0 x 4.6 x 4.4 inches

Weight (Camera Only): Approx. 1.1 kg (2.4 lbs)

Operating Temperature Range: Approx. 0 to 40°C, 85% (relative humidity), Approx. -5 to 45°C, 60% (relative humidity)
