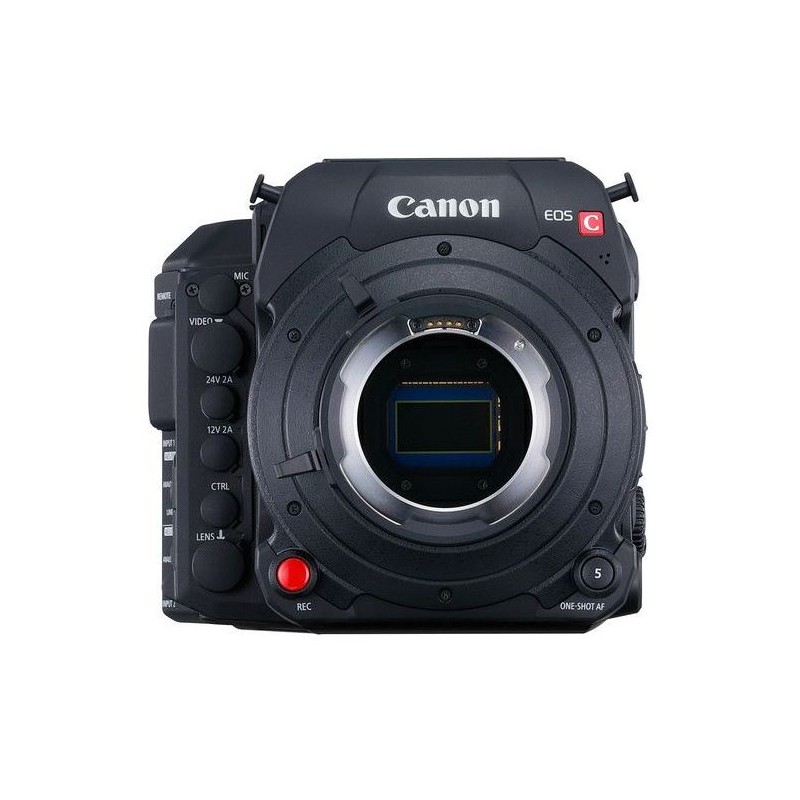

Canon EOS Cinema C700 PL Camcorder

Canon's expertise in image processing is encapsulated in the EOS C700 PL Cinema Camera, delivering cinema-grade quality in a production-ready form factor. Equipped with an ARRI PL lens mount, this camera offers compatibility with a wide range of vintage and modern cinema lenses. The PL mount's 12-o'clock position houses the Cooke /i lens interface, transmitting real-time lens data like aperture, focal length, and focus distance for electronic display and VFX metadata.

At the heart of the C700 lies a 4.5K CMOS image sensor, surpassing DCI 4K resolution and boasting a dynamic range of approximately 15 stops, ideal for today's 4K and HDR productions. Recording capabilities include 4K at 60p to CFast 2.0 cards using XF-AVC format, as well as internal ProRes recording for quick turnarounds without transcoding. Additionally, raw recording is facilitated by Canon's Codex Digital Recorder add-on.

Despite its advanced features, the C700 maintains a user-friendly interface, with basic functions accessible via six buttons around the screen and more advanced settings navigable through a selection dial and set buttons. Its side panel offers a plethora of I/O options for various applications, from ENG-style run-and-gun to high-budget cinema productions.

The modular design of the C700 allows users to customize the form factor to suit their needs, whether shoulder-mounted for handheld shooting or secured to professional grip equipment. Notably, native V-mount battery support is available for the first time on a Cinema EOS camera.

Recording Features:

High Frame-Rate Support: Capture high frame rates, including 2K frame rates up to 240 fps and up to 120 fps with the Codex Digital raw recorder.

Internal ProRes Recording: Direct-to-edit workflows with Apple's ProRes codec, supporting various formats up to 4K 422 HQ.

Multi-Format Recording: Simultaneous recording of low-data-rate proxy files alongside XF-AVC or ProRes on CFast 2.0 cards.

Raw Recording: Utilize Codex Digital raw recorder for 12-bit DCI 4K raw files.

Monitoring Features:

HDR: Connect to HDR-compatible monitors for enhanced dynamic range visibility.

Surrounding Area: Display a translucent area around the recorded image.

ACES Support: Deliver standardized color space images for improved workflow efficiency.

Anamorphic De-Squeeze: Support for anamorphic lenses with adjustable magnification factor.

General Features:

Canon Log: Offers Canon Log, Canon Log 2, and Canon Log 3 curves for enhanced post-production grading.

Lens Control: Remote control of compatible lens functions via a 12-pin lens connection.

B4 Lens Support: Use traditional 2/3" ENG lenses with the optional B4 lens mount adapter.

Intuitive Operation: Assignable buttons and soft keys for easy adjustment of camera settings.

ND Filters: Dual motorized filter wheels for seamless ND filtration.

Upgradability:

Mount Switching: Canon service center can switch mounts as required.

Sensor Block: Factory-upgradable for future enhancements.

IP Streaming Support: Stream video online in real-time via compatible IP decoders and streaming software, enabling live streaming within existing production workflows.

Package includes

• Canon EOS C700 PL Cinema Camera
• Handle Unit
• Body Cap
• Tripod Adapter Base
• 4 x Base Feet
• WFT Attachment
• Mic Holder
• 2 x Measuring Hooks
• Reinforcing Plate for Codex Recorder
• Cable Clamp Base
• Allen Wrench
• Button Battery

Specifications

Sensor: CMOS Sensor

Image Processing: Triple Digic DV 5

Pixels:

Total: Approx. 11.54 megapixels (4622 x 2496)

4K/2K: Approx. 8.85 megapixels (4096 x 2160) - when 4096 x 2160 or 2048 x 1080 is selected as the resolution

Effective: Approx. 8.29 megapixels (3840 x 2160) - when 3840 x 2160 or 1920 x 1080 is selected as the resolution

System Frequency Selection: 59.94, 50.00, 24.00 Hz

59.94 Hz mode: 59.94p/59.94i/29.97p/23.98p

50.00 Hz mode: 50p/50i/25p

24.00 Hz mode: 24p

Mount: PL

Shutter Type: Standard

Shutter Modes:

Speed

Angle

Clear Scan

Slow

Off

Shutter Setting: Either 1/3 or 1/4 steps selected as speed increment

ISO:

Normal: 160 to 25,600

Expanded: 100 to 102,400

Gain:

Normal: -2 to 42 dB

Expanded: -6 to 54 dB

Increments: 0.5 dB when Fine is selected

ND Filter:

Normal: 2, 4, 6 stops

Expansion: 2, 4, 6, 8, 10 stops

Mechanism: Motorized

Focus Control: Manual Focus

LCD Screen: 3.0" / 7.66 cm (diagonal)

Recording Media:

CFast Card Slot: 2 x slots (records XF-AVC/ProRes), custom pictures, metadata recording

SDXC Card Slot: 1 slot (records movies (XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data

Compression Format:

Video: XF-AVC/ MPEG-4 AVC/H.264, ProRes/ Apple ProRes Codec, Raw / Uncompressed

Audio: Linear PCM (24-bit 48 kHz), 4-channel recording

Recording Formats:

XF-AVC YCC: Various resolutions with 10-bit YCC422

XF-AVC RGB: Various resolutions with 12/10-bit RGB444

ProRes YCC/RGB: Various resolutions with 10/12-bit YCC422 or 12-bit RGB444

RAW: 10/12-bit, 4096 x 2160 resolution

XF-AVC (Proxy): Various resolutions with 8-bit YCC420

Timecode: Rec run, free run, regeneration, Non-drop frame (drop frame only in 59.94 Hz mode)

Gamma: Canon Log 3, Canon Log 2, Canon Log, Wide DR

Color Space: Cinema Gamut, BT.2020 Gamut, DCI-P3 Gamut, BT.709 Gamut

LUT: BT.709, BT.2020, DCI, ACESproxy, HDR-ST2084

I/O Connectors:

Input: Genlock, Timecode, Remote, Mic (2 x XLR-3pin)

Output: Monitor (2 x outputs), SDI (4 x BNC), HDMI, Headphone (1 x jack), Video (1 x BNC), Lens terminal, Ethernet, Ctrl

Wi-Fi: IEEE 802.11b/g/n (2.4 GHz band), IEEE 802.11a/n (5 GHz band), Authentication: Open system, WPA-PSK, WPA2-PSK, Encryption: WEP-64, WEP-128, TKIP, AES

IP Streaming: Various bit-rate/resolution/frame rate options for video and MPEG-2 ACC-LC audio

Power:

Input: 12 VDC (4-pin XLR)

Output: 12/24 VDC 2 A (D-Tap)

Dimensions: 6.6 x 6.1 x 13.2" / 16.7 x 15.4 x 33.6 cm

Weight: 7.9 lb / 3.6 kg (approximately)
