Canon EOS Cinema C700 EF Camcorder

Canon's expertise in image processing culminates in the EOS C700 Cinema Camera, designed for cinema-grade productions. Featuring Canon's EF lens mount with a secure positive-locking mechanism, the C700 ensures minimal play compared to traditional mounts. At its core lies a 4.5K CMOS image sensor, surpassing DCI 4K resolution and offering a dynamic range of approximately 15 stops, ideal for modern 4K and HDR workflows.

Backed by powerful processing technology, the C700 records in 4K at 60p to CFast 2.0 cards using XF-AVC format, with the option for Apple's ProRes formats for streamlined editing. Raw recording is facilitated by Canon's Codex Digital Recorder, seamlessly integrated into the camera's modular design.

Despite its advanced capabilities, the C700 maintains a user-friendly interface, with basic functions accessible via intuitive buttons and more advanced settings easily navigable through a simple selection dial.

With versatile I/O options, the C700 accommodates various production scenarios, from ENG-style run-and-gun setups to high-budget cinema projects. Its modular design allows customization of the form factor to suit individual preferences, with native V-mount battery support for extended shooting sessions.

Recording Features:

High Frame-Rate Support: Capture action with high frame rates, including up to 240 fps in 2K crop mode and up to 120 fps with the Codex Digital raw recorder.

Internal ProRes Recording: Direct-to-edit workflows are facilitated by internal ProRes codecs, offering efficient editing without transcoding.

Multi-Format Recording: Simultaneously record low-data-rate proxy files alongside primary recordings for convenient editing or client review.

Raw Recording: Utilize Codex Digital raw recorder for pristine 12-bit DCI 4K raw files compatible with robust Codex Digital workflow.

Monitoring Features:

HDR: Connect to HDR monitors for enhanced dynamic range visibility, with HDR simulation available through compatible viewfinders.

Surrounding Area: Monitor translucent area around the recorded frame for enhanced situational awareness.

ACES Support: Deliver standardized color space with ACESproxy support for improved workflow efficiency.

Anamorphic De-Squeeze: Support for anamorphic lenses with customizable de-squeeze options for accurate monitoring.

General Features:

Canon Log: Benefit from Canon Log, Canon Log 2, and Canon Log 3 curves for versatile recording options.

Dual Pixel CMOS AF: Achieve rapid and precise focus with phase-detection pixels covering 80% of the sensor area.

Lens Control: Remote control of compatible lens functions via 12-pin lens connection.

B4 Lens Support: Use traditional ENG lenses with the B4 lens mount adapter for versatile shooting options.

Intuitive Operation: Easily navigate settings via assignable buttons and intuitive menu system.

ND Filters: Dual motorized filter wheels offer 2, 4, and 6-stop ND filters, extendable to 8 and 10-stop settings.

Upgradability: Adapt the camera to evolving production needs with mount and sensor block upgrades.

IP Streaming Support: Stream video in real-time using IP streaming support, compatible with various IP decoders and streaming software.

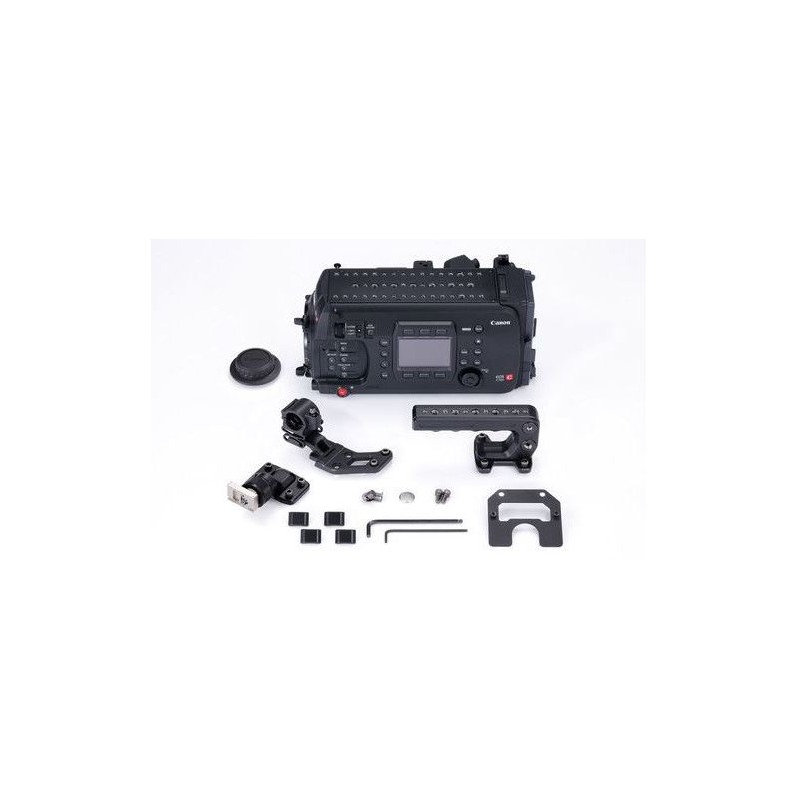

Package Contents:

• Canon EOS C700 Cinema Camera
• Handle Unit
• Body Cap
• Tripod Adapter Base
• 4 x Base Feet
• WFT Attachment
• Mic Holder
• 2 x Measuring Hooks
• Reinforcing Plate for Codex Recorder
• Cable Clamp Base
• Allen Wrench
• Button Battery

Specifications:

Sensor: CMOS Sensor with DAF Technology

Image Processing: Triple Digic DV 5

Pixels:

Total: Approx. 11.54 megapixels (4622 x 2496)

4K/2K: Approx. 8.85 megapixels (4096 x 2160) - when 4096 x 2160 or 2048 x 1080 is selected as the resolution

Effective: Approx. 8.29 megapixels (3840 x 2160) - when 3840 x 2160 or 1920 x 1080 is selected as the resolution

Raw Recording Pixels: 4512 x 2376 (with March 2017 update)

System Frequency Selection: 59.94, 50.00, 24.00 Hz

Mount: EF (cinema lock type)

Shutter Type: Standard

Shutter Modes:

Speed

Angle

Clear Scan

Slow

Off

Shutter Setting: Either 1/3 or 1/4 steps selected as speed increment

ISO:

Normal: 160 to 25,600

Expanded: 100 to 102,400

Gain:

Normal: -2 to 42 dB

Expanded: -6 to 54 dB

ND Filter:

Normal: 2, 4, 6 stops

Expansion: 2, 4, 6, 8, 10 stops

Mechanism: Motorized

Focus Control:

Manual Focus

One-Shot AF

Continuous AF

AF-Boosted M

Note: Only lenses that support AF functions can be used in any of these modes

LCD Screen: 3.0" / 7.66 cm (diagonal) Approximately: 1.036

Recording Media:

CFast Card Slot: 2 x slots (records XF-AVC/ProRes), custom pictures, metadata recording

SDXC Card Slot: 1 slot (records movies (XF-AVC (proxy), photos (JPEG), custom pictures, metadata, menus and other data)

Compression Format:

Video: XF-AVC/ MPEG-4 AVC/H.264, ProRes/ Apple ProRes Codec, Raw / Uncompressed

Audio: Linear PCM (24-bit 48 kHz), 4-channel recording

Timecode: Operation Mode: Rec run, free run, regeneration Count-Up: Non-drop frame (drop frame only in 59.94 Hz mode)

Gamma:

Canon Log 3

Canon Log 2

Canon Log

Wide DR

Color Space:

Cinema Gamut

BT.2020 Gamut

DCI-P3 Gamut

BT.709 Gamut

LUT:

BT.709

BT.2020

DCI

ACESproxy

HDR-ST2084

I/O Connectors:

Input: Genlock, Timecode, Remote, Mic (2 x XLR-3pin)

Output: Monitor (2 x outputs), SDI (4 x BNC), HDMI, Headphone, Video

Wi-Fi:

Standards: IEEE 802.11b/g/n (2.4 GHz band), IEEE 802.11a/n (5 GHz band)

Authentication: Open system, WPA-PSK, WPA2-PSK

Encryption: WEP-64, WEP-128, TKIP, AES

IP Streaming:

Bit-Rate/Resolution/Frame Rate:

9 Mbps/4 Mbps: 1920x1080 [59.94i/50.00i]

2 Mbps: 1280x720 [29.97p/25.00p]

1.5 Mbps: 720x480(/579)/[59.94i/50.00i]

Audio: MPEG-2 ACC-LC, Audio Rate: 128 Kbps (Variable Bit Rate)

Transfer Media: Wi-Fi, Ethernet

Protocols: UDP, RTP, RTP + FEC, RTSP + RTP

Error Correction: FEC

Power:

Input: 12 VDC (4-pin XLR)

Output: 12/24 VDC 2 A (D-Tap)

Dimensions: 6.6 x 6.1 x 12.9" / 16.7 x 15.4 x 32.7 cm

Weight: 7.6 lb / 3.4 kg (approximately)
