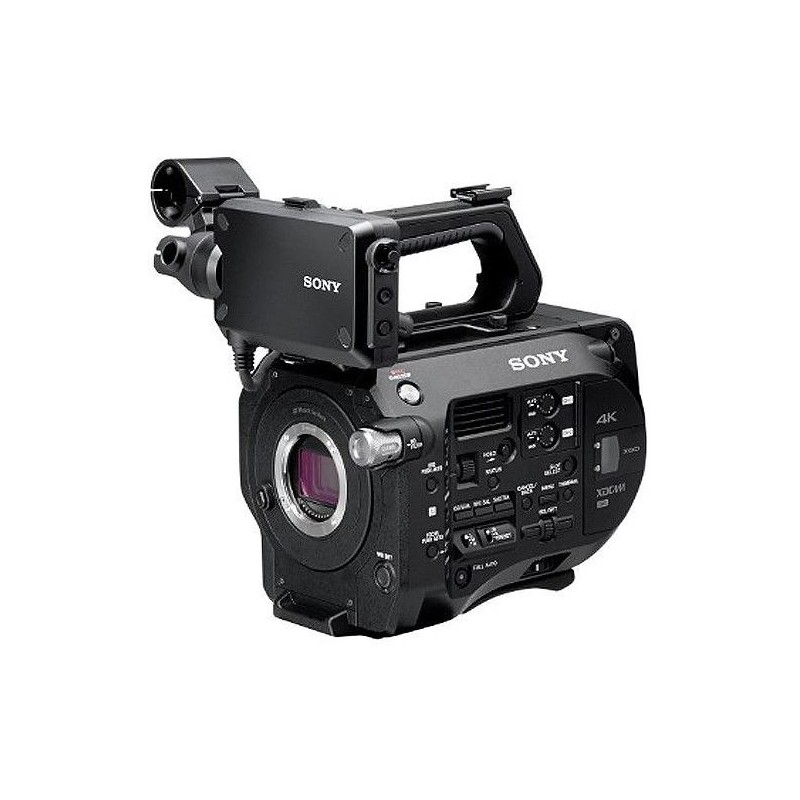

Sony PXW-FS7 Camcorder

The Sony PXW-FS7 XDCAM Super 35 Camera System is a versatile 4K camera designed for various production environments, including documentaries, reality TV, commercials, and corporate projects. With its Super 35mm sensor, this camera delivers cinematic depth of field, ensuring stunning image quality.

Featuring an E-mount crafted from stainless steel, the FS7 allows compatibility with E-mount lenses or, with optional adapters, most 35mm lenses including PL, EF, Leica, and Nikon. It records footage onto optional on-board XQD media cards in DCI (4096 x 2160), UHD (3840 x 2160) at up to 60 FPS, or HD at up to 180 FPS.

You have the flexibility to record in XAVC-I, XAVC-L, or MPEG-2 formats. However, note that MPEG-2 recording is limited to HD video due to lower data rate support compared to UHD. The camera features dual XQD media card slots for simultaneous or relay recording, and an ergonomically designed handgrip for convenient control.

To utilize faster XQD-G-E cards, firmware update 4.00 is required, available on the Sony website. Firmware 2.0, already installed on the camera, can be downloaded for free and user-installed, adding various enhancements such as expanded audio recording, support for DCI compliant 4K recording, and additional Apple ProRes codecs.

Equipped with a 4K Super35 EXMOR sensor offering 14 stops of latitude and a wide color gamut, the FS7 provides a choice of XAVC or MPEG-2 codecs. The magnesium body makes it lightweight yet robust, with features like the SmartGrip for intuitive camera operation and flexibility in shooting angles.

The FS7 records internally in 4K up to 60fps in UHD and in HD up to 180fps with XAVC-I or up to 120fps with XAVC-L. It supports simultaneous or relay recording with two XQD media slots, while an SD card slot is reserved for configuration data.

Package includes:

• Sony PXW-FS7 XDCAM Super 35 Camera System
• Body Cap
• Viewfinder
• Eyepiece
• Grip Remote Control
• Wireless LAN USB Module (IFU-WLM3) for Sony VPL-E200 Series Projectors
• Wireless Remote Commander (RMT-845)
• WA Adaptor Bracket
• MPA-AC1 AC Adapter for EVI D100 CCD Camera
• BC-U1 Battery Charger
• BP-U30 Lithium-Ion Battery
• 2 x Power Cord
• USB Cable
• CD Rom with Manuals

Specifications:

Image Device: Super 35mm Single-Chip Exmor CMOS

Effective Picture Elements:

17:9: 4096 (H) x 2160 (V)

16:9: 3840 (H) x 2160 (V)

Signal-to-Noise Ratio: 57 dB (Y)

Sensitivity:

2000 lx, 89.9% reflectance, T14 (3840 x 2160/23.98p mode 3200K)

ISO 2000 (S-Log3 Gamma D55 Light source)

Minimum Illumination: 0.7 lux: +18dB, 23.98P, Shutter OFF, ND Clear, F1.4

Signal System: NTSC / PAL

Built-in Filters: Clear, 1/4, 1/16, 1/64

LCD Monitor: 3.5" / 8.8 cm, Approx: 1.56M dots

Speaker: Monaural

Shutter Speed: 1/3 to 1/9000 of a sec

White Balance: Preset, Memory A, Memory B (1500K-50000K)/ATW

Gain Selection: -3, 0, 3, 6, 9, 12, 18 dB, AGC

Gamma Curve: STD, HG, User, S-log3

Shooting Formats:

4K 4096 x 2160: 12-bit RAW

UHD 3840 x 2160: 10-bit 4:2:2 XAVC-I, 8-bit 4:2:0 XAVC-L

2K 2048 x 1080: 12-bit Raw

HD 1920 x 1080:

10-bit 4:2:2 XAVC-I, 10-bit 4:2:2 XAVC-L, MPEG2 4:2:2

HD 1280 x 720: MPEG2 4:2:2

Audio Recording Format: LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback 2 channels)

Recording Formats:

Various XAVC-I and XAVC-L formats, MPEG2 Long GOP

Recording Frame Rate: Varies by format

Slow & Quick Motion Function: Varies by mode

Maximum Recording Time: Varies by mode and media capacity

Media Card Slots: 2 x XQD, 1 x SD (for configuration data only)

Input and Output Connectors:

Audio Input: 2 x 3-pin XLR, Line/mic/mic +48

SDI Output: 2 x BNC HD/3G-SDI, SMTPE292M/424M/425M

HDMI 2.0: 1 x Type A

USB: USB device, miniB

Headphone: 1 x Stereo mini jack

Remote: Stereo mini jack (Φ2.5 mm)

Accessory Shoe: Multi-Interface (MI) shoe

Power Requirement: 12 VDC

Power Consumption: Approx. 19 W

Battery Operating Time: Varies by battery type and recording mode

Temperature:

Operating: 32 to 104°F / 0 to 40°C

Storage: -4 to 140°F / -20 to 60°C

Dimensions (WxHxD): 6.14 x 9.41 x 9.72" / 156 x 239 x 247 mm

Weight:

Body Only: 4.4 lb / 2.0 kg

Body, Viewfinder, Eyepiece, Grip Remote Control, BP-U30 Battery, SELP28135G Lens, XQD Memory card: 9.9 lb / 4.4 kg
