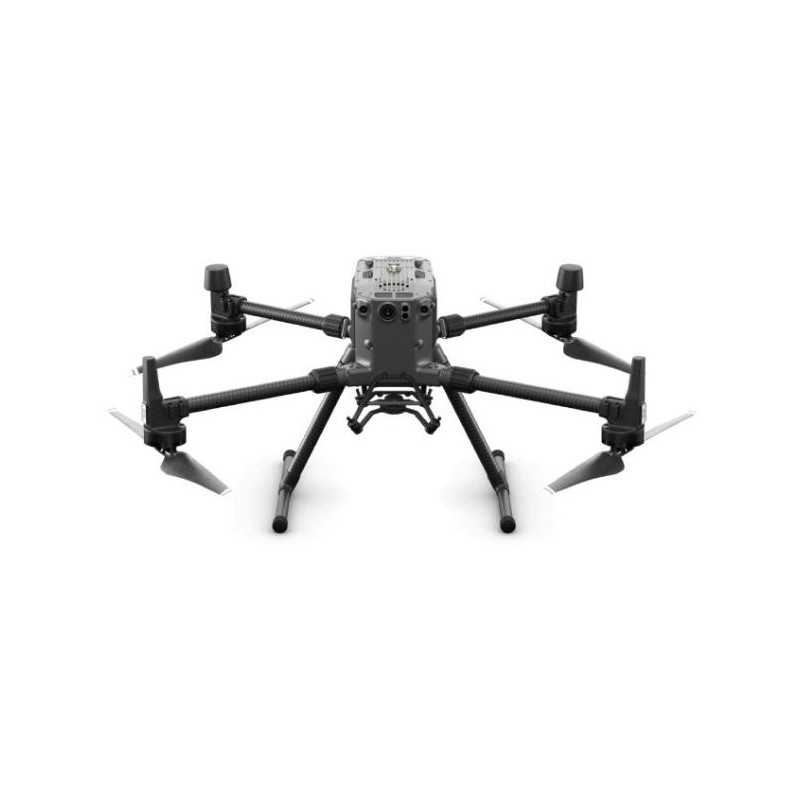

DJI Matrice 300 RTK Drone + Zenmuse H20N

The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time, advanced AI capabilities, 6 Directional Sensing & Positioning and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.

• 15 km Max Transmission
• 55-min Max Flight Time
• 6 Directional Sensing & Positioning
• Primary Flight Display
• IP45 Rating
• -20°C to 50°C Operating Temperature
• Hot-swappable Battery
• UAV Health Management System

Improved Transmission System

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports triple-channel 1080p video. Real-time auto-switching between 2.4 GHz and 5.8 GHz enables more reliable flight near high-interference environments, while AES-256 encryption offers secure data transmission.

• 15km Transmission Range
• 1080p Triple-channel Video
• 2.4 /5.8GHz Real-time Auto-switching

Enhanced Flight Performance

The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.

• 55min Max Flight Time
• 7m/s Max Descend Speed
• 7000m Service Ceiling
• 15m/s Wind Resistance
• 23 m/s Max Speed

Multiple Payload Configurations

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

• Single Downward Gimbal
• Single Upward Gimbal x Single Downward Gimbal
• Single Upward Gimbal x Dual Downward Gimbals

Live Mission Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3rd party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub.

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub9.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub.

Aviation-Grade Situational Awareness

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.

Flight Information

Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented.

Navigation Display

Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way. Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

Advanced Dual Control

Either operator can now obtain control of the aircraft or payload with a single tap. This creates new possibilities for mission strategies as well as higher flexibility during operations.

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

Professional Maintenance for Your Drone Fleet

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

Redundancy Systems for Safer Flights

The M300 RTK’s built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

More Adaptable Than Ever Before

• IP45
• Self-Heating Battery
• -20°C to 50°C
• Anti-Collision Beacon
• AirSense ADS-B Receiver

DJI Pilot

DJI Pilot is developed specifically for enterprise users to unleash the power of their DJI drones. With development made specifically for the M300 RTK, DJI Pilot optimizes your flight capability for peak performance.

DJI FlightHub

DJI FlightHub is a one-stop solution for managing your drone operations, supporting large organizations to effectively scale their aerial operations. Compatible with the M300 RTK, you can integrate FlightHub directly into your existing fleet of DJI drones and leverage its aerial intel across your organization.

Payload SDK

Integrate a variety of 3rd party payloads like gas detectors, loudspeakers, multispectral sensors, and more. Payload SDK supports DJI SkyPort, DJI SkyPort V2, and DJI X-Port. These greatly reduce the payload development lifecycle and maximize the potential of your payloads in more diverse scenarios.

Onboard SDK

Harness the full computing power of your M300 RTK. Onboard SDK supports customized development of a wide range of features such as 6 Directional Sensing and Positioning, UAV Health Management System, Waypoints 2.0, and more.

Mobile SDK

With a large network of 3rd party mobile applications, you can unlock the capabilities of your drone platform to meet specialized mission needs. Utilizing Mobile SDK, the M300 RTK supports highly customizable mobile app development.

Specs

Aircraft

Dimensions Unfolded, propellers excluded, 810×670×430 mm (L×W×H), Folded, propellers included, 430×420×430 mm (L×W×H)

Diagonal Wheelbase 895 mm

Weight (with single downward gimbal) Approx. 3.6 kg (without batteries), Approx. 6.3 kg (with two TB60 batteries)

Single Gimbal Damper’s Max Payload 930g

Max Takeoff Weight 9 kg

Operating Frequency 2.4000-2.4835 GHz, 5.725-5.850 GHz

EIRP 2.4000-2.4835 GHz: 29.5 dBm (FCC); 18.5dBm (CE), 18.5 dBm (SRRC); 18.5dBm (MIC) ; 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE), 28.5 dBm (SRRC)

Hovering Accuracy (P-mode with GPS) Vertical: ±0.1 m (Vision System enabled), ±0.5 m (GPS enabled), ±0.1 m (RTK enabled) ; Horizontal: ±0.3 m (Vision System enabled), ±1.5 m (GPS enabled), ±0.1 m (RTK enabled)

RTK Positioning Accuracy When RTK enabled and fixed: 1 cm+1 ppm (Horizontal), 1.5 cm + 1 ppm (Vertical)

Max Angular Velocity Pitch: 300°/s, Yaw: 100°/s

Max Pitch Angle 30° (P-mode, Forward Vision System enabled: 25°)

Max Ascent Speed S mode: 6 m/s, P mode：5 m/s

Max Descent Speed (vertical) S mode: 5 m/s, P mode：4 m/s

Max Descent Speed (tilt) S Mode: 7 m/s

Max Speed S mode: 23 m/s, P mode：17 m/s

Service Ceiling Above Sea Level 5000 m (with 2110 propellers, takeoff weight ≤ 7 kg) / 7000 m (with 2195 propellers, takeoff weight ≤ 7 kg)

Max Wind Resistance Max Wind Resistance 15 m/s (12 m/s when taking off or landing)

Max Flight Time 55 min

Supported DJI Gimbals Zenmuse XT2/XT S/Z30/H20/H20T/DJI P1/DJI L1

Supported Gimbal Configurations Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal, Upward and Downward Gimbals, Triple Gimbals

Ingress Protection Rating IP45

GNSS GPS+GLONASS+BeiDou+Galileo

Operating Temperature -20°C to 50°C (-4°F to 122° F)

Remote Controller

Operating Frequency 2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmitting Distance (unobstructed, free of interference) NCC/FCC: 15 km, CE/MIC: 8 km, SRRC: 8 km

EIRP 2.4000-2.4835 GHz: 29.5 dBm (FCC) 18.5dBm (CE), 18.5 dBm (SRRC); 18.5dBm (MIC) ; 5.725-5.850 GHz: 28.5 dBm (FCC); 12.5dBm (CE), 20.5 dBm (SRRC)

External battery Name: WB37 Intelligent Battery, Capacity: 4920 mAh, Voltage: 7.6V, Type: LiPo, Energy: 37.39Wh, Charging time (using BS60 Intelligent Battery Station): 70 minutes (15°C to 45°C); 130 minutes (0°C to 15°C)

Built-in battery Type: 18650 lithium ion battery (5000 mAh @ 7.2 V), Charging: Use a USB charger with specification of 12V / 2A, Rated power: 17 W, Charging time: 2 hours and 15 minutes (Using a USB charger with specification of 12V / 2A)

Battery Life Built-in battery: Approx. 2.5h, Built-in battery+External battery: Approx. 4.5h

USB Power Supply 5 V / 1.5 A

Operating Temperature -20°C to 40°C (-4 °F to 104 °F)

Vision System

Obstacle Sensing Range Forward/Backward/Left/Right: 0.7-40m, Upward/Downward: 0.6-30m

FOV Forward/Backward/Downward: 65° (H), 50° (V), Left/Right/Upward: 75°(H), 60°(V)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared ToF Sensing System

Obstacle Sensing Range 0.1-8m

FOV 30° (±15°)

Operating Environment Large, diffuse and reflective obstacles (reflectivity >10%)

Top and bottom auxiliary light

Effective lighting distance 5 m

FPV Camera

Resolution 960p

FOV 145°

Frame rate 30 fps

Intelligent Flight Battery

Name TB60

Capacity 5935 mAh

Voltage 52.8 V

Battery Type LiPo 12S

Energy 274 Wh

Net Weight Approx. 1.35 kg

Operating Temperature -4°F to 122°F (-20°C to 50°C)

Ideal storage temperature 71.6°F to 86°F (22°C to 30°C)

Charging Temperature -4°F to 104°F (-20°C to 40°C) (When the temperature is lower than 5°C, the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)

Charging time Using BS60 Intelligent Battery Station: 220V input: 60 minutes (fully charging two TB60 batteries), 30 minutes (charging two TB60 batteries from 20% to 90%), 110V input: 70 minutes (fully charging two TB60 batteries), 40 minutes (charging two TB60 batteries from 20% to 90%)

BS60 Intelligent Battery Station

Dimensions 501*403*252mm

Net Weight 8.37kg

Maximum Capacity TB60 Intelligent Flight Battery × 8, WB37 Intelligent Battery × 4

Input 100-120 VAC, 50-60 Hz / 220-240 VAC, 50-60 Hz

Max. Input Power 1070W

Output Power 100-120 V: 750 W, 220-240 V: 992 W

Operating Temperature -4°F to 104°F (-20°C to 40°C)

In the Box

Aircraft Body × 1

DJI Smart Controller Enterprise × 1

USB Charger × 1

USB-C Cable × 1

TB60 Intelligent Flight Battery × 2

WB37 Intelligent Battery × 1

2110 Propeller (CW) (pair) × 1

2110 Propeller (CCW) (pair) × 1

Landing Gear × 2

Spare Stick Cover (pair) × 1

Spare Propeller Holder × 2

Spare Gimbal Damper × 4

USB Cable (with Double A Ports) × 1

Vision System Calibration Plate × 1

Carrying Case × 1

Smart Controller Lanyard × 1

Rubber Port Cover (Set) × 1

Screws and Tools × 1

BS60 Intelligent Battery Station × 1

Cleaning Tools × 1

Zenmuse H20N

"N" for Night Vision

The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with dual zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.

• Starlight Night Vision
• 640×512 Dual Thermal Cameras, 2×, 8× Optical Zoom
• 20× Hybrid Optical Zoom
• Laser Rangefinder - 1200 m Max Range
• Synchronized Split-screen Zoom
• Intelligent Night Scene Enhancement
• IP44 Rating
• -20°C to 50°C Operating Temperature

Sensors Upgraded Across Multiple Dimensions

Infrared Zoom

Dual Thermal Cameras

Resolution: 640×512

2x Zoom (Equivalent Focal Length: 53 mm)

8x Zoom (Equivalent Focal Length: 196 mm)

See the Big Picture

Night Vision Wide Camera

Starlight Sensor: 2MP

Stronger Low-Light Performance

Pierce Through the Veil

Night Vision Zoom Camera

Starlight Sensor: 4MP

20× Optical Zoom, 128× Max Zoom

Low-Light Details

Precise Distance Data

Laser Rangefinder

Range: 3 m to 1200 m

Accuracy: ± (0.2 m + D×0.15%)

Thermal and Starlight Vision to Elevate Your Operations

See Through the Night

The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.

Infrared Zoom

Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.

Synchronized Split-screen Zoom

H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.

Thermal Features

Color Palettes

Adjust the colors applied to the thermal data based on the mission requirements.

Isotherms

Visualize a specific band of temperatures to highlight your targets.

Temp. Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

Specs

General

Product Name Zenmuse H20N

Dimensions 178x135x161 mm

Weight 878±5 g

Protection Rating IP44

Laser Safety Class 1M (IEC 60825-1:2014)

Supported Aircraft Matrice 300 RTK

Gimbal

Angular Vibration Range ±0.01°

Mount Detachable

Zoom Camera

Sensor 1/1.8" CMOS; Effective Pixels: 4M

Lens Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) ; Aperture: f/1.6-f/11 ; Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)

Focus Mode MF/AF-C/AF-S

Exposure Mode Manual, Auto

Exposure Compensation ±3.0 (1/3 increments)

Metering Mode Spot Metering, Average Metering

AE Lock Supported

Electronic Shutter Speed Photo: 8-1/8000 s ; Video: 1/30-1/8000 s ; Photo/Video (Night Scene): 1/15-1/8000 s

ISO Range Video: 100-102400 ; Photo: 100-102400

Video Resolution 2688x1512@30fps ; 1920×1080@30fps ; 1920×1080@15fps ( Night Scene)

Video Format MP4

Video Caption Supported

Max Image Size 2688×1512

Photo Format JPEG

Wide Camera

Sensor 1/2.7" CMOS; Effective Pixels: 2M

Lens DFOV: 73.6° ; Focal Length: 4.5 mm (equivalent: approximately 29 mm) ; Aperture: f/2.8 ; Focus: 1 m to ∞

Exposure Mode Auto

Exposure Compensation ±3.0 (1/3 increments)

Metering Mode Spot Metering, Average Metering

AE Lock Supported

Electronic Shutter Speed 1-1/8000 s

ISO Range Video: 100-102400 ; Photo: 100-102400

Video Resolution 1920×1080@30fps

Video Format MP4

Video Caption Supported

Max. Image Size 1920×1080

Image Format JPEG

Tele Infrared Thermal Camera

Thermal Imager Uncooled VOx Microbolometer

Lens DFOV: 12.5° ; Focal Length: 44.5 mm (equivalent: approximately 196 mm) ; Aperture: f/1.2 ; Focus: 45 m to ∞

Equivalent Digital Zoom 16x, 32x

Video Resolution 640×512@30fps

Video Format MP4

Image Resolution 640×512

Image Format R-JPEG* (16 bit raw included)

Pixel Pitch 12 μm

Spectral Band 8-14 μm

Sensitivity (NETD) ≤50 mK @ f/1.0

Temperature Measurement Method Spot Meter, Area Measurement

Scene Range -20° C to 150° C (High Gain) ; 0° C to 500° C (Low Gain)

Temperature Alert Supported

FFC Auto/Manual

Palette White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Wide Infrared Thermal Camera

Thermal Imager Uncooled VOx Microbolometer

Lens DFOV: 45.5° ; Focal Length: 12 mm (equivalent: approximately 53 mm) ; Aperture: f/1.0 ; Focus: 5 m to ∞

Equivalent digital zoom rate 4x

Video Resolution 640×512 @ 30 fps

Video Format MP4

Image Resolution 640×512

Image Format R-JPEG (16 bit raw included)

Pixel Pitch 12 μm

Spectral Band 8-14 μm

Sensitivity (NETD) ≤50 mK @ f/1.0

Temperature Measurement Method Spot Meter, Area Measurement

Scene Range -20° to 150° C (High Gain) ; 0° to 500° C (Low Gain)

Temperature Alert Supported

FFC Auto/Manual

Palette White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Range Finder

Wavelength 905 nm

Maximum Power 3.5 mW

Single Pulse Width 6 ns

Measuring Accuracy ± (0.2 m + target distance x 0.15%)

Measuring Range 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)

Storage

Supported microSD Cards Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB

Supported File System exFAT

Environment

Operating Temperature -20° to 50° C (-4 to 122°F)

Storage Temperature -20° to 60° C (-4 to 140°F)
