Freefly RTK GPS Ground Station

Enhance your Alta X or Astro's precision with the Freefly RTK GPS Ground Station. Utilizing Real Time Kinematic (RTK) technology, this state-of-the-art system provides centimeter-level accuracy, perfect for professional surveying, mapping, and other demanding applications. Enjoy exceptional location precision with reliable, high-performance results. Elevate your aerial operations and achieve unparalleled accuracy with this advanced GPS ground station. Don't settle for less—upgrade to the ultimate in precision technology today!
606763.96 Ft
Tax included

493304.04 Ft net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

Freefly RTK GPS Ground Station Module for Enhanced Accuracy

Enhance your ground station setup with the Freefly RTK GPS Ground Station Module, designed to provide Real-Time Kinematic (RTK) technology for precise centimeter-level location accuracy, both horizontally and vertically.

Compatibility

This module is designed for the Alta X with F9P GPS installed and is not compatible with Here2 GPS systems.

RTK Technology Overview

RTK technology leverages a dual-module system to significantly boost positional accuracy:

  • Rover Module: Installed on the aircraft, enabling precise navigation.
  • Ground Station Module: Mounted on a tripod, connected to your ground station computer, sending GPS corrections to the Rover module to enhance accuracy from meters to centimeters in real time.

Applications & Requirements

Based on your setup, here’s what you need:

1. Alta X with F9P GPS for Full RTK Capability:

  • One RTK GPS Ground Station for your ground station computer.
  • A communication radio (e.g., FRX Pro) between the ground station and Alta X.
  • A tripod or stable mount with the included magnetic adapter.

2. Alta X with Here2 GPS for Full RTK Capability:

  • Two RTK GPS Ground Stations (one for the Rover, one for the ground station computer).
  • A communication radio (e.g., FRX Pro).
  • A tripod or stable mount with the included magnetic adapter.

3. Alta X with Here2 GPS for Enhanced GPS Performance:

  • One RTK GPS Ground Station for enhanced Alta X performance.

4. Astro Base Kit for Full RTK Capability:

  • One RTK GPS Ground Station for your ground station computer.
  • A tripod or stable mount with the included magnetic adapter.

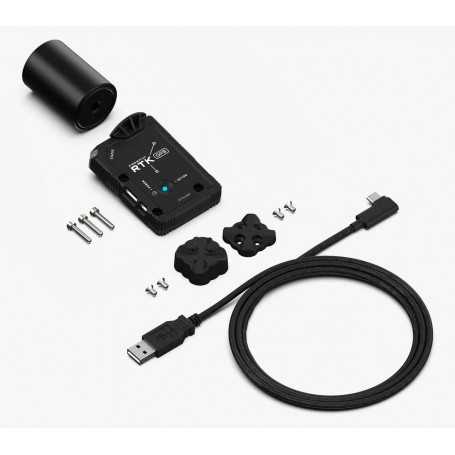

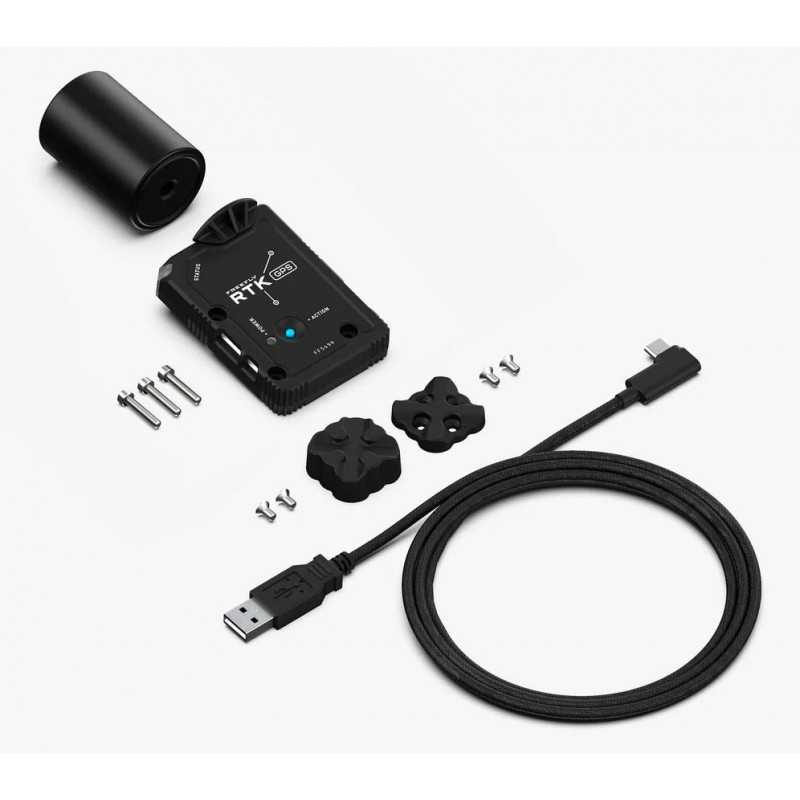

What's Included in the Box

  • Qty 1 - RTK GPS module
  • Qty 1 - Multi-band RTK GPS antenna
  • Qty 1 - Magnetic mounting kit for tripod (¼ 20 interface)
  • Qty 4 - Mounting screws for Magnetic Mounting Kit (M3 x 6 FHCS)
  • Qty 1 - USB cable, Type C right-angle to Type A (3 m / 9.84 ft long)
  • Qty 3 - Mounting Screws for Alta X Rover installation (M3 x 16 SHCS)

Technical Specifications

  • Highest level GPS positional accuracy for Alta X and Astro
  • U-blox ZED-F9P GPS module
  • Multiband L1/L2 receiver
  • Includes IST8310 Magnetometer, BMP388 barometer, safety switch, LED, and RGB LED
  • Designed and Assembled in USA
  • Compatible with AltaSW 1.3+, PX4 1.9+, Astro
  • Not compatible with Alta 8 Pro, Alta 8, or Alta 6

Data sheet
