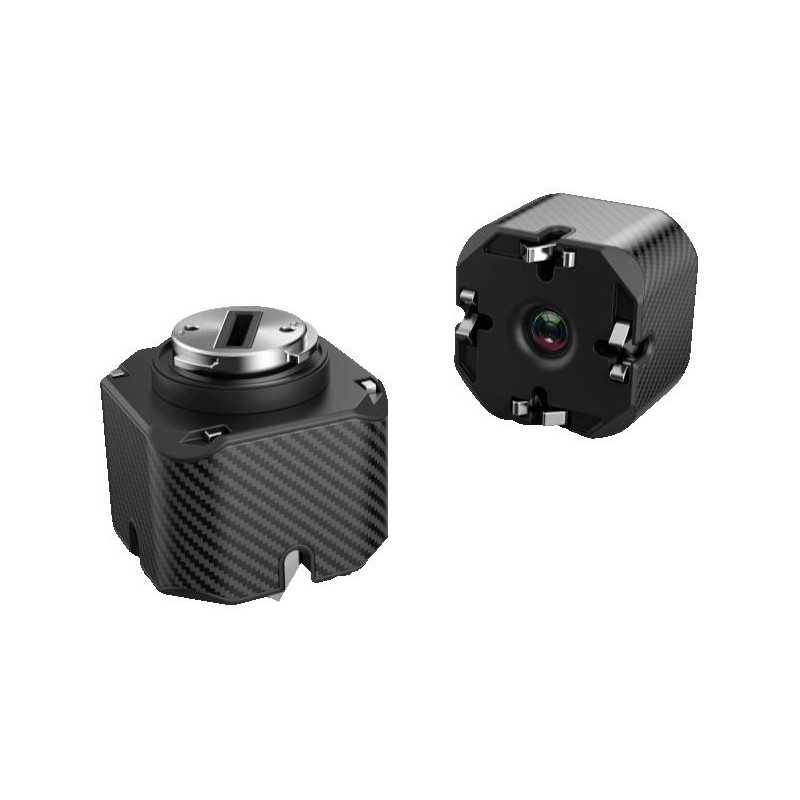

JLIdrone DJI SkyPort PTS4 Drop System

PTS4 multi-stage drop kit is a multi-functional airdrop device developed based on DJI Payload SDK. It has 4 mounting bins, which can carry up to 2.7kg. It can automatically identify the mounting position and display the live status on the DJI Pilot APP. To control single-stage delivery, one-key full-cast, etc is available through DJI Pilot APP. Integrated with 1080P HD FPV camera, real-time image transmission enables accurate delivery.

Four mounting positions, in any order, automatically identify the mounting position, and the Pilot APP can display the mounting status of each position in real time.

Integrated camera

Integrated 1080P high-definition FPV camera, real-time radio transmission facilitates aiming at the target, and achieves accurate delivery.

Drop in any order

Through the DJI Pilot APP control gadget, you can drop in the positions independently, and order is not limited. You can also cast all with one key, which is efficient and fast.

Simple operation

Release manually without powering on.

Application

Fire Fighting - In the early stage of a fire, drones are more flexible than fire trucks and personnel. PTS4 can be used to mount up to 4 fire extinguishing bombs at the same time, and reach the fire point in the shortest time. Through segmented delivery, the fire can be extinguished more accurately and effectively

Emergency rescue - At critical moments, the load weight of the drone is very important. The PTS4 has built in observation camera, and the drone does not need to be equipped with a gimbal camera, which greatly improves the effective load capacity of the drone;

Rescue - Time is life. The M300RTK can quickly carry medicines or lifebuoys to the scene, and the multi-stage throwing function can carry several different materials at a time to reach different remote points;

Specifications

Product Name: PTS4 Drone Visualized Drop Kit

Supported Aircraft: MATRICE 200 SERIES V2 and MATRICE M300RTK

Weight: 135g

Size: 57.4mm*57.4mm*54mm

Maximal Load Capacity with Aircraft: 2.7Kg

Max. release times/Flight: 4

Built-in camera: 1080p/25fps

Payload Interface: DJI SKYPORT V2

Installation mode: Detachable via DJI SKYPORT

Control APP: DJI PILOT
