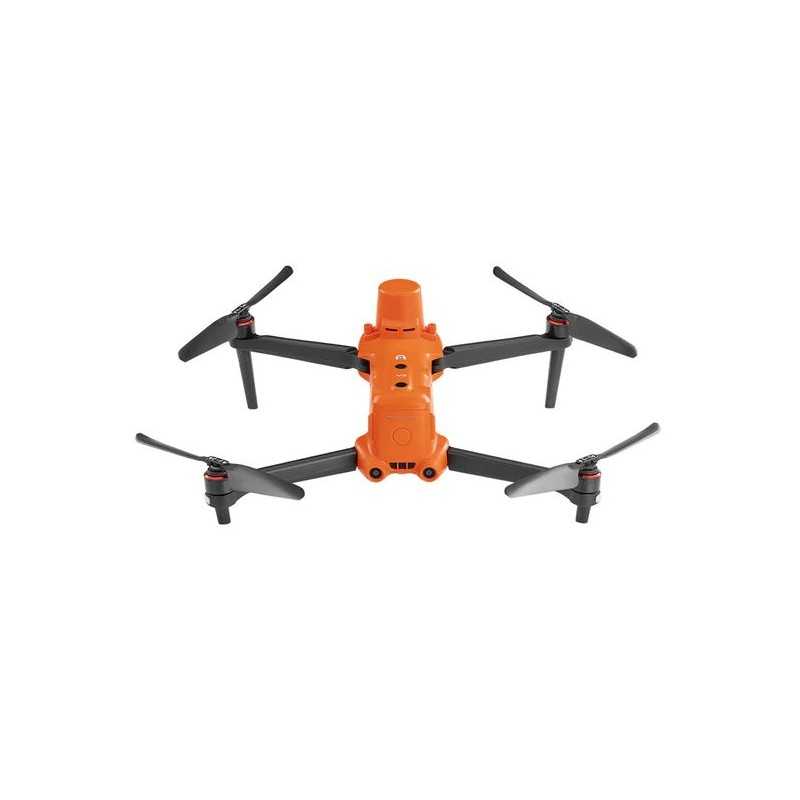

Autel EVO II Dual 640T RTK V3 Drone

• 2023 Newest Version!
• No GCP Required
• Supports all NTRIP-compatible base stations.
• Autel Explorer For Mapping
• Dual Cameras: High-resolution thermal imaging camera & New Sony .8" 50 megapixel RYYB sensor.
• Multiple Color Palettes
• Autel Skylink 2.0 15KM Video Transmission
• Autel Smart Controller V3 7.9''OLED Screen
• Live Deck 2 Stream Anywhere
• 38 Min flight time
• 360° obstacle avoidance
• Portable and Easy to fly

Autel Latest Released EVO II Pro Dual 640T RTK V3 Bundle,integrates an entirely new RTK module for 2023, which provides real-time centimeter-level positioning data in three minutes and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable dataacquisition in complex operation environments.

Autel Explorer for Mapping

Create Rectangular or Polygon Missions   Non stop turning on corners  Supports Double grid mapping for additional angles

Multi-NTRIP Profile Saving：For repeatable data acquisition missions, you can record the drone's previous shooting positions. All the gimbals, camera, and aircraft movements will be replicated, thus producing a full record of the entire mission.

Photo Replication: For repeatable missions, you can record the drone's previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.

Multi-Battery Missions: The Explorer App allows the user to create and save multiple NTRIP profiles for different locations, so they don't have to manually input new a flight plan for every new location.

Dual Cameras:Accurate Temperature Measurement

The EVO II Dual 640T RTK V3 is equipped with a high-resolution thermal imaging camera and an all new Sony .8" 50 megapixel RYYB sensor.

High-Resolution Thermal Imaging Sensor

Equipped with a 640x512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than the competition with the similar resolution and hardware.

Precise Temperature Measurement

The EVO II Dual 640T RTK V3 can accurately detect heat sources within a distance of 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

Zoom in for the Details

16x Zoom in for the Details: EVO II Pro V3 supports 4x lossless zoom and 16 times digital zoom. Obtain clear intel from farther away without suspicion.

Skylink 2.0 Video Transmission

The EVO II PRO V3 is upgraded with Autel's all new skylink 2.0 Video Transmission technology.

15KM HD video Transmission   QHD Critical details with QHD video within 1km

2.4G/5.8G Less signal breakups and enhanced anti-inter-ference capabilities.

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Safe and Sturdy

Deploy Rapidly : The EVO II Pro RTK V3 takes 45 seconds from launch to takeoff without fuss.

27mph Max Wind Resistance, 38 Min Maximum Flight Time

No Forced Updates : EVO II Pro RTK V3 does not need to be on the latest hardware or app version in order to take off.

No Fly Zones: EVO II Pro V3 does not have any no fly zones and will not prevent the pilot from taking off.(Please fly safely and consult your local laws and regulations.)

Autel Smart Controller V3

7.9-inch ,2000nit high brightness srceen is clearly visible even under direct sunlight. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

Broadcast with Live Deck 2

EVO II Pro RTK V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

- EVO II Dual 640T RTK V3 Bundle -

Aircraft *1( (Battery, propeller, gimbal cover, 32G SD card included)

Remote Controller*1

Spare Propellers*2 pair

Spare Battery*2

Battery Charger+Power Cable*1

Car Charger*1

Multi-Charger*1

RC Charger *1

RC Charging Cable*1

Spare Control Stick (pair)*1

RC Protective Case*1

RC Lanyard*1

Extended Port Cover*1

Protector Case*1

Quick Guide

Autel EVO 2 Dual 640T RTK V3 Specs

Aircraft

Weight (With propellers, battery and RTK module) 1250g±0.5g（EVO II Dual 640T RTK V3）

Max Takeoff Weight 4.41 lbs+ (1999 g)

Size(L*W*H) Folded: 230*130*143mm; 9.1*5.1*5.6 inches, Unfolded: 457*558*143mm; 18*22*5.6 inches

Wheelbase 397 mm

Maximum Service Ceiling Altitude 7000 m

Max ascent speed 8 m/s (Ludicrous)

Max descent speed 4 m/s (Ludicrous)

Max horizontal flight speed 20m/s (Ludicrous)

Max flight distance (no wind) 21 km

Max angular velocity 120°/s

Max tilt angle 33° (Ludicrous)

Max flight time 36 min

Max hovering time (no wind) 32 min

Operating temperature range 14°F to 104°F (-10℃ ~ 40℃)

Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)

Operating frequency 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz

Transmission power(E.I.R.P) 900M FCC/ ISED：≤31dBm, 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm, 5.8G FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm

Hovering accuracy When RTK is enabled and working normally: Vertical: ±0.1 m; Horizontal: ±0.1 m Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GNSS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GNSS works normally)

Image position compensation The position of the camera center relative to the phase center of the airborne A-RTK antenna, under the body axis system: (-2.63, 0.31, 83.5) mm, and the photo EXIF coordinates have been compensated. The positive XYZ axis of the body axis system points to the front, right, and bottom of the aircraft respectively.

Internal storage 8GB

SD storage max. support 256GB (UHS-3 or Class 10)

GNSS

Single frequency high sensitivity GNSS GPS+BeiDou+Galileo（Asia）GPS+GLONASS+Galileo（Other areas）

Multi-frequency multi-system high-precision RTK GNSS Frequency points used：GPS：L1/L2；GLONASS：L1/L2；BeiDou：B1/B2；Galileo：E1/E5, First positioning time:<50 s ; Positioning accuracy: vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS) 1 ppm means that the error increases by 1 mm for every 1 km the aircraft moves

Gimbal

Gimbal 3-axis stabilization

Mechanical range Tilt: -135° to +45°; Pan: -100° to +100°

Controllable rotation range Tilt: -90° to +30°; Pan: -90° to +90°

Max control speed (Tilt) 300°/s

Angular Vibration Range ±0.005°

Remote controller and image transmission

Operating frequency 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz

Transmission power(E.I.R.P) FCC：≤33dBm, CE：≤[email protected]，≤[email protected], SRRC：≤[email protected]，≤[email protected]/5.7G

Max Transmission Distance (unobstructed, free of interference) FCC：9.3 miles (15 km), CE：5 miles (8km)

Display screen 2048x1536 60fps

Battery 5800mAh

Operating time ~3 hours (Max. Brightness), ~4.5 hours (50% Brightness)

Charging time 120 minutes

Internal Storage ROM 128GB

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5-18 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measurement range: 0.5-16 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Upward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: Horizontal: 65°, Vertical: 50°

Downward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) ; Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) ; Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

EVO II Dual 640T RTK thermal camera

Sensor Uncooled VOx Microbolometer

Lens FOV H33°V26°, Focal length 13mm

Zoom 1-16x

Pixel size 12μm

Wavelength range 8 - 14μm

Temperature range High gain mode: -20° to +150°, Low gain mode: 0° to +550°

Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃

Accurate temperature

measurement distance 2-20 meters

Video resolution 640x512@25fps

Video format MOV / MP4 (Support H.264/H.265)

Camera resolution Infrared mode: 640*512, Picture-in-picture mode: 1920*1080, 1280*720

Photo mode Single shot, Burst shooting: 3/5 frames, 3 is the default, Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format JPG (with irg file)

EVO II Dual 640T RTK V3 visual camera

Sensor 1/1.28"(0.8") CMOS; 50M effective pixels

Lens FOV: 85°, 35 mm format equivalent focal length: 23 mm, Aperture: f/1.9, Focus range: 0.5 m to infinity (with auto focus)

ISO range Video: 100-64000, Photo: 100-6400

Shutter speed Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates

Zoom 1-16x (up to 4x lossless zoom)

Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size 8192*6144（4:3）4096*3072（4:3）3840x2160（16:9）

Image Format JPG (default) / DNG / JPG+DNG

Video format MOV / MP4

Video resolution 3840x2160P60/P50/P48/P30/P25/P24, 2720x1528P60/P50/P48/P30/P25/P24, 1920x1080P60/P50/P48/P30/P25/P24

Max bitrate 80Mbps

Supported file system FAT32/exFAT

Battery

Capacity 7100 mAh

Voltage 11.55 V

Battery type LiPo 3S

Energy 82 Wh

Weight 365 g

Charging temperature range 5℃ to 45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22-28℃

Max charging power 93W

Charging time 90 minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2±0.1V

Rated power 66W

Multi-Charger

Voltage 13.2 V

Charging temperature range 5℃ to 45℃
