DJI RoboMaster S1 Educational Expansion Set Core

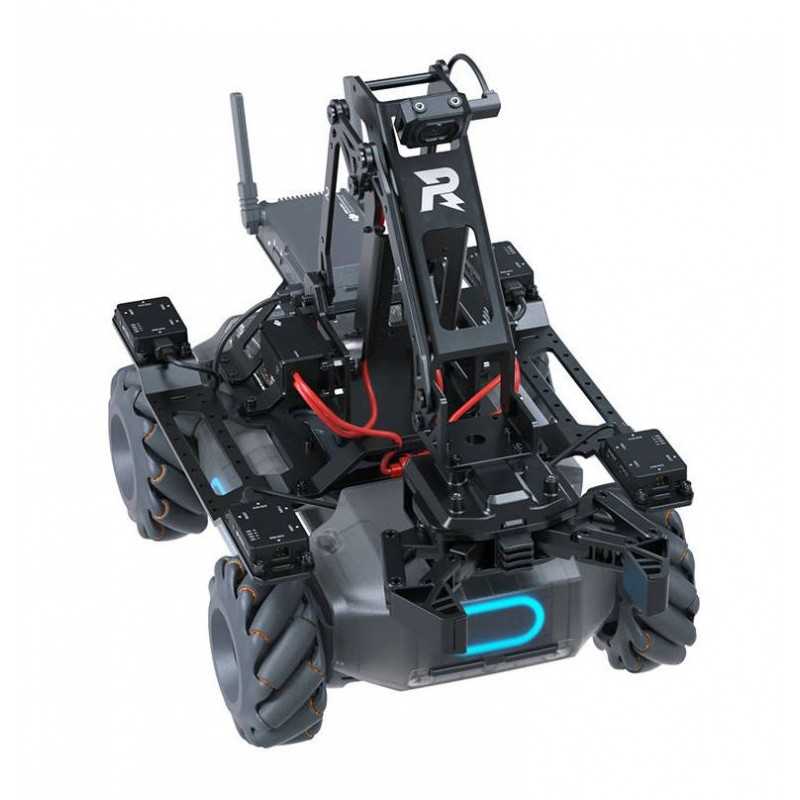

DJI RoboMaster EP Core: AI and programming educational robot

After the revolutionary RoboMaster S1, the RoboMaster EP Core educational robot takes learning to the next level. Any school can benefit from programming and artificial intelligence with this educational robot. DJI's Software Development Kit (SDK), expandable software and hardware, a unique curriculum, and the all-new RoboMaster Youth contest are all included. The RoboMaster EP is an unparalleled educational robot for children and teachers. This powerful educational robot is an all-in-one solution for all STEAM schools, allowing students of all ages and levels to participate in AI and programming projects.

• Unparalleled teaching tools: Official SDK, powerful features and compatibility capabilities, high performance mechanical accessories
• Educational Resources: Project-based courses, layered teaching model, comprehensive educational guidance materials
• Competition: RoboMaster Youth Tournament, multi-round competition system, partnerships with prestigious schools and educational institutions

Components of the DJI RoboMaster EP Core

Gripper: The gripper turns the RoboMaster EP into a powerful, multi-functional frame. Convenient structural design and adjustable gripping force allow it to firmly and reliably grasp and move objects of various shapes, weights and sizes.

Robotic Arm: The EP's robotic arm is incredibly durable, yet compact and flexible. It supports precise FPV control, allowing students to perform tasks even when target objects are out of sight.

High-performance servo: As the propulsion driver for the RoboMaster EP, the servo supports custom control capabilities through the EP's main control board. It ensures minimal gear backlash, high control accuracy and high torque output. It can also power the robotic arm and support DC gear motor mode, allowing students to build lifting structures using their physics knowledge.

Sensor Adaptor and Power Connector Module: each sensor adaptor has two sensor ports and provides a power supply. A power connector module allows for the connection and powering of third-party hardware, providing multiple ports to connect hardware and create custom programs and applications.

Infrared distance sensor: With a measurement range of 0.1 to 10 meters, the infrared distance sensor accurately measures with a 5% margin of error. The addition of programmable modules in Scratch also provides reliable distance measurement information. This allows the PE to detect its environment and avoid obstacles, which helps students better understand the advanced principles of autonomous driving.

DJI RoboMaster EP Core: features

DJI Open SDK: Endless programming possibilities are unlocked when you use SDKs (software development kits). The Open DJI SDK is available on the RoboMaster EP and supports over 50 programmable sensor ports. This allows students to use streaming data from sensor modules, video and audio to program AI applications and discover real AI technology.

Streaming video and audio data: streaming HD video and audio data and stabilized images provide greater recognition accuracy. Deep learning projects and features such as data analysis, pattern learning, scene recognition and personalization can be achieved with a third-party platform.

Attitude data: flexibility code for attitude data collected from chassis and gimbal gyroscopes.

Swarm: connect multiple EPs to a computer to perform swarm movements through multi-machine communication.

ToF distance measurement information: distance measurement information provided by the infrared distance sensor enables intelligent obstacle avoidance and accurate multi-machine communication for autonomous driving.

DJI RoboMaster EP Core capabilities and compatibility

Increased expandability: a customizable expansion platform allows students to build and expand the RoboMaster EP Core as they wish. The EP is also compatible with building blocks, providing even more opportunities for learning and fun.

Compatible third-party hardware: the RoboMaster EP supports open-source third-party hardware such as Micro:bit, Arduino and Raspberry Pi. These components can be connected and powered via serial ports on the main chassis controller. The PE can also perform model learning and scene recognition via AI platforms such as NVIDIA Jetson Nano and DJI's official SDK, allowing students to better understand the principles of how AI works.

Compatible with third-party sensors: the RoboMaster EP is equipped with four sensor adapters, making it easy to connect and power third-party sensors that measure inputs such as temperature, pressure, distance and more. Sensory data can even be used in Scratch, opening up endless programming possibilities.

Multi-machine communication: Python programming allows multiple units of the RoboMaster EP to communicate and interact with each other in real time.

New Scratch programming blocks: New Scratch programming blocks have been added to the Lab section of the RoboMaster application. They have been designed to help users obtain and use sensory data. With these blocks, users can quickly access and control the sensor adapter, robotic arm, gripper, infrared launcher, infrared depth sensor and open source third-party hardware.

Support for multiple platforms and two programming languages: the RoboMaster app is compatible with the RoboMaster EP and multiple operating systems, including iOS, Android, Windows, and Mac, making it the perfect tool for a wide range of teaching scenarios. The EP supports two programming languages, Scratch 3.0 and Python 3.6, allowing beginners and experts alike to have fun with programming.

Included

Front armor x1

Mecanum wheel mounting plate x1

Mecanum wheel damping ring x4

Mecanum wheel rollers x48

Grease x1

Motion controller x1

Bottle of gel balls x1

Screwdriver holder x1

M3508l brushless motor and ESC x4

Motor mounting plate x4

Bolt container x1

Protective goggles x1

X-shaped front shaft guard x1

Cable holder x1

Charger x1

Smart battery pack x1

AC power cable x1

Inner hub with left thread × 2

Outer hub with left thread × 2

Inner hub with right thread × 2

External hub with right-hand thread × 2

Damping ring holder ×4

Chassis cab cover x1

Masking tape x1

Vision Marker x7

Chassis cover x1

Undercarriage center frame x1

Intelligent Controller x1

Front axle cover x1

Front axle module base x1

Gimbal x1

Camera x1

Blaster x1

Gel ball container x1

Speaker x1

Impact detector x4

Camera cable x1

Data cable 35 cm x1

Data cable 23 cm x2

Data cable 12 cm x4

Rear armor x1

Left armor x1

Right armor x1

Specs

Infrared Distance Sensor

Detection Range 0.1-10 m

FOV 20°

Accuracy 5%

Robotic Arm

Movement Range Horizontal: 22 cm, Vertical: 15 cm

Number of Axes 2

Gripper

Range Approx. 10 cm

Servo

Weight Approx. 70 g

Body Dimensions 44.2×22.6×28.6 mm

Transmission Ratio 512:1

Operation Modes Angle mode, Speed mode

Sensor Adaptor

Port Type IO, AD

Number of Ports 2

Power Connector Module

Communication Port CAN bus

Output USB Type-A power port: 5V 2A, Power port with pin header: 5V 4ATX30 power port: 12V 5A

Input TX30 power port: 12 V

Camera

FOV 120°

Max Still Photo Resolution 2560×1440

Max Video Resolution FHD: 1080/30fps, HD: 720/30fps

Max Video Bitrate 16 Mbps

Photo Format JPEG

Video Format MP4

Sensor CMOS 1/4″; Effective pixels: 5 MP

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Hit Detector

Detection Requirements For the Hit Detector to be activated, the following conditions must be met: Gel bead diameter ≥ 6mm, launching speed ≥20m/s, and the angle between the hit direction and hit detector plane is no less than 45°.

Maximum Detection Frequency 15 Hz

EP Core

Weight Approx. 3.3 kg

Dimensions 320×240×270 mm (length × width × height)

Chassis Speed Range 0-3.5 m/s (forward), 0-2.5 m/s (backward), 0-2.8 m/s (sideways)

Max Chassis Rotational Speed 600°/s

M3508I Brushless Motor

Max Rotational Speed 1000 rpm

Max Torque 0.25N·m

Max Output Power 19 W

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Driver FOC

Control Method Closed-loop speed control

Protection Overvoltage protection, Overtemperature protection, Soft-start, Short-circuit protection, Chip and sensor anomaly detection

Intelligent Controller

Latency Connection via Wi-Fi: 80-100ms, Connection via Router: 100-120ms, (unobstructed, free of interference)

Live View Quality 720p/30fps

Max Live View Bitrate 6 Mbps

Operating Frequency 2.4 GHz, 5.1 GHz, 5.8 GHz

Operating Mode Connection via Wi-Fi, Connection via Router

Max Transmission Distance Connection via Wi-Fi: FCC, 2.4 GHz 140 m, 5.8 GHz 90 m, CE, 2.4 GHz 130 m, 5.8 GHz 70 m, SRRC, 2.4 GHz 130 m, 5.8 GHz 90 m, MIC, 2.4 GHz 130 m ; Connection via Router: FCC, 2.4 GHz 190 m, 5.8 GHz 300 m, CE, 2.4 GHz 180 m, 5.8 GHz 70 m, SRRC, 2.4 GHz 180 m, 5.8 GHz 300 m, MIC, 2.4 GHz 180 m

Transmission Power (EIRP) 2.400-2.4835 GHz FCC: ≤30 dBm, SRRC: ≤20 dBm, MIC: ≤20 dBm ; 5.170-5.25 GHz FCC: ≤30 dBm, SRRC: ≤23 dBm, MIC: ≤23 dBm ; 5.725-5.850 GHz FCC: ≤30dBm, SRRC: ≤30dBm

Transmission Standard IEEE802.11a/b/g/n

Intelligent Battery

Capacity 2400 mAh

Nominal Charging Voltage  10.8 V

Maximum Charging Voltage 12.6 V

Battery Type LiPo 3S

Energy 25.92 Wh

Weight 169 g

Operating Temperature Range -10 to 40 °C (14 to 104 °F)

Charging Temperature Range 5 to 40 °C (41 to 104 °F)

Maximum Charging Power 29 W

Battery Life in Use 35 minutes (measured at a constant speed of 2 m/s on a flat surface)

Battery Life on Standby Approx. 100 minutes

Charger

Input 100-240 V, 50-60Hz, 1A

Output Port: 12.6 V=0.8A or 12.6 V=2.2A

Voltage 12.6 V

Rated Voltage 28 W

App

App RoboMaster

iOS iOS 10.0.2 or later

Android Android 5.0 or later

Router

Recommended Routers TP-Link TL-WDR8600; TP-Link TL-WDR5640 (China), TP-Link Archer C7; NETGEAR X6S (International)

Recommended outdoor power supply solution for routers Laptop Power Bank (match the input power of the router)

microSD card

Supported SD Cards Supports microSD cards with a capacity up to 64GB
