DJI Wingsland Z15 Spotlight Gimbal

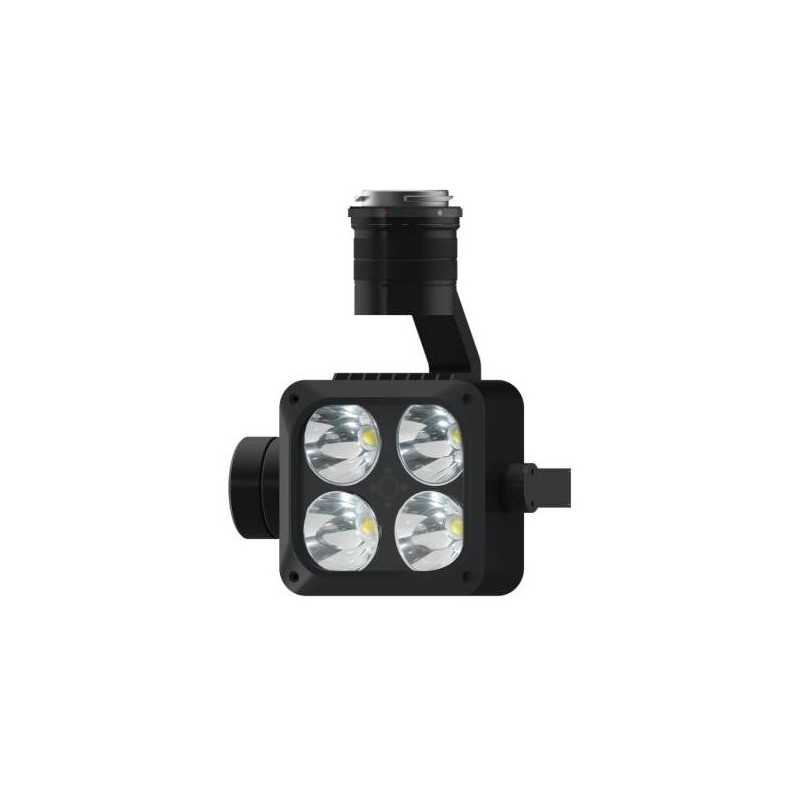

DJI Wingsland Z15 High-Intensity 3-Axis Spotlight Gimbal

The DJI Wingsland Z15 High-Intensity 3-Axis Spotlight Gimbal is an advanced lighting solution designed to enhance visibility in low-light conditions. This high-power spotlight is equipped with a DJI SkyPort, offering seamless integration with DJI Matrice 200 Series V1 and V2 drones. Perfect for firefighting, emergency response, law enforcement, and various other applications, the Wingsland Z15 ensures that your operations remain illuminated when it matters most.

Key Features

• Modes: Easily switch between Always On, Flashing, and SOS modes to suit different operational needs.
• Air Cooling System: The built-in cooling system efficiently dissipates heat, preventing the spotlight from overheating during extended use.
• Intelligent Protection: Automatic adjustments protect the device when internal temperatures exceed 90℃.
• Supports Dual Downward Gimbals: Compatible with DJI Zenmuse payloads for enhanced operational lighting on drones with dual-downward gimbals.

Applications

Public Safety

The Wingsland Z15 provides essential illumination for public safety missions, offering aerial visibility across large areas in low-light conditions.

• Firefighting: Illuminate escape routes to guide the public to safety after fires or natural disasters.
• Emergency Response/Search and Rescue: Enhance visibility to locate missing persons in hard-to-reach areas.
• Law Enforcement: Serve as a versatile light source for crowd management, forensic investigations, and routine patrols.

Infrastructure/Facility Repair and Maintenance

In the event of power outages or structural collapses at night, the Wingsland Z15 provides aerial lighting, enabling efficient and timely emergency repairs, ensuring safety and reducing costs.

Specifications

General Specifications

• Product Name: WINGSLAND Z15 Gimbal Spotlight
• Port Type: DJI SkyPort
• Dimensions: 100 x 110 x 150 mm
• Weight: 500 g
• Rated Power: 48 W

LED Light Beads

• Voltage: 6 V
• Power: 40 W
• Luminous Flux: 10200 lm
• FOV: 15°
• Operating Range: 150 m
• Area Coverage: 1863 m² @ 120 m; 323 m² @ 50 m
• Illuminance: 4 lux @120m; 11 lux @ 60 m; 47 lux @ 30 m

Gimbal

• Angular Vibration Range: ±0.02°
• Mount: Detachable
• Controllable Range: Pitch: -90° to +90°, Yaw: ±170°
• Max Control Speed: Pitch: 60°/s, Yaw: 60°/s

Temperature Parameters

• Operating Temperature: -10 ℃ to 50 ℃
• Storage Temperature: -20 ℃ to 60 ℃

Compatible Products

The Wingsland Z15 is designed for use with the DJI Matrice 200 Series and Matrice 200 Series V2 drones, making it a versatile addition to your aerial toolkit.
