CZI Public Safety Basic Set T1 V2 (1*MP130 V2, 1*GL60 PLUS, 1*TH4 V2, 1*FL48-M300)

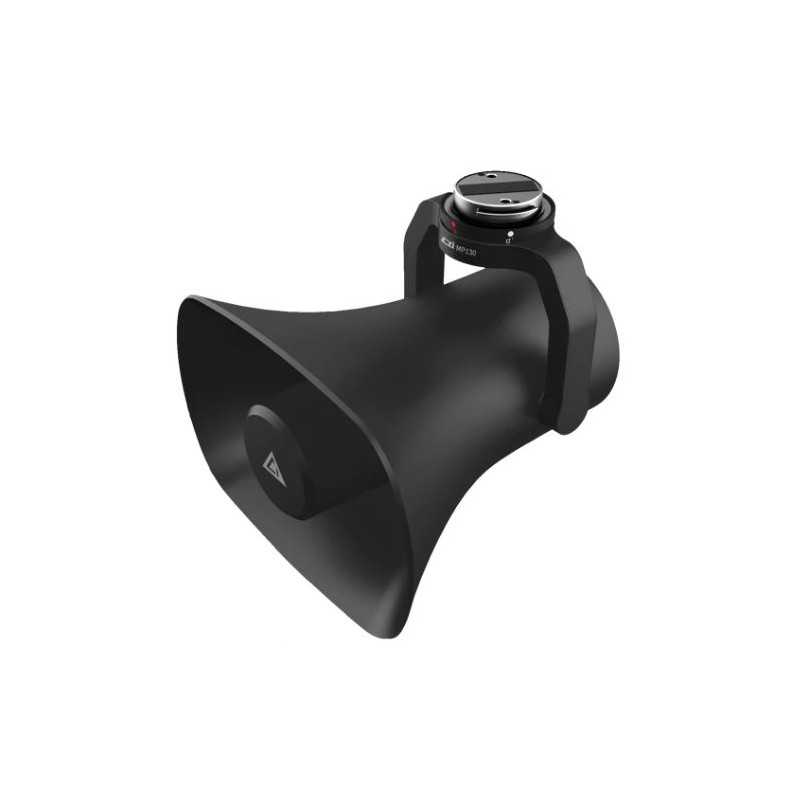

MP130 V2

The MP130 V2 is a Long Range Acoustic Device (LRAD) for UAVs, with ultrahigh sound pressure to clearly transmit voice to distant locations, with an effective range of up to 500 meters. With the second generation of digital voice broadcasting system, it combines DJI UAV and LTE dual link to ensure voice broadcasting anytime and anywhere. Through the LTE link, the command center can live broadcast and dispatch remotely regardless of the distance. Standard handheld microphone, effectively prevent whistling and reduce environmental noise interference, shouting voice more clearly, and with a color screen, visual switch audio files, more intuitive operation. Optimized into to voice / text library, can quickly broadcast the content, and support upload of mobile phone audio files, firmware remote upgrade. The MP130 V2 has strong sound penetration, small size, light weight, low power consumption and excellent magnetic shielding performance, developed for UAV industry applications. With DJI SkyPort V2.0 interface, it is seamlessly compatible with DJI Matrix M200 V2/M300 series flight platforms.

Dual-link & Handheld Microphone

• PSDK & LTE (LTE only for China domestic market)
• Dual link guaranteed communication
• Standard handheld microphone
• Color screen for visual operation

Live broadcasting & various modes

• Handheld microphone for live broadcasting
• TTS, voice upload
• Upload and playback audio files
• Call to CZI voice library/text library

Powerful volume

• Up to 130dB of volume
• 500m ultra-loud sound
• Unrestricted distance via LTE link

Synchronous pitching & precise broadcasting

• Instantly available via DJI
• Automatic synchronous pitching
• Follow the gimbal camera to optimum broadcast results

Specs

Power consumption: 35 W

Operating temperature: -10° bis +40°

Acoustic Transmission range: 500 m (effektiv), 1000 m (maximal)

Supported audio file format: MP3/WMA/WAC/AAC/OGG/FLAC

Weight: 550 g

Tilting angle: 0 - 90°

Dimensions: 140 x 140 x 125 (in mm, L x B x H)

GL60 PLUS

The gl60 plus cloud table lamp adopts four groups of optical imaging components, each group is composed of four lenses, emits a sharp light column with an angle of only 15 degrees, has the same color, uniform brightness, and stably outputs the best illuminance of 24lux, with an effective irradiation distance of 150m and an effective lighting area of 1225 square meters, which improves the aerial irradiation effect of UAV at night to a new height. The overall design is ultra lightweight, weighs only 750g, and the rated power is up to 120W. Through the djiskyportv2.0 interface, it is compatible with Dajiang Jingwei m200v2, m300rtk and other series of UAVs, which can meet the requirements of night patrol, warning drive, azimuth indication, power line patrol, search and rescue and other night operations.

LED linear dimming

High power LED light source, Maximum power 120W, 100 meters of ground illumination 24lux, Linear shading, The license plate was not exposed.

Non reflective bowl design

No secondary light spot, Reduce the loss of effective brightness, With strong light explosion and flash mode, It can silently drive away and indicate the direction.

Imaging optical technology

Imaging optics, 4 sets of optical lens sets, 1 set of 4 lenses, 15 degree luminous angle.

Ultra lightweight design

Fully sealed fuselage, IP55 waterproof and dustproof, New die casting heat dissipation process, 0.7 kg ultra light weight, Flexible use and longer endurance.

The GL60 Plus Cradle Projector fits on the :

• M300RTK
• M200V2

TH4 V2

TH4 Throwing hook, 310g dead weight, 40kg payload, can complete four missions in a single flight. DJI SkyPortV2.0 interface can be directly mounted on DJI M210V2 and M300RTK UAV for use in emergency rescue, material delivery and other work.

Specifications

Model: TH4 V2

Dimensions:

Maximum height: 97mm

（Included Cover）

Maximum diameter: 78mm

Weight: 310g±5g

Function

1. It can mount 4 projectiles at the same time and make them in turn

2. Digital picture tube can display the loading position

3. The maximum load is 20KG, and the maximum load of single throw hook is 10KG (the actual load is subject to the UAV load).

4. Fast disassembly and installation can be realized

Working temperature: -20—40 ℃

Port Type: DJI SKYPORT V2.0

Control mode: DJI PSDK

Controllable distance: DJI PSDK control mode is consistent with DJI PSDK link

FL48-M300

Red and Blue Flashing Light

The FL48 red and blue flashing light showing the drones as the recognition of police s. The FL48 can be used as a deterrent in law enforcement operations and as an identity marker for emergency response teams, enabling efficient rescue operations. It comes up with both blue or both red flashing options.

Clearly marked

Flashing frequency of 16 flashes per second. Red and blue lights are still clearly distinguishable under the sunny skies.

Easy control

New flashing light control box. Based on DJI OSDK development. Synchronized UAV data link. Safer and more convenient control.

Easy to operate

Controlled by CZZN software. Retains hover window function. Available in the DJI Pilot interface Simultaneous control of the drone and FL48.

Flexible power supply

Compatible with DJI M300 RTK drone. Use the drone body's OSDK port Power supply and communication control. Streamlined and flexible power supply.

Adapted models

Matrice 300 RTK

Parameter information

Model FL48

Electrical Interface M300 RTK OSDK

Angle of light output 60°

Flashing frequency 16 times/second

Weight 145 ±5g

Dimensions 145*38.5*21mm

Rated Power 30W

Operating temperature -20°C~+50°C
