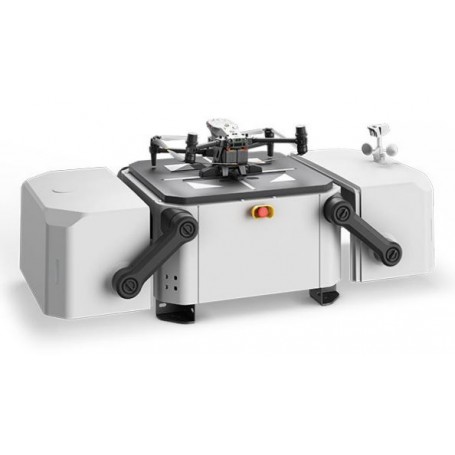

DJI Dock: Advanced Drone Docking Station for Continuous Operations

The DJI Dock is a robust and reliable docking station built for continuous operation, capable of working 24/7 in various weather conditions, whether it's day or night, rain or shine.

Designed to house the Matrice 30 drone, the DJI Dock allows for seamless landings, recharges, takeoffs, and mission executions, all programmed through the powerful DJI FlightHub 2 platform.

Key Features:

• Integrated and Easy to Deploy: Simplified setup with minimal footprint.
• Work Smarter With Automation: Automate complex tasks to increase efficiency.
• Cloud Management at Your Fingertips: Manage operations and data seamlessly from the cloud.
• 7 km Operation Radius: Extensive range for broad mission capabilities.
• Fast Charge for Minimal Downtime: Quick recharge times to keep missions on schedule.
• Operating Temperature Range: -35℃ to 50℃ for extreme weather resilience.
• Support for Private Deployment: Secure and customizable deployment options.
• Open Edge Computing: Enhance functionality with edge computing capability.

Comprehensive Cloud Control:

With FlightHub 2, unlock the full potential of your DJI Dock from the cloud. Easily schedule missions, craft flight routes, and manage the data collected by your drones.

Real-time Awareness

Stream live, high-definition video to monitor your DJI Dock and drones at any time.

Mission Planning and Management

Plan and manage complex flight routes, edit missions, and track flight progress remotely.

Media Management and Storage

Review and store geo-tagged media, such as photos and videos, automatically uploaded for later use.

One-Stop Operation and Maintenance

Remotely monitor the health and status of your DJI Docks and drones through comprehensive cloud-based tools.

Fast Charging, Rapid Deployment:

Thanks to TEC air conditioning, the DJI Dock facilitates fast charging from 10% to 90% in just 25 minutes, ensuring quick turnaround times.

Built to Endure:

Engineered to withstand harsh environments, the DJI Dock is equipped with:

• IP55 Ingress Protection for dust and water resistance.
• 40kA Surge Protection for electrical stability.
• 5 Hours Backup Battery for uninterrupted operation.
• Active Temperature Control for safety and efficiency.
• 6 Months Maintenance Interval for reduced downtime.

Matrice 30 Series Dock Version:

The M30 Series Dock Version offers flagship-level performance with strong wind resistance and comprehensive sensor integration for detailed aerial data collection.

Simple and Efficient Setup

Each dock weighs under 105 kg and occupies less than one square meter. Installation is straightforward, requiring only ground fixation, power, internet access, and configuration via the DJI RC Plus remote controller.

Integrated Design Features

• Wide-angle Security Camera
• Integrated Weather Station
• Internal Omni-directional Antenna
• RTK Module
• Edge Computing Expansion Slot

Modular Maintenance

The modular design simplifies maintenance, ensuring smooth and efficient operations.

Specifications:

General Specifications

• Product Name: DJI Dock
• Total Weight: 105 kg (excluding aircraft)
• Dimensions: Dock Cover Opened: 1675×885×735 mm; Dock Cover Closed: 800×885×1065 mm
• Input Voltage: 100-240 VAC, 50/60 Hz
• Max Input Power: 1,500 W
• Operating Temperature: -35 to 50° C
• Ingress Protection Rating: IP55
• Max Landing Wind Speed: 12 m/s
• Max Operating Altitude: 4,000 m
• Max Operating Radius: 7,000 m

Charging Performance

• Output Voltage: 18 to 26.1 V
• Charging Time: 25 minutes from 10% to 90% at 25°C

Video Transmission

• System: O3 Enterprise
• Frequency: 2.4000-2.4835 GHz and 5.725-5.850 GHz
• Antennas: 4 antennas, 2T4R

Air Conditioning System

• Operating Voltage: 48 VDC
• Type: TEC Air Conditioning

Network and Sensor Support

• Ethernet Access: 10/100/1000 Mbps
• Sensors: Wind Speed, Rainfall, Ambient Temperature, Water Immersion, In-cabin Temperature and Humidity, Vibration

Security and Expansion

• Integrated Security Camera: 1920×1080 resolution, 180° FOV
• Lightning Protection: 40 kA for AC Power Port
• Expansion Capability: Open Protocol for DJI Cloud API and Edge Computing
