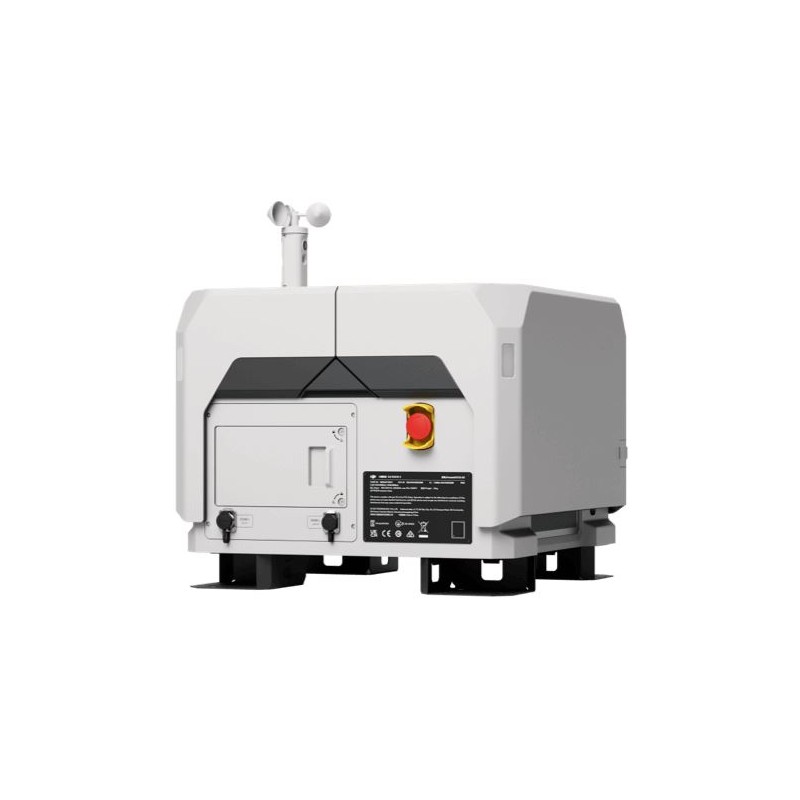

DJI Dock 2 Combo with Matrice 3D SP 2yr

The DJI Dock 2, though smaller in size, excels in deploying Matrice 3D or 3TD drones effortlessly while ensuring top-notch security. It features a lightweight design coupled with advanced operational capabilities, complemented by cloud-based intelligent functions that optimize automatic operations for superior efficiency and quality.

Notable Features:

Compact and Lightweight: DJI Dock 2 is remarkably smaller and lighter than its predecessor, facilitating easy deployment and reducing installation expenses significantly.

Enhanced Site Evaluation: Equipped with vision sensors, the aircraft swiftly assesses its surroundings, drastically cutting down the time required for site selection.

Robust Construction: With an IP55 dust and waterproof rating, DJI Dock 2 maintains steady operation even in challenging environmental conditions.

Integrated Environmental Monitoring: Multiple sensors provide real-time weather data, enhancing operational safety by minimizing flight risks.

Landing Stability: Utilizing advanced image recognition technology, the aircraft achieves precise landings with utmost stability.

Backup Battery: In case of unexpected power outages, DJI Dock 2 boasts a built-in backup battery that ensures over five hours of independent operation.

Extended Maintenance Intervals: Thanks to its high reliability and protection levels, DJI Dock 2 requires maintenance only once every six months, effectively reducing maintenance costs.

Abnormal Condition Notifications: Operators receive immediate email alerts in case of task failures or emergencies, enabling prompt troubleshooting.

High-Performance Aircraft Models: The Matrice 3D/3TD drones meet stringent operational requirements, ensuring superior performance in various scenarios.

Comprehensive Performance: Dual RTK antennas facilitate quick takeoff, while rapid charging enables efficient consecutive operations.

Dual-Camera Monitoring: Real-time monitoring within and outside the dock enhances situational awareness for operators.

Cloud Mapping and Flight Route Editing: Utilizing high-precision 3D models, operators can plan flight routes accurately and efficiently.

AI Spot-Check: Automatically adjusts camera angles to ensure precise capture across multiple flights.

FlyTo Tasks: High-precision 3D models enable automatic planning of optimal flight routes, enhancing operational efficiency.

Live Flight Controls: Operators can remotely control flight and gimbal angles via DJI FlightHub 2 or third-party platforms, even in remote regions.

Obstacle Bypass: Advanced obstacle sensing and bypass functions enhance the success rate of flight tasks, ensuring smooth operation in challenging environments.

In the box

• Dock Body (incl. Earth Wire)
• Wind Speed Gauge Module
• Expansion Bolt
• Ethernet Cable Connector
• Power Cable Connector
• Wire Ferrule
• Screws and Tools
• Manuals
• Matrice 3D SP
• DJI Care 2yr

Specifications:

Dock - General

Product Name: DJI Dock 2

Total Weight: 34 kg (without aircraft)

Dimensions:

Dock Cover Opened: 1228×583×412 mm (L×W×H)

Dock Cover Closed: 570×583×465 mm (L×W×H)

Input Voltage: 100-240 V (AC), 50/60 Hz

Input Power: Max 1000 W

Operating Temperature: -25° to 45° C (-13° to 113° F)

Ingress Protection Rating: IP55

Number of Drones Accommodated: 1

Max Allowable Landing Wind Speed: 8 m/s

Max Operating Altitude: 4000 m

Receiving Frequency of RTK Base Station: Simultaneously receive GPS, BeiDou2, BeiDou3, GLONASS, Galileo

Positioning Accuracy of RTK Base Station: Horizontal: 1 cm + 1 ppm (RMS), Vertical: 2 cm + 1 ppm (RMS)

Dock - Charging Performance

Output Voltage: 28 V DC

Charging Time: 32 minutes

Dock - Video Transmission

Video Transmission System: O3 Enterprise

Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz

Antenna: Built-in 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) ; 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC)

Dock - Air Conditioning System

Operating Voltage: 28 V DC

Air Conditioning Type: TEC Air Conditioning

Dock - Backup Battery

Battery Capacity: 12 Ah

Output Voltage: 12 V

Battery Type: Lead-acid battery

Battery Life: > 5 hours

Dock - Network Access

Ethernet Access: 10/100/1000Mbps adaptive Ethernet port

Dock - Sensor

Wind Speed Sensor: Supported

Rainfall Sensor: Supported

Ambient Temperature Sensor: Supported

Water Immersion Sensor: Supported

In-Cabin Temperature Sensor: Supported

In-Cabin Humidity Sensor: Supported

Dock - Security Camera (External)

Resolution: 1920×1080

Field of View (FOV): 151°

Auxiliary Light: Auxiliary White Light

Dock - Security Camera (Internal)

Resolution: 1920×1080

Field of View (FOV): 151°

Auxiliary Light: Auxiliary White Light

Dock - Lightning Protection

AC Power Port: 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements

Ethernet Port: 10 kA (Itotal ), meets EN/IEC 61643-21 Category C protection level requirements

Dock - Supported Software

Applications: DJI Pilot 2

Cloud Platform: DJI FlightHub 2, Third-party cloud platforms (accessed through DJI Cloud API)

Dock - Expansion Capability

Open Protocol: DJI Cloud API

Edge Computing: Supports data communication with external switches

Aircraft - General

Weight: 1410 g

Max Takeoff Weight: 1610 g

Dimensions: 335×398×153 mm (L×W×H, without propellers)

Wheelbase: Diagonal Wheelbase: 463.2 mm, Left-Right Wheelbase: 359.9 mm, Front-Rear Wheelbase: 291.4 mm

Max Ascent Speed: 6 m/s (Normal Mode), 8 m/s (Sport Mode)

Max Descent Speed: 6 m/s (Normal Mode), 6 m/s (Sport Mode)

Max Horizontal Speed (at sea level, no wind): Normal Mode: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways ; Sport Mode: 21 m/s flying forward, 18 m/s flying backward, 16 m/s flying sideways

Max Wind Speed Resistance: During Operation: 12 m/s, During Takeoff/Landing: 8 m/s

Max Takeoff Altitude: 4000 m

Max Flight Time: 50 minutes

Max Hovering Time: 40 minutes

Max Operating Radius: 10 km

Max Flight Distance: 43 km

Max Pitch Angle: 25° (Normal Mode), 25° (Sport Mode)

Max Angular Velocity: 250°/s

Global Navigation Satellite System: GPS + Galileo + BeiDou + GLONASS

Hovering Accuracy Range: Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning) ; Horizontal: ±0.3 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)

Operating Temperature: -20° to 45° C (-4° to 113° F)

Ingress Protection Rating: IP54

Motor Model: 2607

Propeller Model: 1149, foldable, non-quick release

RTK Module: Integrated on the aircraft

Beacon: Integrated on the aircraft

Aircraft - Wide-Angle Camera

Image Sensor: DJI Matrice 3D: 4/3 CMOS, Effective Pixels: 20 MP

Lens: DJI Matrice 3D FOV: 84°, Format Equivalent: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞

Lens Defogging: Supported

ISO Range: 100-6400

Shutter Speed: Electronic Shutter: 8-1/8000 s, Mechanical Shutter: 8-1/2000 s

Max Image Size: 5280×3956

Still Photography Modes: Single: 20 MP, Timed: 20 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Low-Light: 20 MP, Panorama: 20 MP (raw image); 100 MP (stitched image)

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 130 Mbps, FHD: 70 Mbps

Supported File System: exFAT

Photo Format: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Aircraft - Tele Camera

Image Sensor: 1/2-inch CMOS, Effective Pixels: 12 MP

Lens: FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞

Lens Defogging: Supported

ISO Range: 100-6400

Shutter Speed: Electronic Shutter: 8-1/8000 s

Max Image Size: 4000×3000

Photo Format: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Still Photography Modes: Single: 12 MP, Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Low-Light: 12 MP

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 85 Mbps, FHD: 30 Mbps

Digital Zoom: 8x (56x hybrid zoom)

Aircraft - Gimbal

Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range: Tilt: -135° to +45°, Roll: -45° to +45°, Pan: -27° to +27°

Controllable Range: Tilt: -90° to +35°, Pan: Not controllable

Max Control Speed (tilt): 100°/s

Angular Vibration Range: ±0.005°

Aircraft - Sensing

Sensing Type: The aircraft supports six-directional obstacle sensing.

Forward Measurement Range: 0.5-21 m, Detection Range: 0.5-200 m, Effective Sensing Speed: Flight Speed ≤ 15 m/s

Backward Measurement Range: 0.5-23 m, Effective Sensing Speed: Flight Speed ≤ 12 m/s

Lateral Measurement Range: 0.5-15 m, Effective Sensing Speed: Flight Speed ≤ 10 m/s

Upward Measurement Range: 0.5-21 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Downward Measurement Range: 0.5-14 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Operating Environment: Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting; Downward: Diffuse reflective surface with diffuse reflectivity > 20%

Aircraft - Video Transmission

Video Transmission System: DJI O3 Enterprise Transmission

Live View Quality: 720p/30fps, 1080p/30fps

Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.850 GHz

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference):

DJI Matrice 3D: FCC: 15 km, CE: 8 km, SRRC: 8 km, MIC: 8 km (Measured in ideal outdoor conditions; actual range may vary. Pay attention to RTH reminders in DJI FlightHub 2.)

Max Transmission Distance (unobstructed, with interference):

Strong Interference: 1.5-3 km (FCC/CE/SRRC/MIC), Medium Interference: 3-9 km (FCC), 3-6 km (CE/SRRC/MIC), Low Interference: 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

Max Download Speed: 5 MB/s (with DJI Dock 2), 15 MB/s (with DJI RC Pro Enterprise)

Lowest Latency: Approximately 110 to 150 milliseconds (from aircraft to dock)

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Aircraft - Storage

Supported Memory Cards: U3/Class10/V30 or above

Recommended microSD Cards:

SanDisk Extreme 32GB V30 A1 microSDHC

SanDisk Extreme PRO 32GB V30 A1 microSDHC

SanDisk Extreme 512GB V30 A2 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

Kingston Canvas React Plus 64GB V90 A1 microSDXC

Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

Kingston Canvas React Plus 128GB V90 A1 microSDXC

Kingston Canvas React Plus 256GB V90 A2 microSDXC

Samsung PRO Plus 256GB V30 A2 microSDXC

Aircraft - Battery

Capacity: 7811 mAh

Voltage: 14.76 V

Max Charging Voltage: 17.0 V

Type: Li-ion 4S

Chemical System: LiNiMnCoO2

Energy: 115.2 Wh

Weight: 544 g

Cycle Count: 400

Charging Temperature: 5° to 45° C

Aircraft - Power Adapter

Input: 100-240 V (AC), 50/60 Hz, 2.5 A

Output Power: 100 W

Output: Max output power of 100 W (total)

Aircraft - Charging Base

Input: USB-C: 5-20 V, 5.0 A

Output: Battery Port: 12-17 V, 8.0 A

Rated Power: 100 W

Charging Type: One battery charged at a time

Charging Temperature: 5° to 40° C

Others

Guaranteed software updates until 2025/12/31
