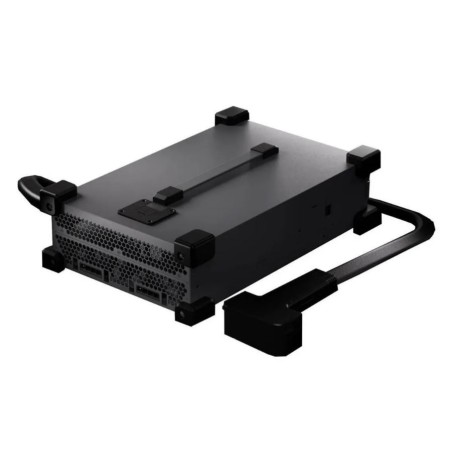

DJI C10000 Intelligent Power Supply (Charger)

The DJI C10000 Charger is a robust 10,000-watt charging unit designed to deliver optimal performance for DJI Agras T50 and T40 batteries. This high-efficiency charger minimizes downtime by charging batteries 1 to 2 minutes faster than the DJI Agras T30 or C8000 chargers, achieving a full charge in just 9 to 12 minutes when using a 220-volt outlet.

Key Features:

• Compatibility: Fully compatible with DJI Agras T50 and T40 batteries.
• Efficiency: Faster charging times help reduce operational delays and boost productivity.
• Seamless Integration: Designed to work directly with DJI Agras T50 and T40 Battery Cooling Stations, eliminating the need for additional adapters.
• Robust Design: Built to withstand demanding agricultural environments, ensuring durability and reliability.

Upgrade to the DJI C10000 Charger to enhance operational efficiency and keep your DJI Agras drones prepared for action.

Specifications

Model Number: CSX702-9500

Dimensions: 400 × 266 × 120 mm

Weight: Approximately 11.4 kg

Input/Output:

Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX

Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX

Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX

Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX

Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX

Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX

Charging Time: Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery)

Protection Functions:

Over-voltage protection

Over-charge protection

Under-voltage protection

Over-temperature protection

Charging Safety:

AC wire protection

Power wire protection

Charge connector protection
