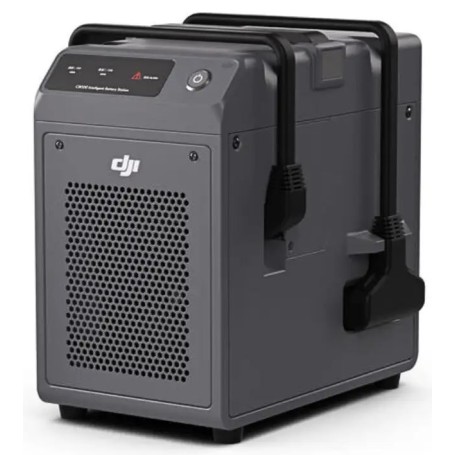

DJI C8000 Intelligent Power Supply (Charger)

The DJI C8000 Intelligent Battery Station is a state-of-the-art charging solution engineered to streamline the charging process for DJI DB2000 Intelligent Flight Batteries and other compatible models. Capable of charging up to two batteries simultaneously, this station delivers both dual and rapid charging features to keep your drones operational at all times. With an impressive maximum power output of 7200W, it integrates seamlessly with standard generators, ensuring efficient and swift charging.

• Compatible with both 110/120 V and 220/240 V power sources
• Peak Power Consumption: 8000 watts

Charger Compatibility:

• DJI Agras T30
• DJI Agras T40
• DJI Agras T20P
• DJI Agras T50
• DJI Agras T25
• DJI FlyCart 30

Specifications:

Model Number: CHX101-7000

Dimensions: 300 × 280 × 230 mm

Weight: Approx. 11.5 kg

Input Voltage: 100-240 VAC

Output Voltage: 59.92 V

Output Current: Max 100 A

Charging Time: Fully charges a DB800 Intelligent Flight Battery in 9 to 12 minutes

Protection Features:

Over-temperature protection

Over-voltage protection

Under-voltage protection

Short-circuit protection

Fan stall protection

Safety Measures:

AC wire protection

Power wire protection

Charge connector protection
