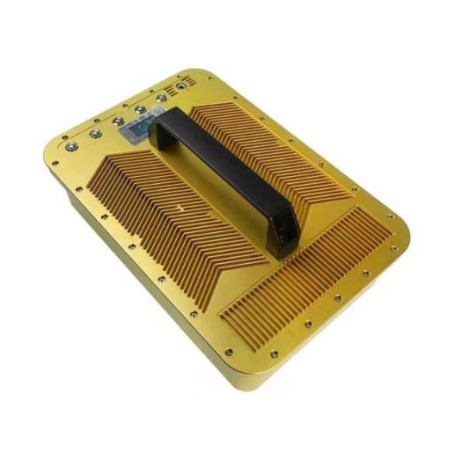

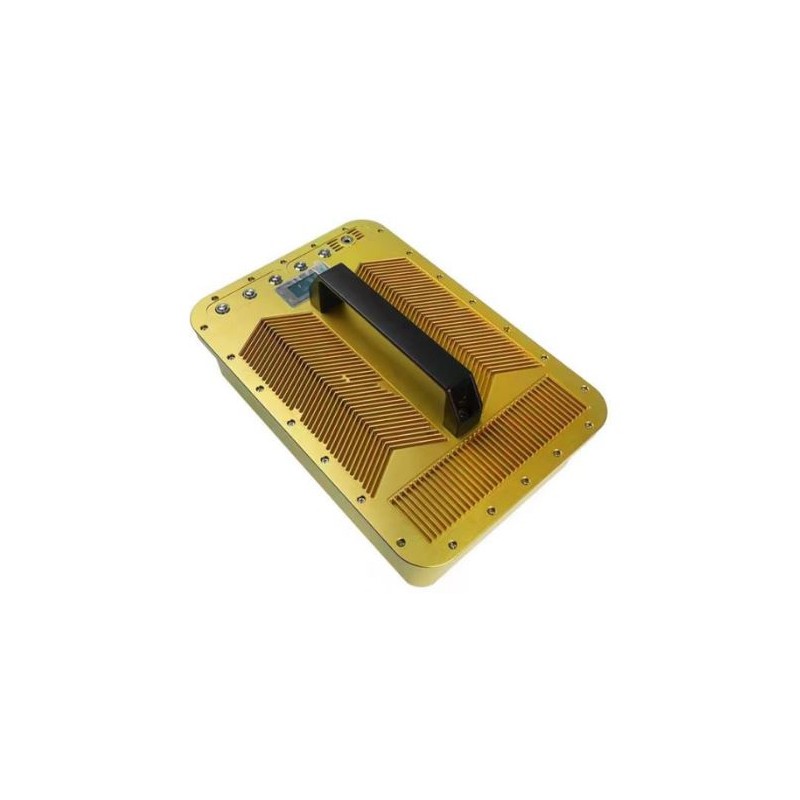

Sinton STN-D3000 - Portable Drone Jammer

The STN-D3000 drone jammer effectively disrupts communication between the drone and its ground controller, forcing the drone to return home or land immediately within a range of 1500-2000 meters, depending on the environment. This prevents the drone from sending reconnaissance photos or videos back to the ground.

Key Features:

1. Upgraded Version: Enhanced structural design and module functionality for better performance.
2. Portable Design: Lightweight and compact, making it easy to carry.
3. High Output Power: 140W output ensures effective and stable jamming signal transmission.
4. Multi-Channel Jamming: Capable of jamming on 5 different frequency channels.
5. Long Range: Jamming range of 1500-2000 meters, depending on real-world conditions.
6. Individual Channel Control: Each channel can be controlled by a dedicated button.
7. Extended Battery Life: Built-in rechargeable battery provides 40-50 minutes of operation.
8. LCD Screen: Displays remaining battery capacity for real-time monitoring.
9. Durable Build: Made from military-grade resin and aluminum alloy for durability.
10. IP55 Protection: Waterproof, heat-resistant, anti-shock, and break-resistant design for use in harsh environments.

How to Operate:

1. Check Battery Status: Ensure the jammer is fully charged by checking the LCD screen.

2. Select Jamming Mode: Press the buttons to activate the desired function:

   • Mode 1: Forces the drone to return home.
   • Mode 2: Forces the drone to land.

   Available Frequencies:

   • 900M
   • 2.4G
   • 5.2G
   • 5.8G
   • 1.5G (for Mode 2)

3. Target the Drone: Aim the jammer at the drone, and it will disrupt its signal instantly.

4. Power Conservation: To extend the device’s lifespan, limit jamming operations to 5-minute intervals. Turn off the device when not in use to conserve battery power.

Packing List:

• 1 x Jammer
• 1 x AC Adapter
• 1 x Briefcase

Specifications:

• Model Number: STN-D3000
• Jamming Range: 1500-2000 meters (depending on environmental conditions)
• Jamming Frequencies & Output Power:
  • 860-930 MHz: 10W
  • 1550-1620 MHz: 20W
  • 2400-2483 MHz: 40W
  • 5150-5250 MHz: 20W
  • 5725-5850 MHz: 50W
• Total Output Power: 140W
• Dimensions: 334 x 223 x 140 mm
• Weight: 3.85 kg
• Effective Angle: 30°
• Material: Aluminum alloy + ABS plastic
• Battery Life: 40-50 minutes
• Operating Temperature: -20°C to 55°C
• Humidity Range: 35-85%
• Power Consumption: ≤340W
• DC Power: 24V/10A
• AC Power Input: AC 29.4V

Working Principle:

The jammer transmits a high-power jamming signal that interferes with both the communication link between the drone and its ground controller, as well as the GPS navigation signal. This forces the drone to either land or return home within 5 seconds, depending on the selected mode of operation.
