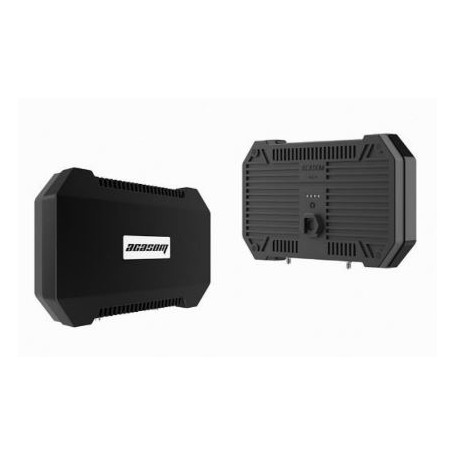

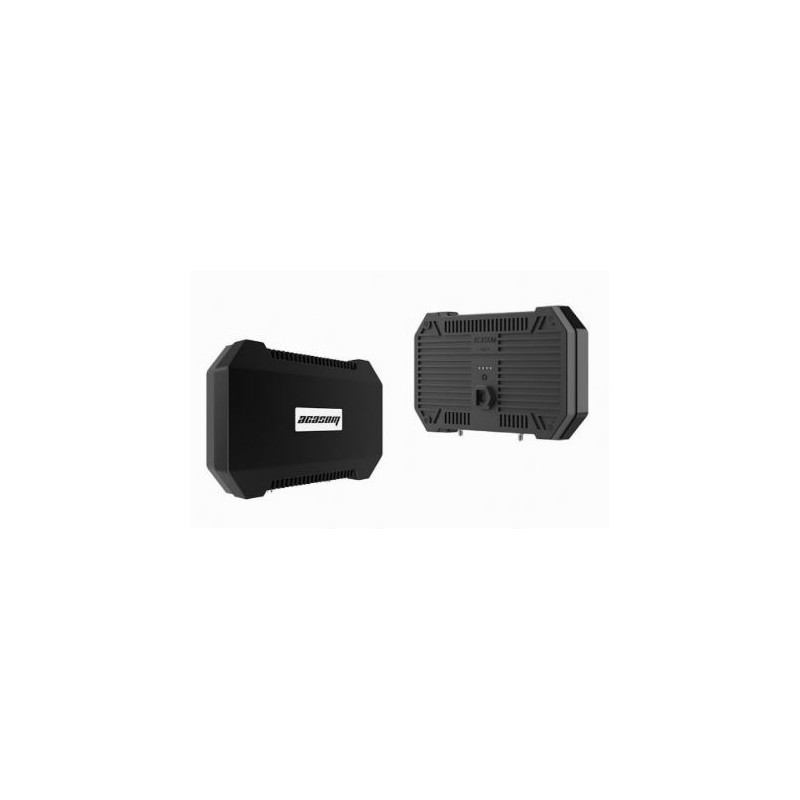

Sinton STN-ROC10 - signal booster Antenna 10W 8000mAh

This high-performance signal booster is perfect for extending the signal range of drones and FPV systems, providing consistent, reliable connectivity in challenging environments. Its robust design and large battery ensure uninterrupted usage, making it an ideal choice for professionals and hobbyists alike.

1179.57 $
Tax included

959 $ net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

10W 8000mAh Tri-Band Signal Booster Antenna for FPV and Drone Applications

Applications:

  • FPV (First Person View) Signal Booster
  • Drone Signal Extender

Key Features:

  • High Power Output: Delivers up to 10W of maximum output power for stronger, longer-range signals.
  • Large Battery Capacity: Equipped with an 8000mAh battery, offering extended operation without frequent recharges.
  • Tri-Band Compatibility: Supports 2.4G, 5.2G, and 5.8G frequency bands simultaneously with seamless switching between bands for versatile connectivity.
  • Premium Build Quality: Constructed with an all-aluminum shell to enhance durability and provide superior heat dissipation for reliable performance.

This high-performance signal booster is perfect for extending the signal range of drones and FPV systems, providing consistent, reliable connectivity in challenging environments. Its robust design and large battery ensure uninterrupted usage, making it an ideal choice for professionals and hobbyists alike.



Technical Specifications:

ParameterSpecification
Frequency Range 2400-2500 MHz, 5150-5850 MHz
Maximum Output Power 40dBm (10W)
Antenna Gain 15dB ±1 (2.4G), 18dB ±1 (5.2G/5.8G)
Battery Capacity 8000mAh
Receiving Gain 16dB ±1
Transmission Gain 18dB ±1
Input Trigger Power Min: 3dBm, Max: 23dBm
EVM (Error Vector Magnitude) < 3% @ 33dBm (802.11g, 54Mbps, OFDM, 64QAM, 20MHz BW)
< 3% @ 33dBm (802.11a, 54Mbps, OFDM, 64QAM, 20MHz BW)
Noise Figure < 2.5dB
Current Supply 2.2A @ Pout 40dBm, 12V
TX/RX Switch Time Delay < 1 μs
Charging Voltage 5V/2A
LED Indicator 4 Blue LEDs
Charging Port Type-C
RF Connector SMA-Female
Operating Temperature -30°C to +70°C
Storage Temperature -40°C to +150°C
Operating Humidity Up to 95% relative humidity
Shell Dimensions 230mm x 146mm x 39mm
Shell Material Aluminum
Net Weight 0.53 kg
