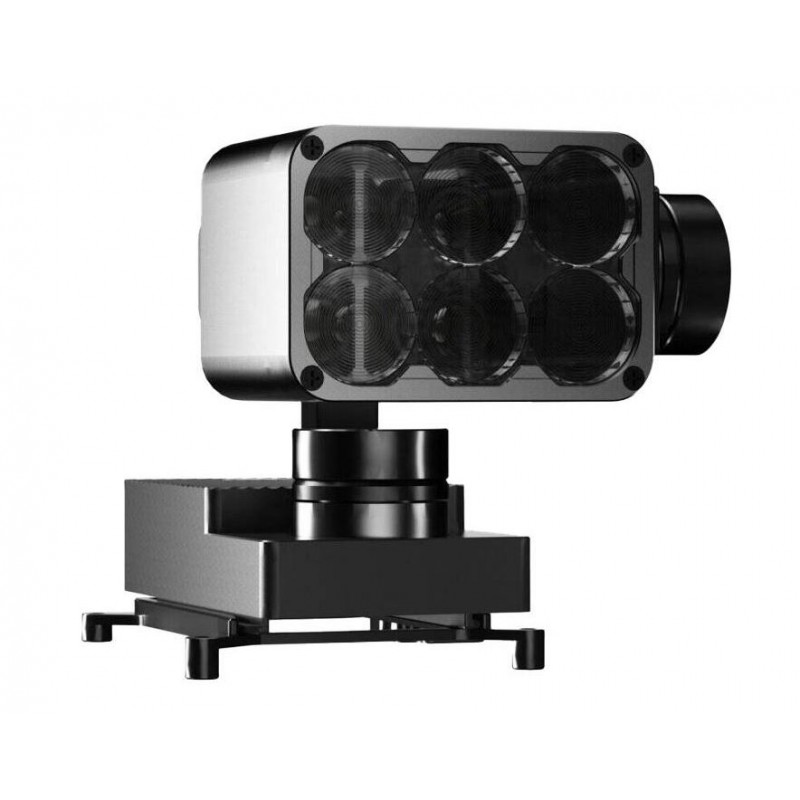

CZI GL60 Mini Gimbal Searchlight for DJI Matrice 30/30T
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

CZI GL60 Mini Gimbal Searchlight for DJI Matrice 30/30T

The GL60 Mini Gimbal Searchlight offers a lightweight design with a powerful rated output of 65 W, delivering an intense brightness of 7000 lumens. This enables an effective search distance of up to 150 meters. With uniform brightness and excellent color consistency, the GL60 Mini excels in night inspections, search and rescue missions, and other demanding applications.

1952.32 $
Tax included

1587.25 $ net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

The GL60 Mini Gimbal Searchlight offers a lightweight design with a powerful rated output of 65 W, delivering an intense brightness of 7000 lumens. This enables an effective search distance of up to 150 meters. With uniform brightness and excellent color consistency, the GL60 Mini excels in night inspections, search and rescue missions, and other demanding applications.

Advanced 3-Axis Gimbal Stabilization
Equipped with 3-axis gimbal stabilization, the GL60 Mini ensures precise positioning and seamless adaptation to movements, enhancing stability and resistance to shocks.



Set Includes

  • GL60 Mini lighting unit
  • Protective transport case



Specifications

  • Model: GL60 Mini
  • Interface: DJI OSDK
  • Weight: 240 grams
  • Dimensions: 158 x 87 x 82 mm
  • Total Power: 65 W
  • LED Power: 60 W
  • Voltage: 24 V
  • Brightness: 7000±3% lumens
  • Light Flux (FOV): 13°
  • Lighting Range:
    • 150m: Beam diameter 34m, Lighting area 917 m², Central Lux 7
    • 100m: Beam diameter 22.8m, Lighting area 407 m², Central Lux 16
    • 50m: Beam diameter 11.4m, Lighting area 102 m², Central Lux 60
  • Gimbal Rotation Range:
    • Pitch Axis: -70° to +90°
    • Yaw Axis: ±125°
    • Roll Axis: ±125°
  • Operating Temperature: -20°C to +50°C
  • Compatibility: DJI Matrice 30, Matrice 30T
