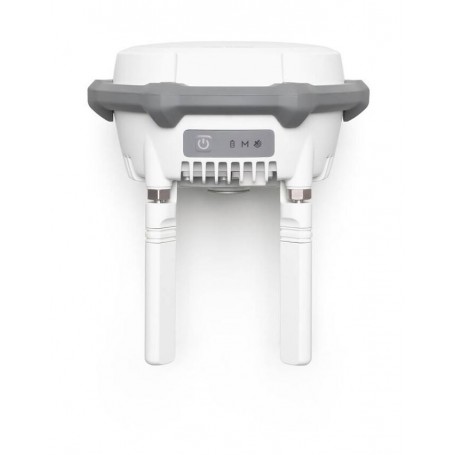

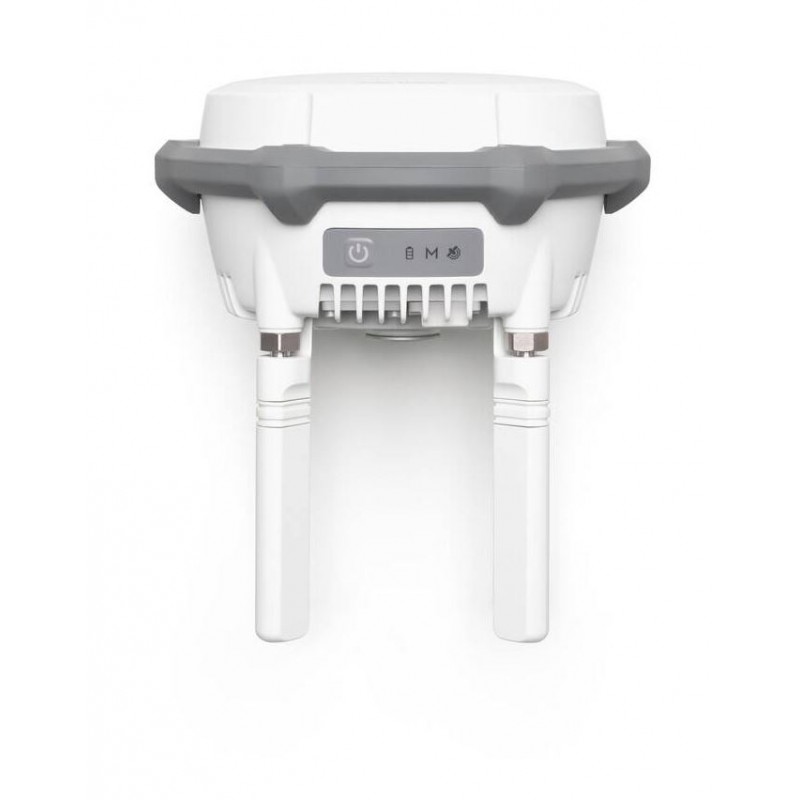

DJI D-RTK 3 Multifunctional Station
The new D-RTK 3 Multifunctional Station is a cutting-edge solution for high-precision drone operations, integrating advanced antennas and receiver modules capable of tracking global satellite navigation systems. It supports multiple data transmission links and offers versatile modes, including base station, relay station, and rover station modes.
1765.05 $
Tax included
1435 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
The new D-RTK 3 Multifunctional Station is a cutting-edge solution for high-precision drone operations, integrating advanced antennas and receiver modules capable of tracking global satellite navigation systems. It supports multiple data transmission links and offers versatile modes, including base station, relay station, and rover station modes. This makes it ideal for applications such as aerial surveying, extending operational range, and providing centimeter-level positioning for multiple drones simultaneously. With robust performance and innovative features, the D-RTK 3 ensures secure and accurate operations in even the most challenging environments.
Base Station Mode:
D-RTK 3 supports O4 Enterprise video transmission with four external directional antennas, enabling 15 km video transmission in broadcast mode while maintaining stable signals in all directions. It allows multiple drones to connect to a single base station without additional configuration, providing centimeter-level positioning.
D-RTK 3 supports O4 Enterprise video transmission with four external directional antennas, enabling 15 km video transmission in broadcast mode while maintaining stable signals in all directions. It allows multiple drones to connect to a single base station without additional configuration, providing centimeter-level positioning.
Relay Station Mode:
In relay station mode, D-RTK 3 can be set up in elevated locations to overcome signal obstructions in urban areas or valleys. This extends the operational range of the Matrice 4 series up to 25 kilometers and enhances video transmission distance. It also supports obstruction sensing with real-time calculations to ensure optimal communication quality.
In relay station mode, D-RTK 3 can be set up in elevated locations to overcome signal obstructions in urban areas or valleys. This extends the operational range of the Matrice 4 series up to 25 kilometers and enhances video transmission distance. It also supports obstruction sensing with real-time calculations to ensure optimal communication quality.
Rover Station Mode:
D-RTK 3 can function as a rover station to collect control point coordinates, improving UAV aerial survey accuracy. This mode is efficient and flexible, making it an excellent tool for high-precision surveying applications.
D-RTK 3 can function as a rover station to collect control point coordinates, improving UAV aerial survey accuracy. This mode is efficient and flexible, making it an excellent tool for high-precision surveying applications.
Stronger Performance and Accurate Positioning:
D-RTK 3 features an air dielectric antenna with advanced filtering design to track low-elevation satellites effectively. Its phase-center accuracy is maintained at millimeter levels, ensuring resistance to multipath interference for precise positioning in complex environments. The built-in receiver module supports five major satellite systems across nineteen frequency points, providing more accurate results than network RTK under ionospheric effects.
D-RTK 3 features an air dielectric antenna with advanced filtering design to track low-elevation satellites effectively. Its phase-center accuracy is maintained at millimeter levels, ensuring resistance to multipath interference for precise positioning in complex environments. The built-in receiver module supports five major satellite systems across nineteen frequency points, providing more accurate results than network RTK under ionospheric effects.
Standalone Precise Point Positioning (PPP):
Using DJI’s proprietary PPP solution, D-RTK 3 enables satellite-based auto convergence, offering free decimeter-level positioning even in poor network conditions (currently supports BeiDou PPP-B2b only).
Using DJI’s proprietary PPP solution, D-RTK 3 enables satellite-based auto convergence, offering free decimeter-level positioning even in poor network conditions (currently supports BeiDou PPP-B2b only).
Network High-Precision Calibration:
D-RTK 3 can receive RTCM data for automatic coordinate calibration through the network, achieving centimeter-level precision positioning outdoors without pre-measuring setup points.
D-RTK 3 can receive RTCM data for automatic coordinate calibration through the network, achieving centimeter-level precision positioning outdoors without pre-measuring setup points.
Supported Models:
Base Station Mode:
Enterprise:
Enterprise:
- DJI Matrice 4 series
- DJI Matrice 3D/3TD*
- Matrice 300/350 RTK*
- Matrice 30 Series*
- DJI Mavic 3 Enterprise Series*
- T60*
- T50/T25*
- T40/T20P*
- DJI FlyCart 30*
- DJI Inspire 3*
- Supports Matrice 4E/Matrice 4T
- Supports Bluetooth 5.1 and is compatible with Android 10 and above.*
Kit contents:
D-RTK 3 station
Set of 4 OcuSync antennas
Carrying case
D-RTK 3 station
Set of 4 OcuSync antennas
Carrying case
Specs
GNSS Receiver
- GNSS Frequency:
- GPS: L1C/A, L2C, L5
- BDS: B1I, B2I, B3I, B1C, B2a, B2b
- GALILEO: E1, E5a, E5b, E6
- GLONASS: L1, L2
- QZSS: L1C/A, L2C, L5
- L-Band
- System Accuracy:
- Base Station Mode (Broadcast Mode) and Relay Station Mode:
- Base Station Accuracy:
- Single Point Accuracy (Uncalibrated):
Horizontal: 1.5 m (RMS)
Vertical: 3.0 m (RMS) - Satellite-Based Differential Accuracy:
Convergence Time: 20 mins
Horizontal: 30 cm (RMS)
Vertical: 40 cm (RMS) - Network RTK Calibration:**
Horizontal: 1.0 cm (RMS) + 1 ppm
Vertical: 3.0 cm (RMS) + 1 ppm
- Single Point Accuracy (Uncalibrated):
- Rover Station Mode*:
- RTK Accuracy (Fixed Survey):
Horizontal: 0.8 cm (RMS) + 1 ppm
Vertical: 1.5 cm (RMS) + 1 ppm - RTK Accuracy (Tilt Survey)***:
Angle Range: 0° to 60°
Horizontal: 8 mm + 0.7 mm/° tilt (accuracy <2 cm within 30°)
- RTK Accuracy (Fixed Survey):
- Base Station Accuracy:
- Base Station Mode (Broadcast Mode) and Relay Station Mode:
- Satellite-Based Precise Point Positioning (PPP):
- Supported Frequencies: BDS B2b, GALILEO E6**, L-BAND**
- Convergence Time: 20 mins
Horizontal: 30 cm (RMS)
Vertical: 40 cm (RMS)
- Differential Data Transmission Format:
- Records RTCM 3.2 raw observation data in DAT format for Base/Relay stations.
- Initialization Reliability: >99.9%
- Video Transmission System: O4 Enterprise
- Operating Frequency:
- Relay Station Mode: O4 – 2.4 GHz/5.2 GHz/5.8 GHz
- Broadcast Mode: O4 – 2.4 GHz/5.8 GHz
- Max Transmission Distance (Base Station Mode): FCC – Up to 15 km
- Bluetooth Protocol: Bluetooth 5.1
- Power Consumption: Relay Station – Max 14.5 W; Base Station – Max 7 W
- Battery Type: LiPo; Capacity – 6500 mAh; Energy – 46.8 Wh
- Operating Temperature Range: -20°C to +55°C (-4°F to +131°F)
- Protection Rating: IP67
- Dimensions (without antennas): Approx. 163 × 89 mm
- Weight: Approx. 1.26 kg
