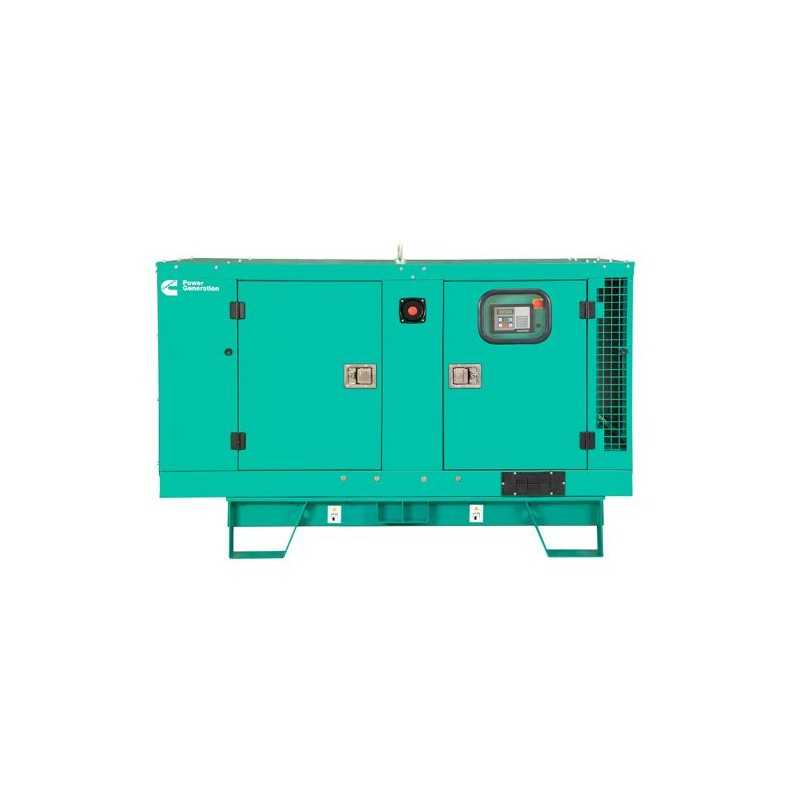

Cummins 6BTAA5.9-G2 Power Generator - 145 kVA/116 kW in Canopy (2021)

Delivery time 2-3 weeks (FCA Sulejówek).

6BTAA5.9-G2 - General Information

Model: 6BTAA5.9-G2 (120KW)

Type: 6 Cylinders in Line, 4 Stroke Diesel

Displacement: 5.9L

Bore * Stroke: 102 * 120

Net Weight: 411 Kg

Overall Dimension: 1110mm*750mm*988mm

Engine Configuration No.: D403050MX02

Manufacture Plant: Dongfeng Cummins Plant

6BTAA5.9-G2 - Performance Data

Rated Power/Speed (1500 rpm): 120 kW/161HP @ 1500 rpm

Standby Power/Speed (1500 rpm): 130 kW/174HP @ 1500 rpm

Rated Power/Speed (1800 rpm): 132 kW/177HP @ 1800 rpm

Standby Power/Speed (1800 rpm): 145 kW/194HP @ 1800 rpm

Torque @Rated/Standby Power: 764/828 N.m @ 1500 rpm

Low Idle Speed: 950-1050 rpm

Fuel Consumption @ Running: ≤ 244g/Kw.h

6BTAA5.9-G2 - Technical Specification

Aspiration: Turbocharged/Charge Air Cooled

Fuel System: BYC PB Pump/GAC Governor

Governor Type: Electronic, Regulation 1%-5%

Compression Ratio: 17.5:1

Electrical System (Starter Motor/Alternator): 12V/24V

Lowest Starting Temp Without auxiliary system: -12℃

Engine Cooling Fluid Volume: 9.9 L

Cooling Method: Water Cooled
