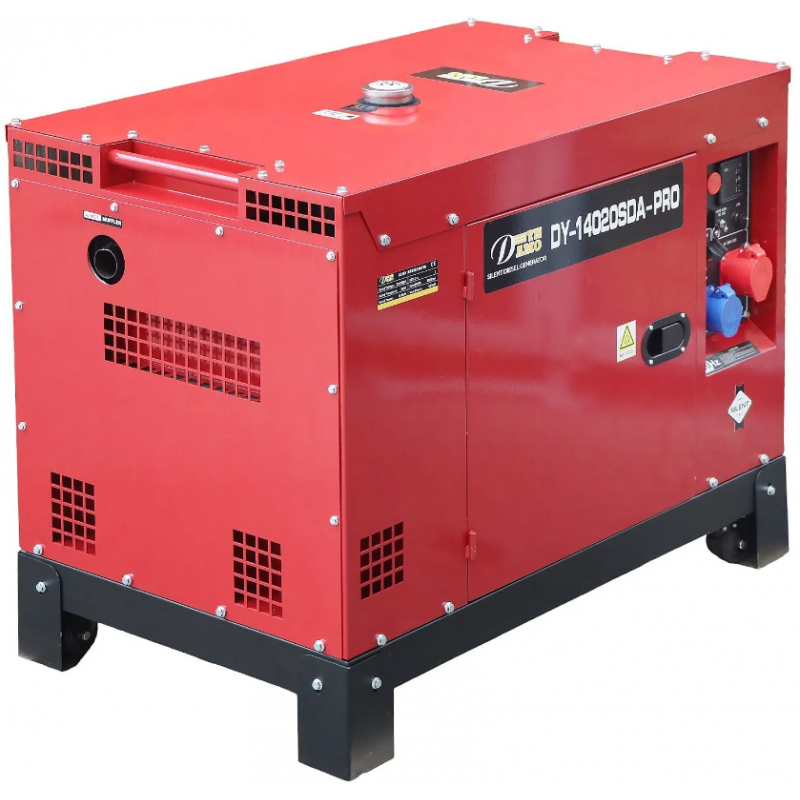

Senci Dynamo DY-14020SDA-PRO 14kW power generator

This power generator, featuring an electric starter, is ideal for providing reliable power during outages or serving as a backup power source in various settings, including businesses, construction sites, homes, or workshops.

The unit’s rubber stabilizers, engine mounts, and additional soundproofing in the engine compartment ensure low noise levels during operation.

Note: This generator is not intended for continuous 24/7 use. For extended operation, ensure the load does not exceed 75% of its nominal power.

Important: The starter battery is disconnected by default. Before the first use, connect the battery as outlined in the user manual. If you need assistance, please contact Technical Support.

Specifications

Nominal Power: 14 kW (4.5 kW for single-phase socket)

Maximum Power: 15 kW

Output Voltage: 230 V AC, 400 V AC

Number of Outlets:

1 single-phase, 32 A IEC 60309

1 three-phase, 32 A IEC 60309

Output Frequency: 50 Hz

ATS Compatible: Yes

Voltage Stabilization: AVR

Built-in Voltmeter: Yes

Frequency Measurement: Yes

Engine Hours Meter: Yes

12V DC Output: No

Engine Power: 23 HP

Engine Capacity: 1247 cm³

Engine Type: Diesel engine with direct fuel injection, 2V95 - V-shaped, 2-cylinder, air-cooled

Starting Method: Electric (starter motor)

Noise Level: 72 - 78 dB

Average Fuel Consumption: 1.7 l/h

Fuel Tank Capacity: 26 l

Fuel Gauge: Yes

Main Features:

Low oil level indicator light

Overload protection

Display for operating parameters: voltage, frequency, engine hours since last start, total engine hours

Battery: 12V/60Ah included

Color: Red

Weight: 297 kg

Dimensions: 1160 x 690 x 910 mm

Manufacturer/Brand: SENCI / Dynamo

Warranty: 2 years
