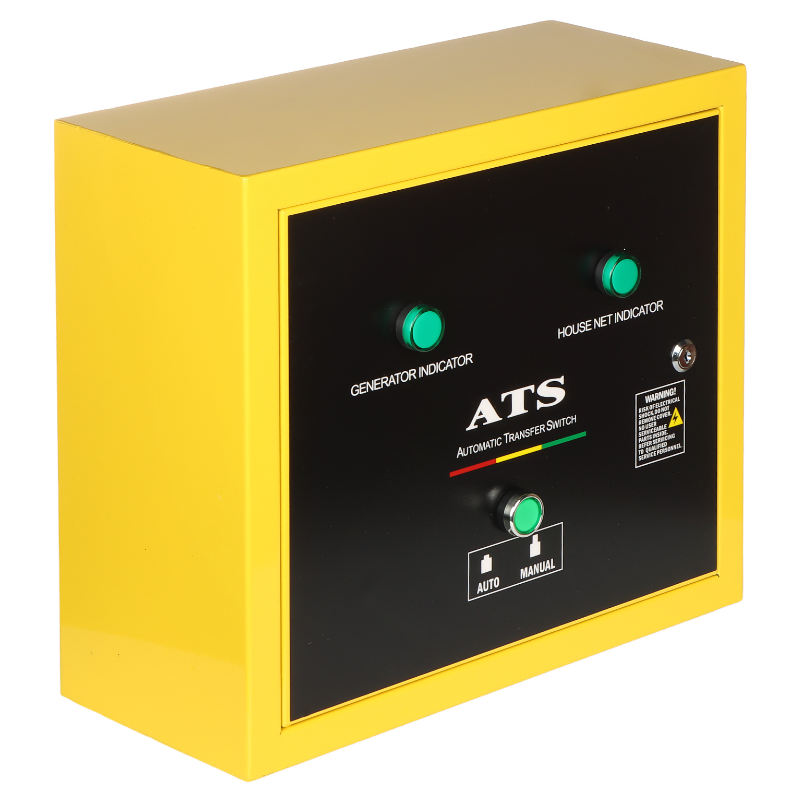

Dynamo DY-ATS-10020A automatic transfer switch

The automation module, also known as the ATS (Automatic Transfer Switch), is designed to seamlessly manage the transition between the electrical network and a generator. In the event of a power outage or a significant voltage drop in the mains, the ATS automatically starts the generator and switches the power supply to it. Once the mains power is restored, the module switches back to the mains supply and shuts down the generator.

Specifications

Model: DY-10020A

Maximum Power: 15 kW

Nominal Power:

12 kW @ 230 V

14.5 kW @ 400 V

Maximum Current:

50 A @ 230 V

63 A @ 400 V

Battery Charging Current: 1.5 A

Isolation Class: F

Protection Rating: IP41

Operating Temperature / Relative Humidity: -15 °C to 60 °C / ≤ 95%

Weight: 11 kg

Dimensions: 430 x 380 x 180 mm

Manufacturer/Brand: Dynamo

Warranty: 3 years
