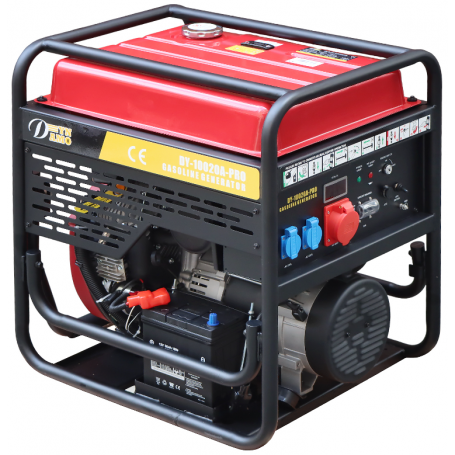

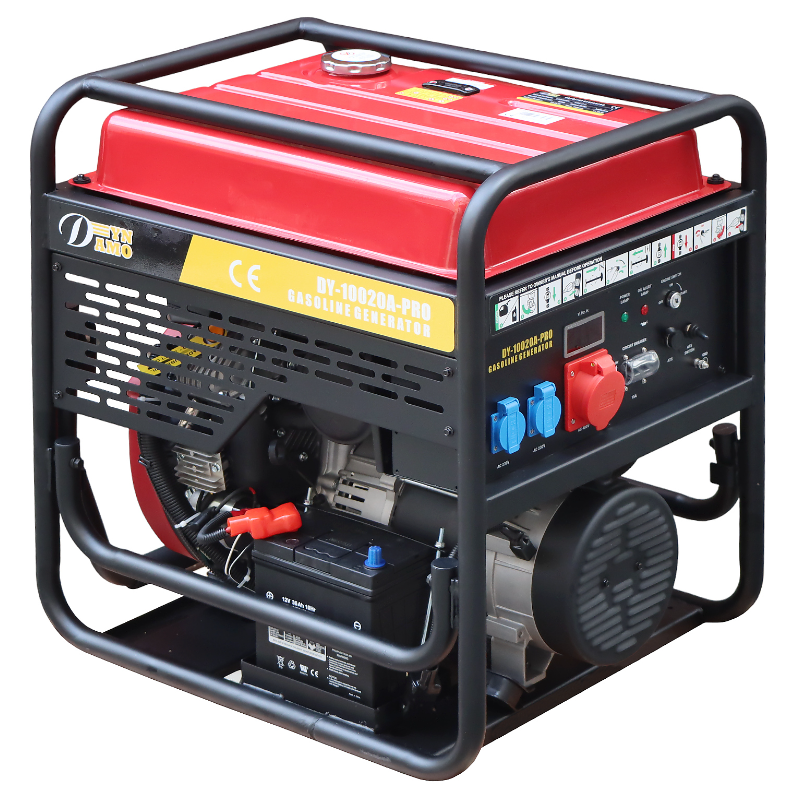

Senci Dynamo DY-10020A-PRO 10 kW power generator

This power generator, equipped with an electric starter, is ideal for providing emergency power during outages or serving as a backup power source at a company, construction site, home, or workshop.

The generator features rubber stabilizers and engine mounts to reduce vibrations and noise, ensuring smooth and quiet operation.

Important: This generator is not intended for continuous 24/7 use. For prolonged operation, it should be loaded to no more than 75% of its nominal power.

Note: The starter battery is shipped disconnected. Before the first use, please connect it according to the user manual. If you have any questions, contact the Technical Support Department.

Specifications

Nominal Power: 10 kW (3 kW for single-phase socket)

Maximum Power: 11 kW

Output Voltage:

230 V AC

400 V AC

Number of Outlets:

1 three-phase, 32 A IEC 60309

2 single-phase, 16 A CEE 7/4 (Schuko)

Output Frequency: 50 Hz

ATS Compatible: Yes

Built-in Voltmeter: Yes

Voltage Stabilization: AVR

Frequency Measurement: Yes

Engine Hours Measurement: Yes

12V DC Output: Yes

Engine Power: 18 HP

Engine Capacity: 688 cm³

Engine Type: SV690 - V-shaped, 2-cylinder, gasoline, air-cooled

Starting Method: Electric - starter motor

Noise Level: 90 dB

Average Fuel Consumption: 5.6 l/h

Fuel Tank Capacity: 45 l

Fuel Gauge: Yes

Main Features:

Low oil level indicator light

Overload protection

Display of operating parameters: voltage, frequency, engine hours since the last start, and total engine hours

High mobility with included wheels

12V / 36Ah battery included

Color: Black + Red

Weight: 170 kg

Dimensions: 730 x 600 x 780 mm

Manufacturer/Brand: SENCI / Dynamo

Warranty: 2 years
