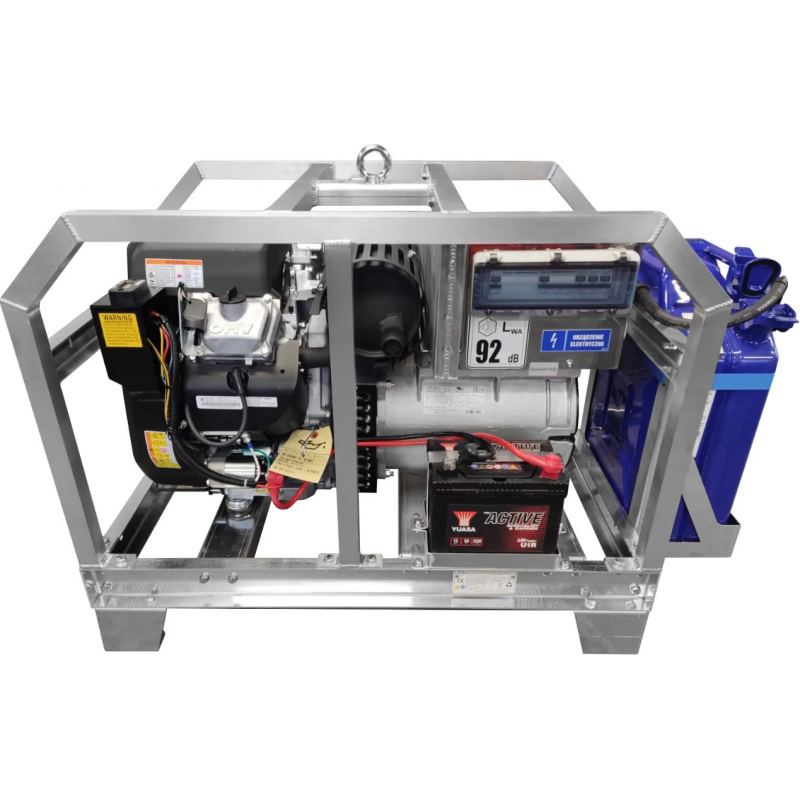

Puvire PE13.5 13,5kW 3-phase power generator

This high-performance three-phase generator is powered by a robust 720cc Yamaha EH series engine, renowned for its reliability and efficiency. Designed for both durability and convenience, it features an electric start and a portable 20-liter fuel tank. The generator comes standard with four AC outlets and built-in Automatic Voltage Regulation (AVR) for stable power delivery.

It stands out as one of the most efficient and economical generators in its class, combining a welded and bolted frame for ease of use and optimal load distribution during transport.

Key Features

• Electric Start: Yes
• High-Quality Alternator: MeccAlte
• Digital Hour Meter: Yes
• Automatic Voltage Regulation (AVR): Yes
• Number of AC Outlets: Up to four
• Compliance: Meets Stage V emissions standards

Technical Specifications

Model: PUVIRE PE13.5 (Gasoline)

Maximum Power (400V AC): 14.2 kVA (cos φ 0.8)

Rated Power (400V AC): 13.5 kVA (cos φ 0.8)

Maximum Power (230V AC): 8.6 kW (cos φ 1)

Rated Power (230V AC): 7.8 kW (cos φ 1)

Nominal Current (400V): 19.5 A

Nominal Current (230V): 33.9 A

Starting Capacity: 21 kVA

AC Frequency: 50 Hz

AC Sockets:

1 x 32A/400V (IP44)

2 x 16A/230V 2P+Z (IP44)

1 x 16A/230V 3P (IP44)

AVR (Automatic Voltage Regulation): Yes

Protection Class: Class I (requires grounding)

Degree of Protection: IP23

Total Harmonic Distortion (THD): <5%

Generator Brand: MeccAlte ET20F-200

Engine: Yamaha EH72, 1-cylinder, air-cooled

Fuel Type: Gasoline or Propane-Butane

Operating Time at 75-85% Load: Approximately 5 hours (gasoline)

Fuel Tank Capacity: 20 liters (replaceable canister)

Electric Start: Yes

Engine Speed: 3000 rpm

Cooling Type: Air

Dimensions (L x W x H): 850 mm x 570 mm x 700 mm (1024 mm with tank)

Dry Weight (without fuel): 138 kg

Frame Material: Aluminum PA11/PA13

Transportation: Suitable for forklifts, pallet trucks, and cranes

Standard Equipment:

Hour Counter

Oil Alarm

Battery

Yamalube Oil

Overload Protection

Residual Current Circuit Breaker
