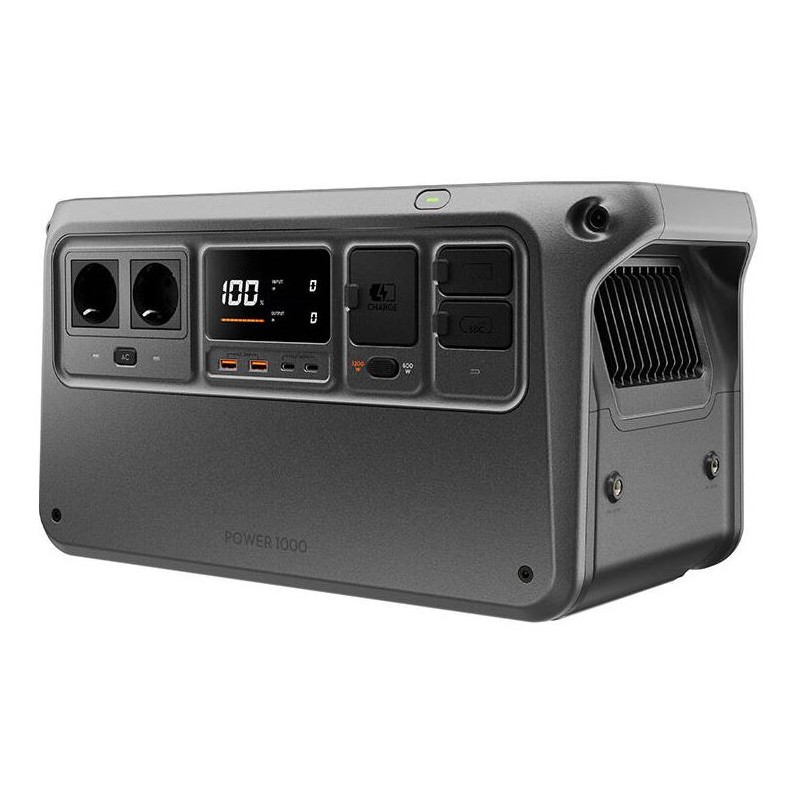

DJI Power 1000 - 1024Wh Portable Power Station

Unmatched Ultra-High-Capacity Power Output

The DJI Power 1000 offers an impressive battery capacity of 1024 Wh, delivering a consistent output of 2200 W until depletion. It boasts a maximum power output of 2600 W and a peak output of 4400 W. With its ability to rapidly charge DJI drone batteries, this power station ensures you can swiftly resume your aerial creativity.

Rapid Charging for DJI Drones

Utilize the DJI Power SDC super-fast charge function, with separate charging cables (sold separately), to quickly charge compatible DJI drone batteries and be ready for flight in approximately 30 minutes. Equipped with three drone batteries and the DJI Power 1000, you can enjoy a full day of uninterrupted flying and content creation.

Versatile Recharging Options

The DJI Power 1000 can be recharged through three different methods: grid power, solar power, and car power, providing flexibility for any situation.

• Grid Power: Recharge quickly and effortlessly by plugging into grid power. It supports a 1200W Fast Recharge Mode and a 600W Standard Recharge Mode. Achieve a full charge in just 70 minutes or reach 80% in 50 minutes.

• Solar Power: Connect to solar panels using the DJI Power Solar Panel Adapter Module (MPPT) or the DJI Power Car Power Outlet to SDC Power Cable for environmentally friendly recharging. The MPPT (Maximum Power Point Tracking) algorithm ensures optimal efficiency by adjusting to the highest voltage and current values from the solar panels. With DJI-certified Zignes solar panels, the Power 1000 can be fully recharged in approximately 1.35 to 2.8 hours.

• Car Power: Conveniently recharge on the go with the DJI Power Car Power Outlet to SDC Power Cable (12V/24V), perfect for road trips.

Comprehensive Safety and Protection

Safety is paramount with the DJI Power 1000, which features an extensive safety design from its structural build to its software. It has passed 26 product tests by the Swiss third-party authority SGS, ensuring reliable and safe usage.

• SGS Certification: The DJI Power 1000 is SGS Switzerland certified, having undergone 26 tests, including mechanical performance, electrical performance, environmental resistance, noise levels, and intelligent DC power-supplying and recharging tests.

• Intelligent Battery Management System (BMS): This system automatically activates protective measures if electricity usage exceeds safe levels and resumes normal operation once conditions stabilize.

• LFP Cell: Utilizing LFP (lithium ferrophosphate) cells, the Power 1000 offers a long lifespan of approximately 10 years with up to 4000 cycles.

• Temperature Sensors: Equipped with 11 temperature sensors, the device monitors heat dissipation, allowing it to function effectively even at temperatures up to 40°C (104°F).

• High-Strength Structure: Constructed with flame-retardant materials and supporting up to 100 kg (220 lbs), the Power 1000 offers enhanced durability and protection.

• Power Outage Protection: Ten fuses throughout the power station provide circuit protection, ensuring a quick and safe response to any circuit abnormalities.

• UPS Mode: In the event of a power outage, the Power 1000 can switch to UPS (Uninterruptible Power Supply) mode and continue powering connected devices within 0.02 seconds.

Whisper-Quiet Operation

With a noise level as low as 23 dB during recharging, the DJI Power 1000 operates quietly, making it ideal for quiet environments and camping.

Dual 140W USB-C Ports

The Power 1000 features two 140W USB-C ports, offering a total power output of up to 280W, surpassing the common dual 100W USB-C outputs. It supports up to PD 3.1 140W charging, making it suitable for high-performance laptops and other demanding devices.

In the Box

• DJI Power 1000 × 1
• DJI Power AC Power Cable × 1

Specifications

• Model: DYM1000H
• Capacity: 1024 Wh
• Net Weight: Approx. 13 kg
• Dimensions: 448 × 225 × 230 mm (L × W × H)
• Number of Ports: AC Output × 2, USB-C × 2, USB-A × 2, SDC × 1, SDC Lite × 1, AC Input × 1
• Max Operating Altitude: 3000 m

Output Specifications

• AC Output: AC 220-240 V, 50/60 Hz, max continuous output: 2200 W, max output: 2600 W, peak output: 4400 W
• USB-A Output: 5 V, 3 A ; 9 V, 2 A ; 12 V, 2 A ; Max output power per channel: 24 W
• USB-C Output: 5 V, 5 A ; 9 V, 5 A ; 12 V, 5 A ; 15 V, 5 A ; 20 V, 5 A ; 28 V, 5 A (EPR) ; Max output power per channel: 140 W
• SDC and SDC Lite Output: SDC: 9-27 V, max current: 10 A, max output power: 240 W ; SDC Lite: 9-27 V, max current: 10 A, max output power: 240 W

Input Specifications

• AC Input: AC 220-240 V, 1200 W (recharging), 2200 W (Bypass mode)
• SDC and SDC Lite Input: SDC: DC 32-58.4 V, max 400 W, 8 A ; SDC Lite: DC 32-58.4 V, max 400 W, 8 A

Battery

• Cell Chemistry: LFP (lithium ferrophosphate)
• Cycle Life: Maintains over 70% capacity after 4000 cycles at 25°C (77°F), recharged in 600W Standard Recharge Mode, and with an output power of 1000 W.

Operating Temperature

• Power Supply Temperature: -10° to 45°C (14° to 113°F)
• Recharging Temperature: 0° to 45°C (32° to 113°F)
• Storage Temperature: -10° to 45°C (14° to 113°F)
