Garmin Tread Audio System with Subwoofer
Description
- Options for audio sources include AM/FM, AUX and BLUETOOTH® technology.
- The built-in speaker LEDs let you control and even sync colors to your music.
- Enjoy the flexible setup designed for any side-by-side or other off-road vehicle.
- Pairs with the Tread® app on your compatible smartphone or Tread® device to display music and settings.
- The rugged design helps withstand bumpy rides and weather conditions, so your music never skips a beat.
- A wireless remote is included for convenient control.
RUGGED DESIGN
The IP67 design is built to withstand dust, water and weather conditions, so your music will keep playing through rough terrain.
FULL AUDIO SYSTEM
Get everything you need for music: two 6.5” XS-LED tower speakers, the Tread audio box with LED controller and a wireless remote.
MULTIPLE AUDIO SOURCES
Enjoy quality audio from multiple sources, including AM/FM radio, AUX and even BLUETOOTH.
CUSTOM LED SPEAKERS
Choose from thousands of colors for your speakers. You can even sync your speakers to pulse to your music. When paired with your Tread navigator (sold separately), you can sync to your vehicle speed, or match your vehicle’s marker on the map for group rides.
WIRELESS REMOTE
Control your music with the included wireless remote that controls volume, track and audio source.
Easy-to-use audio.
PAIR WITH TREAD APP
Pair with the Tread app on your compatible smartphone for full control, and see a display showing music settings.
PAIR WITH TREAD DEVICE
Pair with any rugged Tread all-terrain navigation (sold separately) device to control audio, show music settings and more.
FLEXIBLE SETUP
A universal design is built for any side-by-side or off-road powersport vehicle.
Tread Audio Bundles
AUDIO SYSTEM PLUS 2 MORE SPEAKERS
More speakers means more music. This bundle includes four speakers, the stereo black box with LED controller and one wireless remote.
AUDIO SYSTEM PLUS SUBWOOFER
Bring the rumble with this bundle, which includes two speakers, a subwoofer with RGB LED lighting, the stereo black box with LED controller and one wireless remote.

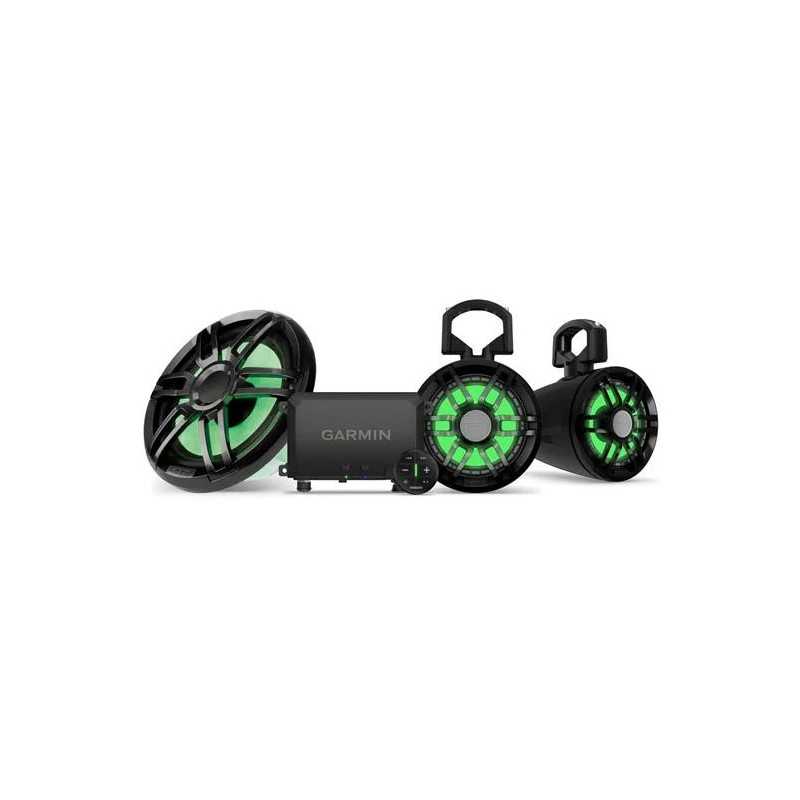

IN THE BOX
Tread Audio Box with LED controller
Two 6.5" XS-LED tower speakers with tube mounts
Fusion® XS series 10” 600-Watt subwoofer with RGB LED lighting (no enclosure)
Wireless remote
Wiring (tower speakers only)
Documentation
Audio Box
Weight 997 g (2.2 lbs)
Physical Dimensions (LxWxH) 210 mm x 130 mm x 55 mm (8.27" x 5.12" x 2.165")
Water and dust rating IP67
Input voltage 8 to 14.4 Vdc
Current (max) 40 A
Current (muted) less than 650 mA
Operating temperature range -4° F to 158° F (-20° to 70° C)
Storage temperature range -40° F to 185° F (-40° to 85° C)
Compass safe distance 203 mm (8")
BLUETOOTH wireless range up to 10 m (30 ft)
ANT wireless range up to 10 m (30 ft)
Fuse 15 A mini-blade type
Peak power (Watts) Four 200 W per channel
RMS power (Watts) Four 100 W RMS at 14.4 Vdc input, 4 ohm
Warranty 1 year
Speakers
Weight 2.49 kg (5.5 lbs)
Physical Dimensions 177 mm x 233 mm (6.97" x 8.78")
Water and dust rating IP67
Operating temperature range 32° - 122° F (0° to 50° C)
Speaker size 6.5"
Peak power (Watts) 200 W per speaker
RMS power (Watts) 50 W
Sensitivity (1 W/1 m) 91 db
Frequency response 80 Hz - 18kHz
Nominal impedance 4 ohms
Recommended amplifier power (RMS) 20 - 150 W
LED lighting yes (RGB)
LED supply voltage 10.8 - 16 Vdc
LED load current @ 14.4 VDC 150 mA
Voice coil diameter 30 mm (1.18")
Cone material polypropylene (PP) cone with cloth surround
Tweeter type aluminum dome
Supported roll bar sizes 33.4 mm (1.31") to 50.8 mm (2.00") outer diameter
Warranty 1 year
Wiring 3 m
