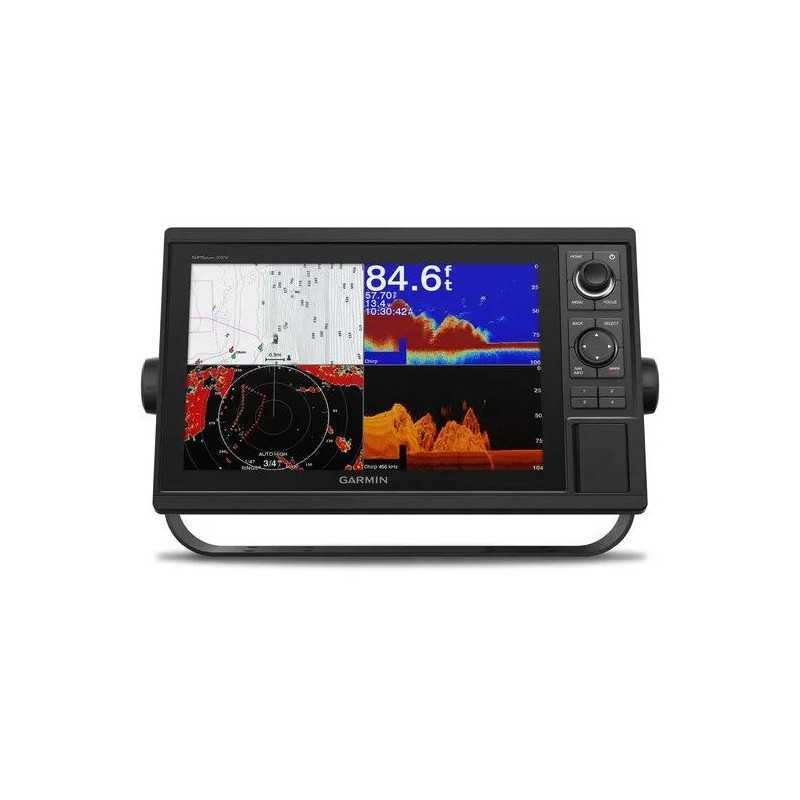

Garmin GPSMAP 1242xsv with GT52HW-TM Transducer

• 12” color display with keypad interface and multifunction control knob
• Includes GT52-TM transducer for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (also available without transducer)
• Preloaded U.S. LakeVü g3 maps and BlueChart® g3 charts feature Navionics® data and Auto Guidance¹ technology
• High-sensitivity internal 10 Hz GPS and GLONASS receiver
• Supports Panoptix™ all-seeing sonar, which includes Panoptix LiveScope™ sonar (transducers sold separately)

Experience an advanced all-in-one solution with our 12” GPSMAP 1242xsv keyed combo. A GT52-TM transducer is included for Garmin CHIRP sonar and CHIRP ClearVü and CHIRP SideVü scanning sonars (also available without transducer). There’s also built-in support for Panoptix all-seeing sonar, which includes Panoptix LiveScope sonar and a wide range of other transducers (sold separately). Features include a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.

Complete Network Sharing

Garmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Plus, there’s NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS and other sensors.

Built-in Sonar Capabilities

Right out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. GPSMAP 1242xsv comes with built-in Garmin 1 kW CHIRP sonar along with CHIRP ClearVü and CHIRP SideVü scanning sonars. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).

Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.

Preloaded with Exceptional Garmin Cartography

LakeVü g3 inland maps and BlueChart® g3 coastal charts provide industry-leading coverage, clarity and detail with integrated Garmin and Navionics® data and Auto Guidance1 technology. LakeVü g3 and BlueChart g3 include Auto Guidance1, which uses your desired depth and overhead clearance to calculate routes and provide a suggested path to follow. LakeVü g3 provides coverage on more than 17,000 lakes with up to 1’ contours. BlueChart g3 also includes NOAA raster cartography, available as a free downloadable feature via the ActiveCaptain® app. Additionally, they both offer easy-to-use features such as Depth Range Shading and Shallow Water Shading, which let you view your target depth to avoid running aground.

Upgrade to Our Best Maps on the Water

Accessory map purchases, such as LakeVü g3 Ultra or BlueChart® g3 Vision, add even more features and detail to your maps and charts. LakeVü g3 Ultra and BlueChart g3 Vision add high-resolution relief shading, which provides an easy-to-interpret, clearer view of bottom structure than contour lines alone — plus many other chart and map-enhancing features.

Built-in ANT® Connectivity

Enjoy built-in ANT wireless connectivity directly to our quatix® marine watches, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB® action camera from the chartplotter.

Engine Connectivity

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

The Ultimate Connected Boating App

Built-in Wi-Fi® connectivity gives you access to the free all-in-one ActiveCaptain® app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.

Heading, Position Refreshed 10 Times per Second

Fast, responsive built-in 10 Hz GPS and GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.

Quickdraw Contours to Create Your Own HD Maps

Instantly create personalized HD fishing maps on screen with 1’ contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on our Garmin Connect™ online network.

Built-in SailAssist Features

To help you gain a wind-maximizing competitive edge, your chartplotter features a prerace guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.

GPX Waypoints Transfer

If you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.

IN THE BOX

• GPSMAP 1242xsv chartplotter
• GT52HW-TM transducer
• Power/data cable
• NMEA 2000 T-connector
• NMEA 2000 drop cable (2 m)
• Transducer
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation

General

DIMENSION 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm)

INPUT Keyed

DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.2 x 16.3 cm; 30.7 cm diagonal)

DISPLAY RESOLUTION 1280 x 800 pixels

DISPLAY TYPE WXGA, NP

WEIGHT 5.2 lbs (2.34 kg)

WATERPROOF IPX7

MOUNTING OPTIONS Bail or flush

Maps & Memory

ACCEPTS DATA CARDS 2 SD™ cards

WAYPOINTS 5000

TRACK POINTS 50,000

TRACKS 50 saved tracks

NAVIGATION ROUTES 100

Sensors

HAS BUILT-IN RECEIVER YES

RECEIVER 10 Hz

NMEA 2000 COMPATIBLE YES

NMEA 0183 COMPATIBLE YES

GPS YES

GLONASS YES

GALILEO YES

SUPPORTS WAAS YES

Built-in Maps

BLUECHART (COASTAL) YES

LAKEVU (INLAND) YES

(SOUNDER) TIDE TABLES YES

Optional Map Support

LAKEVÜ G3 YES

LAKEVÜ G3 ULTRA YES

GARMIN NAVIONICS+™ YES

GARMIN NAVIONICS VISION+™ YES

(SOUNDER) TOPO YES

STANDARD MAPPING YES

GARMIN QUICKDRAW CONTOURS YES

RASTER CHART SUPPORT YES

Chartplotter Features

SMART MODE COMPATIBLE YES

AIS YES

DSC YES

SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS YES

GSD BLACK BOX SONAR SUPPORT YES

GCV BLACK BOX SONAR SUPPORT YES

ACTIVECAPTAIN® COMPATIBLE YES

GRID (GARMIN REMOTE INPUT DEVICE) COMPATIBLE YES

WIRELESS REMOTE COMPATIBLE YES

SAILING FEATURES YES

Sonar Features & Specifications

DISPLAYS SONAR YES

POWER OUTPUT 1 kW

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVÜ built-in 260/455/800/1000/1200 kHz

(SOUNDER) SIDEVÜ built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR YES

LIVESCOPE YES

Connections

NMEA 2000 PORTS 1

CONNECTIONS NMEA0183 INPUT PORTS 1

NMEA 0183 INPUT (TX) PORTS 1

VIDEO INPUT PORTS 1 (BNC composite)

GARMIN MARINE NETWORK PORTS 2

12-PIN TRANSDUCER PORTS 1

BLUETOOTH® CALLING YES

ANT+ (CONNECTIVITY) YES

GARMIN WI-FI NETWORK (LOCAL CONNECTION) YES

Electrical Features

POWER INPUT 10 to 32 Vdc

TYPICAL CURRENT DRAW AT 12 VDC 2.2 A

MAXIMUM CURRENT DRAW AT 12 VDC 2.9 A

MAXIMUM POWER USAGE AT 10 VDC 34.8W
