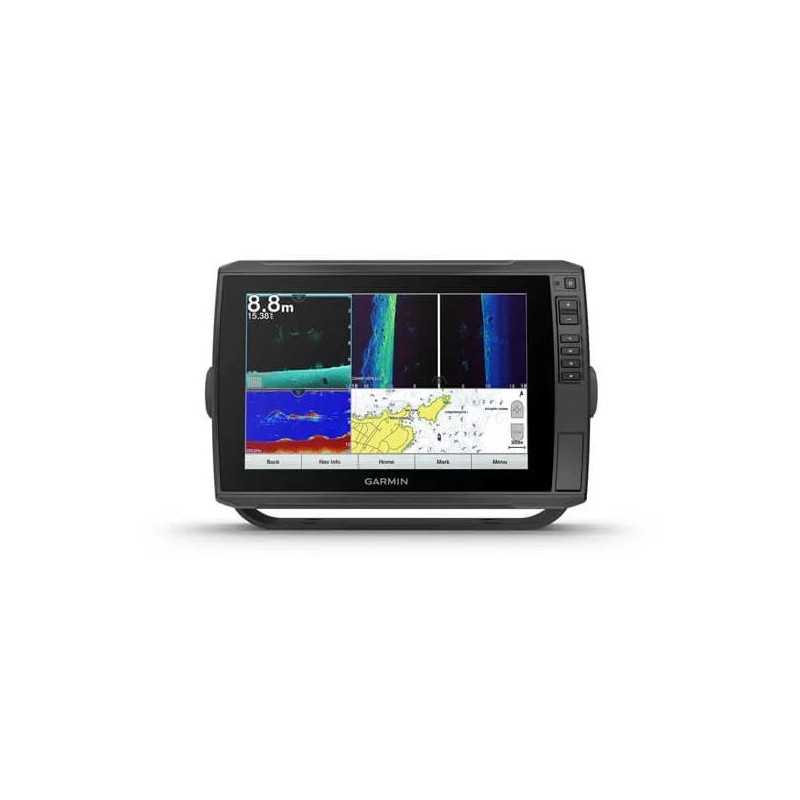

Garmin ECHOMAP Ultra 102sv without Transducer

• The keyed-assist 10 inch touchscreen puts fishfinding know-how at your fingertips.
• See crisp images of structure and fish in stunning detail.
• Navigate confidently with optional BlueChart® g3 charts and LakeVü™ g3 maps.
• Manage your marine experience from nearly anywhere with the ActiveCaptain® app.
• Connect your boat to share data, sonar and charts with your other compatible devices.
• Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

LIVESCOPE™ SONAR SUPPORT

ECHOMAP Ultra supports a variety of Garmin transducers (sold separately), including LiveScope all-seeing live sonar.

BUILT-IN UHD SONAR

The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.

ADD CHARTS

Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts with integrated Navionics® data and Auto Guidance2 technology.

QUICKDRAW CONTOURS

Create personalised fishing maps on-screen with 1 foot contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app.

NETWORK CAPABLE

If you have multiple compatible ECHOMAP Ultra 10” and 12” units or ECHOMAP Plus or UHD 7” and 9” units on your boat, you can share information — such as sonar, user data and charts — among them.

NMEA 2000® NETWORK COMPATIBILITY

Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.

ACTIVECAPTAIN APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more.

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.

TAKE IT WITH YOU

Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.

IN THE BOX

• ECHOMAP Ultra 102sv with worldwide basemap
• Power/data cable
• Tilt mount with quick release cradle
• 8-pin transducer to 12-pin sounder adapter cable
• Flush mount
• Protective cover
• Hardware
• Documentation

General

DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm)

TOUCHSCREEN YES

INPUT Touchscreen with Keyed Assist

DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal)

DISPLAY RESOLUTION 1280 x 800 pixels

DISPLAY TYPE WXGA, IPS

WEIGHT 4.0 lbs (1.8 kg)

WATERPROOF IPX7

MOUNTING OPTIONS Bail or flush

Maps & Memory

ACCEPTS DATA CARDS 2 microSD cards

WAYPOINTS 5000

TRACK POINTS 50,000

TRACKS 50 saved tracks

NAVIGATION ROUTES 100

Sensors

HAS BUILT-IN RECEIVER YES

RECEIVER 10 Hz

NMEA 2000 COMPATIBLE YES

NMEA 0183 COMPATIBLE YES

GPS YES

SUPPORTS WAAS YES

Built-in Maps

(SOUNDER) TIDE TABLES YES

Optional Map Support

LAKEVÜ G3 YES

LAKEVÜ G3 ULTRA YES

GARMIN NAVIONICS+™ YES

GARMIN NAVIONICS VISION+™ YES

(SOUNDER) TOPO YES

STANDARD MAPPING YES

GARMIN QUICKDRAW CONTOURS YES

Chartplotter Features

AIS YES

DSC YES

SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS YES

ACTIVECAPTAIN® COMPATIBLE YES

SAILING FEATURES YES

Sonar Features & Specifications

DISPLAYS SONAR YES

POWER OUTPUT 600 W

TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)

CLEARVÜ built-in 260/455/800/1000/1200 kHz

(SOUNDER) SIDEVÜ built-in 260/455/800/1000/1200 kHz

PANOPTIX™ SONAR YES

LIVESCOPE YES

Connections

NMEA 2000 PORTS 1

CONNECTIONS NMEA0183 INPUT PORTS 1

NMEA 0183 INPUT (TX) PORTS 1

GARMIN MARINE NETWORK PORTS 2 (large connector)

12-PIN TRANSDUCER PORTS 1 LVS sonar; 1 scanning sonar

Electrical Features

POWER INPUT 10 to 32 Vdc

TYPICAL CURRENT DRAW AT 12 VDC 2.8 A

MAXIMUM CURRENT DRAW AT 12 VDC 3.0 A

MAXIMUM POWER USAGE AT 10 VDC 22.4W
