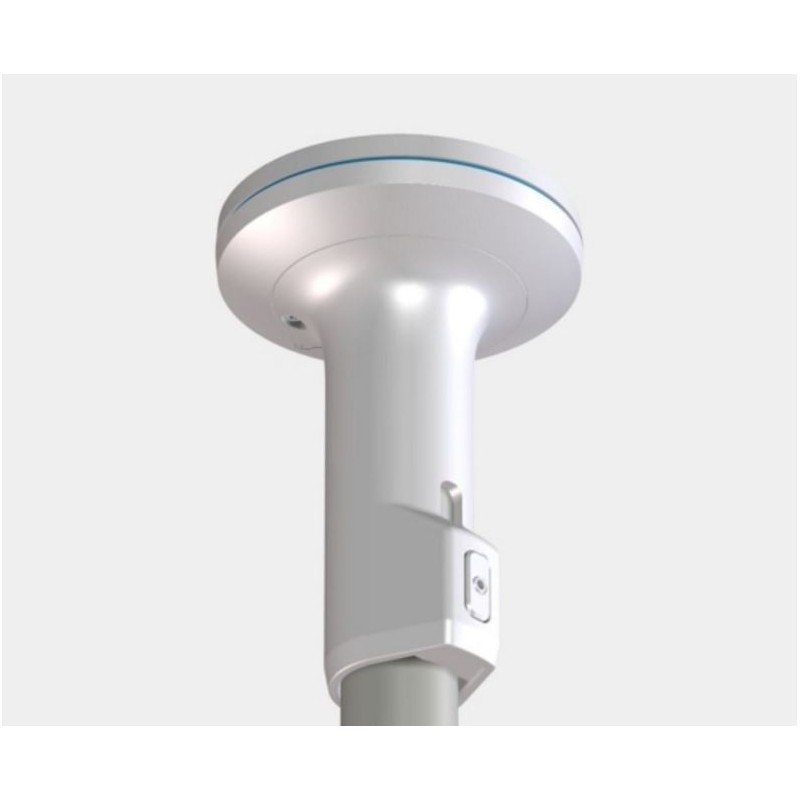

Thrane LT-300 GNSS Receiver (51-100304)

The LT-300 Global Navigation Satellite System (GNSS) receiver, crafted by Lars Thrane A/S, is a top-tier maritime navigation solution.

Performance:

Boasting an accuracy better than 2 meters, the LT-300 GNSS receiver delivers precise positioning. With a rapid output rate of up to 10 Hz, it furnishes essential navigation data like UTC time and date, position, course over ground, ground speed, GNSS satellite details, and magnetic variation, ensuring seamless vessel navigation. Leveraging advanced technology, this 72-channel GNSS receiver can receive and track multiple satellite systems (GPS & GLONASS, GPS & BeiDou), and supports Satellite-Based Augmentation Systems (SBAS) such as EGNOS, WAAS, and MSAS. Built to withstand the harsh maritime environment, it operates flawlessly in temperatures ranging from -40⁰C to +55⁰C (-40⁰F to +131⁰F).

Installation & Navigation:

Effortless to mount on a 1” pole (alternatively, roof-mounting is available), the LT-300 GNSS receiver requires only a single cable for NMEA 0183, NMEA 2000, and power support. Flexible baud rate configuration (4800 or 38400 baud for NMEA 0183) and termination settings (open or short termination for NMEA 2000) cater to diverse installation needs. Additionally, an external PC installation and service software offer optional configuration and maintenance capabilities.

With over 40 years of expertise embedded in its design, the LT-300 GNSS receiver guarantees exceptional performance and reliability.

Key Features:

• High-performance GNSS receiver with hot start capability
• Outputs UTC time and date, position, satellite information, ground speed, course over ground, and magnetic variation
• 72-channel GNSS receiver supporting GPS/GLONASS/BeiDou satellites with SBAS correction
• Simultaneous support for NMEA 0183 and NMEA 2000
• Configurable NMEA 0183 sentences and data rate
• Each unit undergoes functional testing prior to shipment
• Globally certified for maritime applications

System Components:

• LT-300 GNSS Receiver
• Pole Mount & Roof Mount
• 10m Cable Multi 8-pin Simple-Cut (M)
• Screw-in Connector NMEA 2000 Micro-C
• A4 Stainless Steel Wood Screws
• Quick Installation Guide
• Safety Instruction Sheet
• Unit Test Sheet

Specifications:

Certification & Standards: CE, IEC 60945, IEC 60950, EN 300440-2, FCC, IC, RCM, RoHS, NMEA 0183, NMEA 2000

Dimensions (with pole mount): 128.0 x Ø 81.6 mm (5.04 x Ø 3.21 in)

Weight (with pole mount): 153 g (0.34 lbs)

Operational Temperature: -40°C to +55°C (-40°F to +131°F)

Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Waterproof Rating: IP67, with humidity tolerance of 95% non-condensing @ 40°C

Communication Interface: 8-pin female connector for NMEA 0183, NMEA 2000, and power

Input Power: 9-40 VDC

Power Consumption: Less than 1W

Load Equivalent Number (LEN): 2

Compass Safe Distance: 0.3 m (1 ft)
