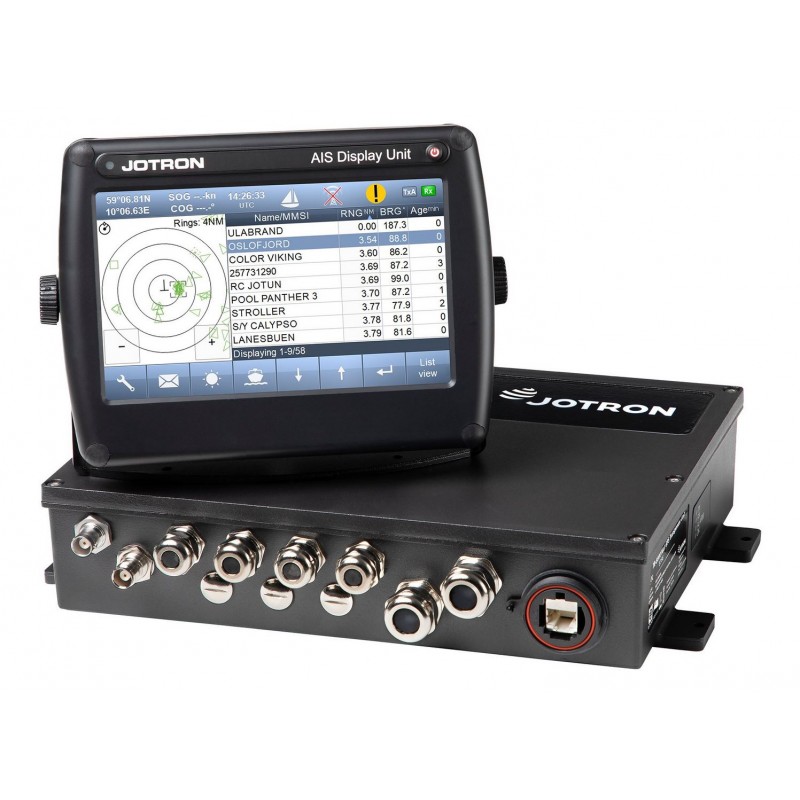

Jotron Tron AIS TR-8000 MkII Class A complete with GPS antenna (103660)

The Tron AIS TR-8000 MkII is an advanced Automatic Identification System (AIS) designed for use on inland waterways. It meets the latest IEC requirements for Bridge Alert Management (BAM) and adheres to the newest AIS Class A standards. The system features separate display and transceiver units, both with a compact design to ensure straightforward installation.

Key features:

• Fully compliant with the latest BAM requirements (IEC 62923-1:201, IEC 62923-2:2018) and AIS standards (IEC 61993-2:2018)

• Approved for use on inland waterways

• Certified by FCC, MED, MER, and ANATEL

• 7-inch high-resolution touch screen with IP54 rating

• Dual display capability

• External interface cables connect inside the transponder unit

• Designed for simple installation and easy retrofit

Standard supply includes:

• Transponder unit

• Display unit

• Mounting bracket for the display unit

• Locking ring for the mounting bracket

• Curled knob for the mounting bracket

• GPS antenna (type: SANAV SA-200)

• Stainless steel stand for the GPS antenna

• 5-meter waterproof RJ45 patch cable

• Quick reference guide

• Power cable for the display unit

• Screwdriver for unlocking terminals

Optional supply:

• VHF antenna

• Pilot cable for TR-8000 display
