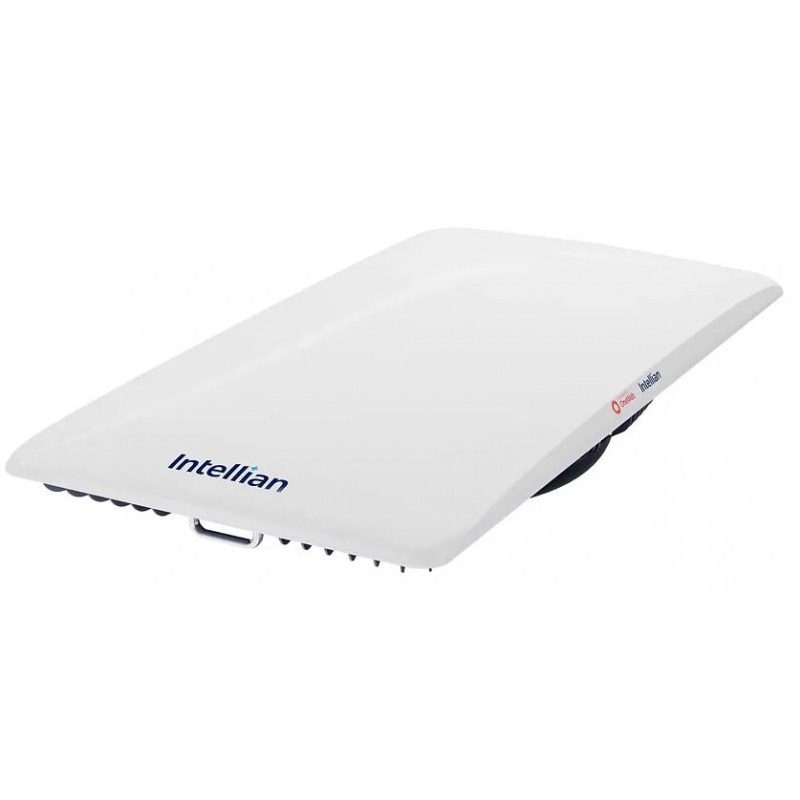

Intellian OW10HM OS-OW10HF-B Half Duplex OneWeb Compact Maritime User terminal

The OW10HM stands as the quintessential Flat Panel UT tailored for both fishing and leisure markets, presenting a compact, lightweight, and sleek design poised to outshine existing connectivity solutions.

Optimized Performance:

Harnessing Intellian’s pioneering antenna design, the OW10HM achieves peak performance within a compact footprint, making it the go-to connectivity solution for SWaP-constrained scenarios. This solution not only meets but exceeds user expectations for maritime applications, delivering unparalleled service levels and user experience.

Customer Network Exchange:

Integral to any OneWeb user terminal setup, Intellian’s Customer Network Exchange (CNX) units provide essential power and data connectivity to the Flat Panel user terminal, along with seamless integration with customer equipment and networks. Tailored CNX variants cater to specific deployment scenarios, including Land Fixed, Maritime, and Land Mobility applications.

Seamless Connectivity:

Distinguished by Intellian’s advanced tracking technology, the OW10HM ensures enhanced connection reliability and availability, even under challenging conditions such as heavy seas and low elevation angles typical of equatorial regions. With minimal loss during scanning, its innovative flat panel technology facilitates smooth handovers, guaranteeing uninterrupted connectivity.

Harsh Environment Performance:

Engineered to excel in demanding environments, the OW10HM operates flawlessly in extreme temperatures ranging from -40 °C to +55 °C (-40 °F to 131 °F). Integrated radar rejection filtering enhances performance in high-interference settings, ensuring reliable broadband services for maritime customers.

Simplified Installation:

The OW10HM’s lightweight and compact design streamline installation, achievable by a single individual. Its universal mount design supports standard maritime mounts, while installation is further simplified through a single coax cable providing combined power and data connectivity between below deck CNX units. Intellian’s mobile app facilitates site survey, automated configuration, and monitoring, further reducing setup time.

Included Components:

OW10HM Outdoor unit

CNX-BB

AC/DC Power Adapter (250W)

Technical Specifications (OW10HM):

Above Deck Unit:

Throughput (peak): DL: 60 Mbps / UL: 10 Mbps

G/T: 9 dB/K

EIRP: +36.6 dBW (Dual Carrier)

Field of View: +/- 55° from Zenith, 360° Azimuth

Size: 56 cm x 45 cm x 12 cm (22” x 17.7” x 4.7”)

Weight: 8 kg (17.6 lb)

Power: 180W (max), 150W (avg)

Ingress: IP66

Operating Temp: -40 °C to +55 °C (-40 °F to 131 °F)

Interface: F-Type connector

Below Deck Units:

CNX-WIFI:

Dimensions: 21 cm x 17 cm x 8 cm (8.2” x 6.7” x 3.1”)

Weight: 0.6 kg (1.3 lb)

Power: 18 W (max), 8 W (avg)

Operating Temp: 0 °C to +40 °C (32 °F to 104 °F)

Data Interface: WiFi-6, 4-port GigE RJ45

Power Input: Universal AC Power (100 – 240VAC)

CNX-RACK:

Dimensions: 44.2 cm x 25 cm x 4.4 cm (19” x 1 RU chassis)

Weight: 6.3 kg (13.9 lb)

Power: 30 W (max), 16 W (avg)

Operating Temp: -25 °C to +55 °C (-13 °F to 131 °F)

Data Interface: 8-port GigE RJ45, 1x USB (Type-A), 1x NMEA0183 / 1x NMEA2000

Power Input: Universal AC Power, Dual 450 W Power Modules, 100 – 240 VAC (CNX-RACK-AC)
