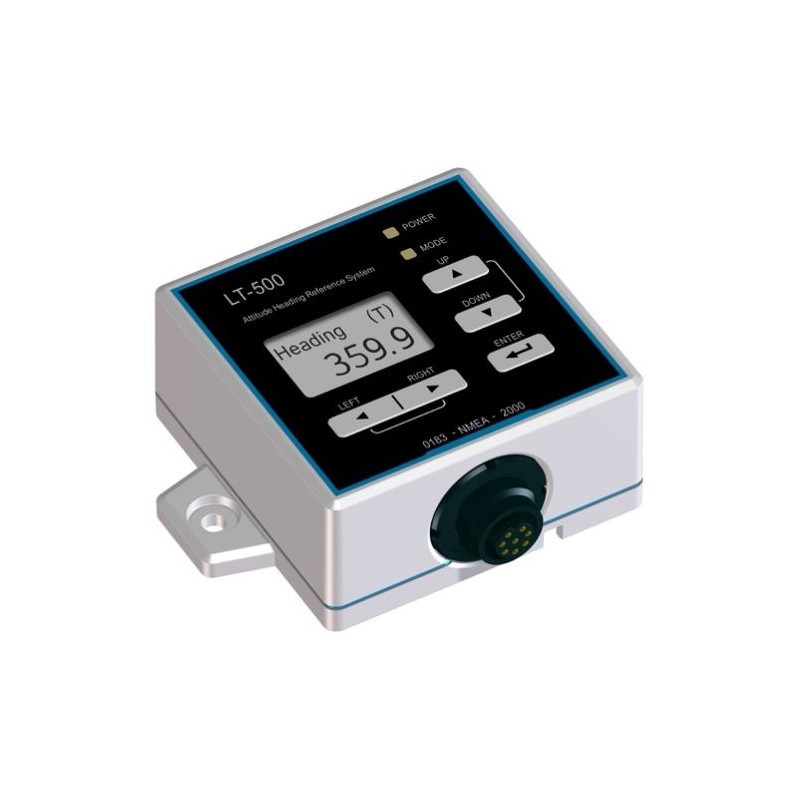

Thrane LT-500 Attitude Heading Reference System (51-100294)

Introducing the LT-500 Attitude Heading Reference System (AHRS), a cutting-edge maritime navigation compass and heading sensor crafted by Lars Thrane A/S. Designed to cater to both recreational and professional maritime sectors, the LT-500 AHRS unit surpasses global standards and certifications for maritime navigation equipment.

952.93 $
Tax included

774.74 $ net price (non-EU countries)

Karol Łoś
Product Manager
English / Polski
+48603969934
+48507526097
[email protected]

Description

Introducing the LT-500 Attitude Heading Reference System (AHRS), a cutting-edge maritime navigation compass and heading sensor crafted by Lars Thrane A/S.

Designed to cater to both recreational and professional maritime sectors, the LT-500 AHRS unit surpasses global standards and certifications for maritime navigation equipment.

Performance:

Compact yet powerful, the LT-500 AHRS boasts 11 precision sensors, employing sensor fusion and Kalman filtering technology to deliver real-time data on true heading, roll, pitch, air pressure, and temperature with remarkable precision and resolution. Pioneering features include:

  • Kalman filtering
  • Calculation of magnetic variation via the World Magnetic Model (WMM)
  • Compensation for soft and hard iron deviations
  • Built-in magnetometer calibration algorithm

Crafted to withstand the rigors of sea life, the LT-500 AHRS operates flawlessly within temperatures ranging from -25⁰C to +55⁰C (-13⁰F to +131⁰F).

Installation & Navigation:

Mounting the LT-500 AHRS is a breeze, supporting NMEA 0183, NMEA 2000, and power via a single cable. Its versatility allows installation in any orientation without sacrificing performance. Equipped with a user-friendly interface comprising a display and control buttons, installation and service are hassle-free. Navigation data is readily available via the interface, while automatic leveling (pitch and roll) streamlines installation. The built-in magnetometer calibration ensures accurate navigation data output. Additionally, an external PC installation and service software are available for optional configuration and maintenance.

Key Features:

  • Attitude Heading Reference System with 11 precision sensors
  • Comprehensive data output including true heading, magnetic heading, deviation, variation, roll, pitch, air pressure, and temperature
  • User-friendly display and control buttons for easy installation and service
  • Simultaneous support for NMEA 0183 and NMEA 2000 data
  • Configurable NMEA 0183 sentences and data rates
  • Mountable in any orientation without compromising performance
  • Factory calibrated and functionally tested over temperature prior to shipment
  • Globally certified for maritime use



Included in the System:

  • LT-500 AHRS Unit
  • 10m Cable Multi 8-pin Simple-Cut (M)
  • Screw-in Conn. NMEA 2000 Micro-C
  • A4 Stainless Steel Wood Screws (2)
  • Quick Installation Guide
  • Safety Instruction Sheet
  • Unit Test Sheet



Specifications:

Weight: 104 g (0.23 lbs)

Dimensions: 91.6 x 75.3 x 32.7 mm (3.61 x 2.96 x 1.29 in)

Operational Temperature: -25°C to +55°C (-13°F to +131°F)

Storage Temperature: -30°C to +80°C (-22°F to +176°F)

Waterproof Rating: IP42

Warranty: 2 years, maintenance-free

Certifications & Standards:

CE, IEC 60945, IEC 60950, FCC, IC, RCM, RoHS

NMEA 0183, NMEA 2000

Equipment Class: Protected, according to IEC 60945
