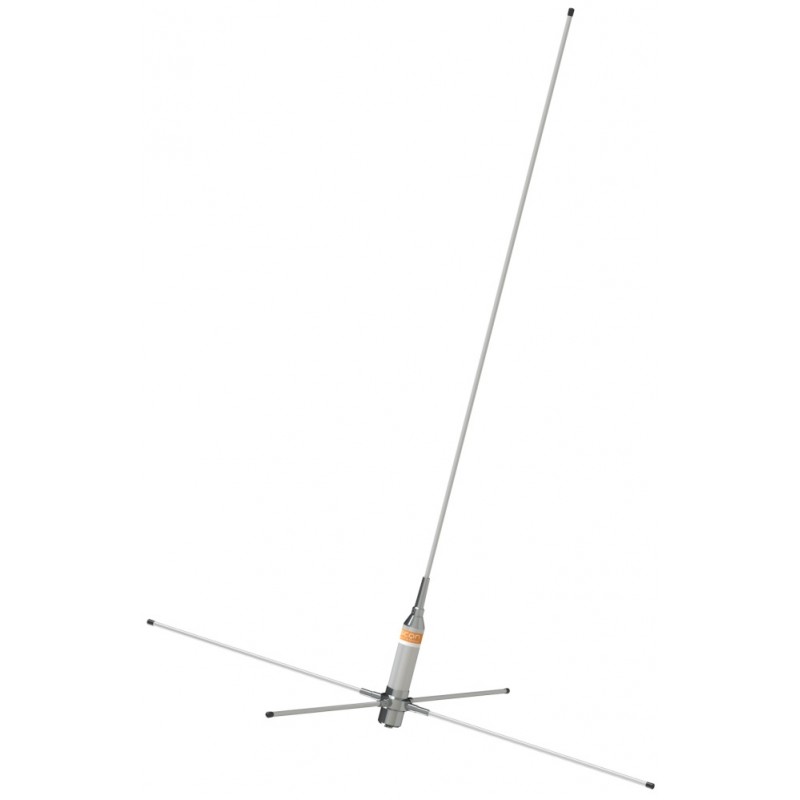

Scan Antenna VHF96 6 dB VHF Fibreglass Antenna 1.2 m, bag (11096-001)

Product Details

• Heavy-duty antenna designed for commercial and fishing vessels.
• Simple installation directly onto a 27 mm pole or mast.
• Full 5/8 λ Ground Plane Antenna design for enhanced performance.
• Provides a full omni-directional radiation pattern.
• No ground plane required for operation.
• Factory-tuned to the International Maritime VHF Band.

Packaging Information

• Type: Polybag
• Size: Approx. 1.3 m
• Weight: Approx. 1.5 kg

Electrical Specifications

• Frequency: 156 - 162.5 MHz (International Maritime VHF Band)
• Bandwidth: 6.5 MHz
• Impedance: 50 ohms
• VSWR: < 1.5:1
• Polarisation: Vertical
• Gain: 6 dB (Marine), 3 dBd, 5.1 dBi
• Max Input Power: 250 W
• Antistatic Protection: Direct ground

Mechanical Specifications

• Color: White and chrome
• Height: Approx. 1215 mm
• Weight: 1.5 kg
• Mounting: Suitable for Ø 27 mm poles only (pole not supplied)
• Materials: PU-painted glass fiber, copper, nylon, and chrome-plated solid brass
• Operating Temperature: -55°C to +70°C (compliant with IEC 60068-2-1 and IEC 60068-2-2 standards)
• Connector: UHF-female
• Cable: No cable supplied
• Ingress Protection: IP24

Ordering Information

• Part Number: 11096-001
