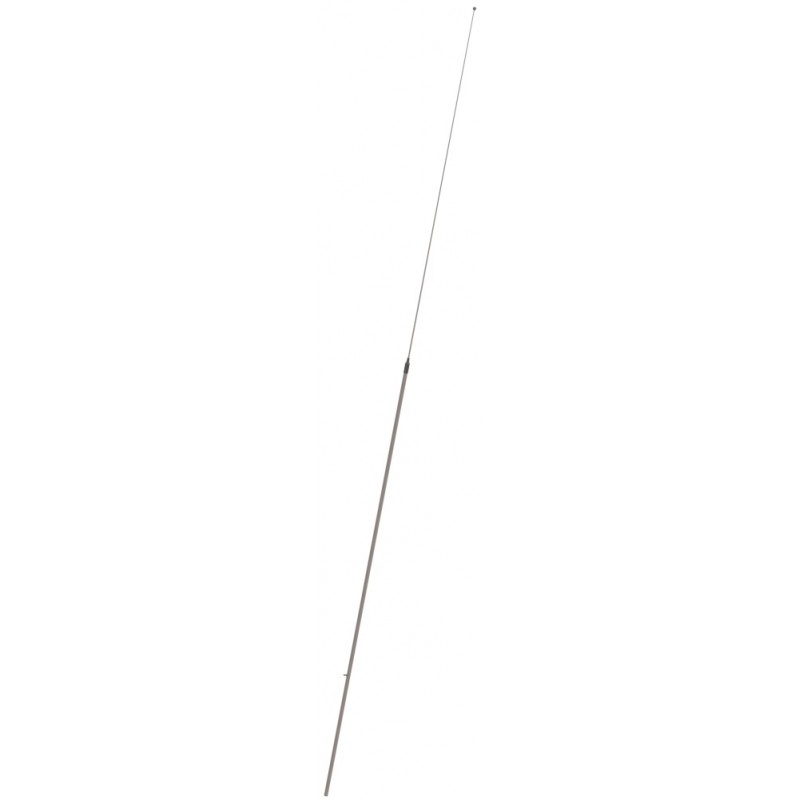

Scan Antenna HF850 TX/RX 8 m two-part LF/HF Fibreglass Antenna, Without brackets (13802-001)

Details

• High-quality 8 m HF antenna specifically designed for professional use.
• Ideal for GMDSS installations, ensuring reliable maritime communication.
• Rugged design for durability and long-term performance.
• Features chrome-plated solid brass joints for robust and secure connections.
• Designed for rail mounting and side-fed via open single wire for optimal functionality.
• Provides a full omni-directional radiation pattern for complete coverage.

Packaging Information

• Type: Polybag
• Size: 4800 mm
• Weight: Approx. 7.0 kg

Electrical Specifications

• Frequency: 1.4–30 MHz (MF and HF)
• Polarization: Vertical
• Max. Input Power: 1200 W PEP
• Static Capacitance: 100 pF
• Insulation Resistance: 10 GOhm
• Electric Length: 6820 mm

Mechanical Specifications

• Color: White
• Height: 8.2 m
• Weight: 6.8 kg
• Diameter: Ø 40 to Ø 5 mm
• Mounting: Rail Bracket Kit (Large) P/N 10000-163 (not supplied)
• Mounting Place: Suitable for rail or pole mounting (Ø 30–90 mm)
• Mounting Instruction: Included with the product
• Materials: PU-painted heavy-duty fiberglass tubes and chromed solid brass for superior durability
• Survival Wind Speed: Resistant to winds up to 55 m/s (125 mph)
• Operating Temperature: Operates in -55°C to +70°C conditions (IEC 60068-2-1 and IEC 60068-2-2 compliant)
• Connector: Screw terminal for secure wiring
• Cable: Not supplied (use open single wire)
• Serial No.: Clearly displayed on the product label

Ordering Information

• P/N: 13802-001 (Antenna without brackets)
